Description

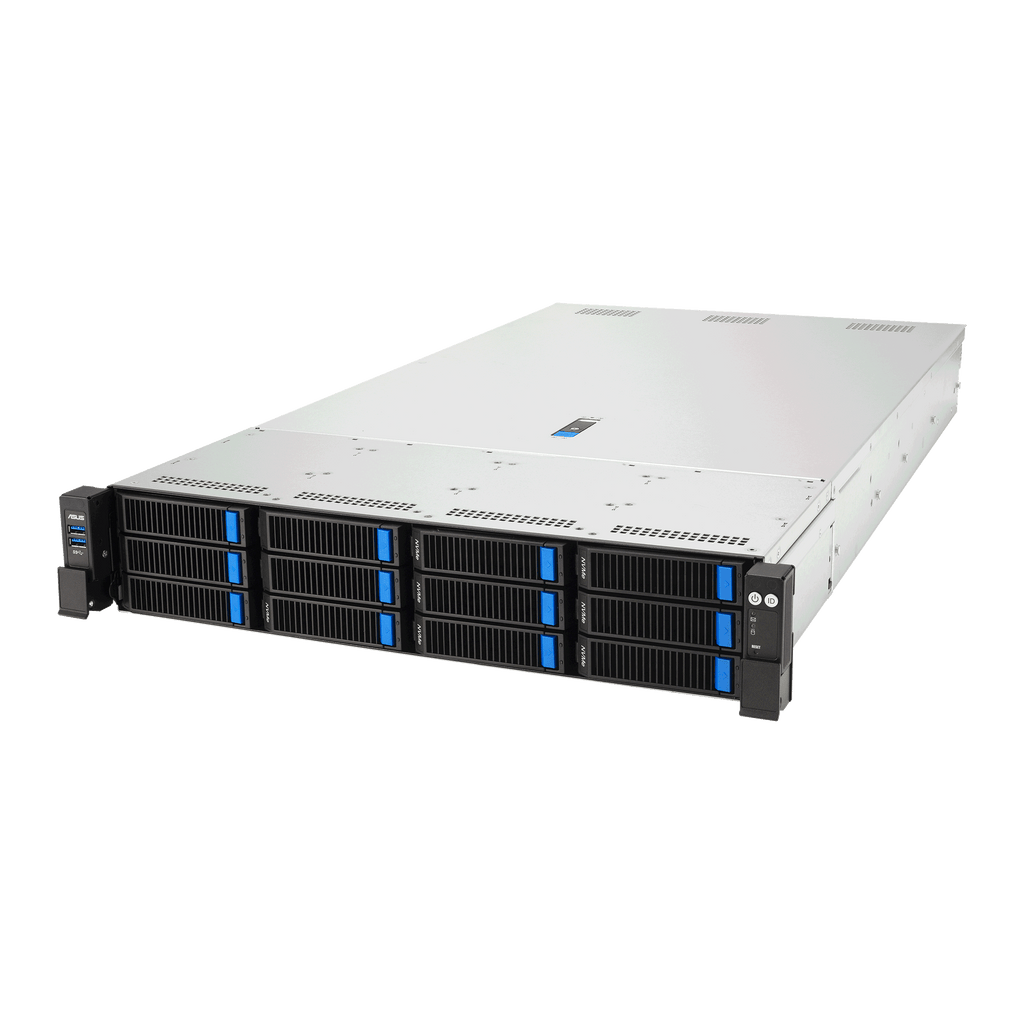

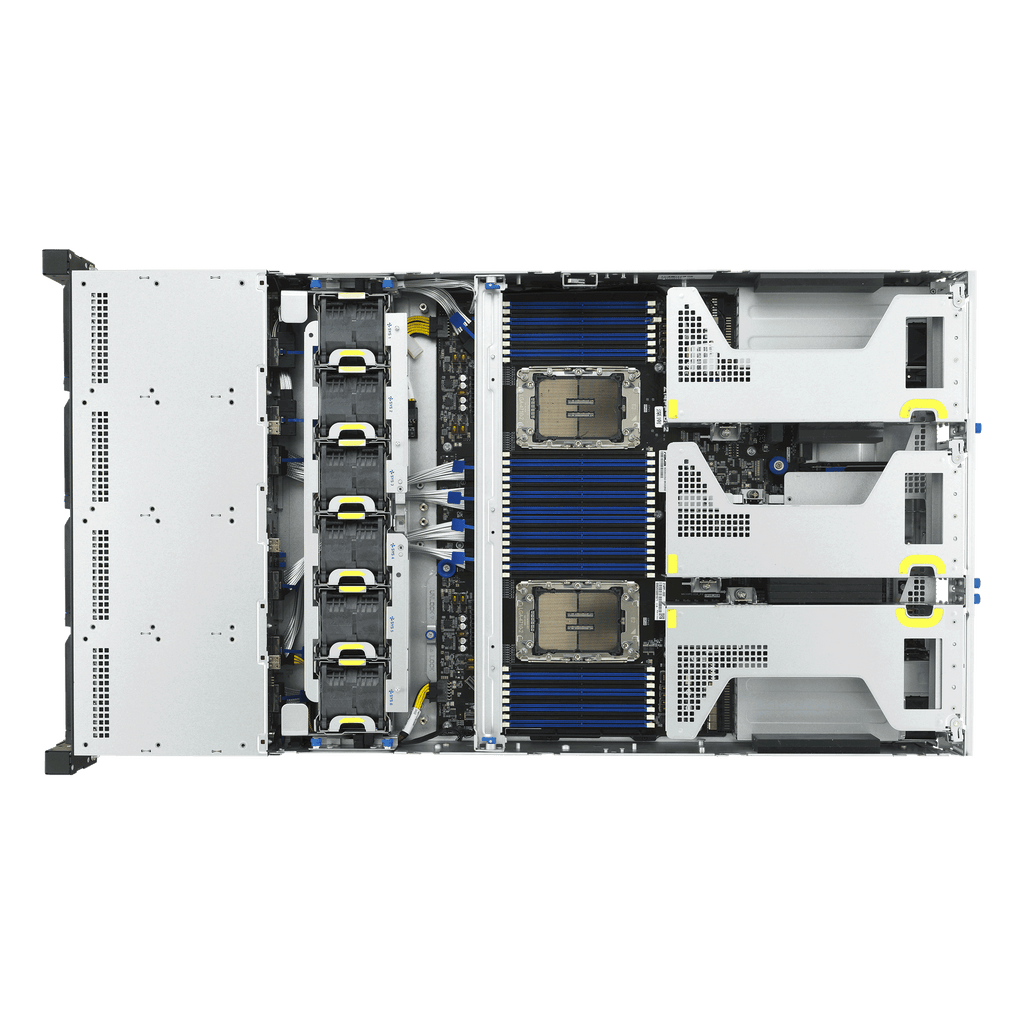

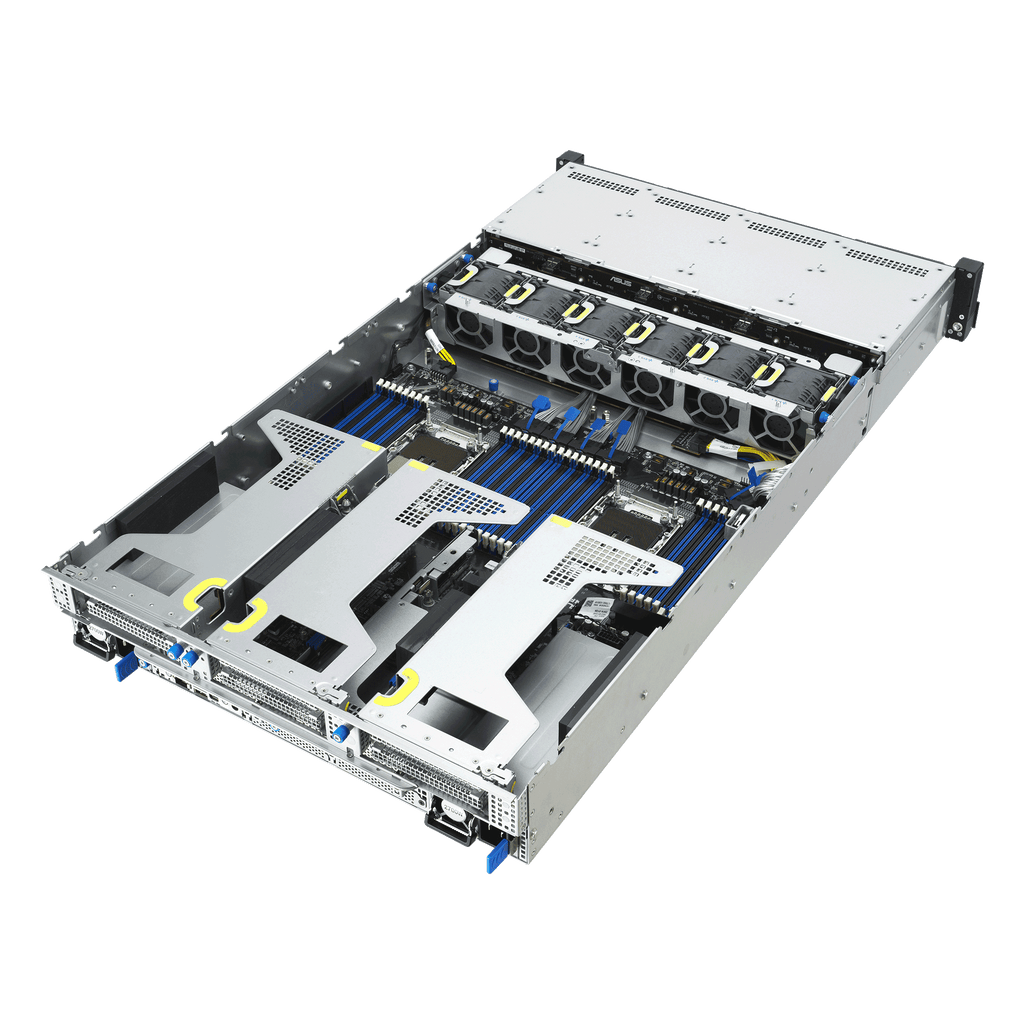

The ASUS RS720-E12-RS12U-27KW10G is a next-generation 2U rackmount server engineered for intensive data center workloads, AI computing, and virtualization. Powered by dual Intel® Xeon® 6 Scalable processors (Sierra Forest and Granite Rapids), it delivers robust compute power with up to 32 DDR5 DIMM slots supporting speeds up to 6400 MHz RDIMM or 8000 MHz MRDIMM.
This server is GPU-optimized with support for up to three dual-slot GPUs, providing the flexibility needed for HPC and AI inference workloads. Featuring 12 hot-swap 3.5-inch bays for NVMe, SATA, or SAS drives, the RS720-E12-RS12U-27KW10G ensures scalable, high-speed storage expansion.
With 10 PCIe 5.0 slots, dual OCP 3.0, and redundant 2700W Titanium-rated PSUs, this system offers superior I/O flexibility and high energy efficiency. The server also integrates advanced management capabilities through ASUS ASMB12-iKVM and ASUS Control Center (Classic) for remote administration.
Built on the DC-MHS modular architecture, the RS720-E12 series provides seamless integration and adaptability for modern enterprise environments demanding both performance and scalability.
| Category | Specification |
|---|---|
| Model | ASUS RS720-E12-RS12U-27KW10G |
| Form Factor | 2U Rackmount Server |
| Processor Support | Dual Intel® Xeon® 6 Scalable Processors (Sierra Forest / Granite Rapids) |
| CPU TDP | Up to 350W |
| Chipset / Core Logic | DC-MHS Architecture |
| Memory Slots | 32x DDR5 DIMM (8-channel per CPU, 16 per CPU) |
| Memory Type | DDR5 RDIMM up to 6400 MHz or MRDIMM up to 8000 MHz (1DPC) |
| Maximum Memory Capacity | Up to 4TB |
| GPU Support | Up to 3x Dual-Slot GPUs |
| Expansion Slots | Up to 10x PCIe 5.0 Slots (6x Gen5 x8 or 3x Gen5 x16, 2x Gen5 x16 FHHL, 2x OCP 3.0) |
| Storage Bays | 12x 3.5" Hot-Swap Drive Bays (Supports NVMe/SATA/SAS) |
| M.2 Slots | 2x M.2 (PCIe Gen2 x2 link) |
| Optional RAID / HBA Controllers | ASUS PIKE II 3008-8i / 3108-8i, Broadcom 9500-16i, 9540-8i, 9560-16i, 9670W-24i/16i |
| Network Connectivity | 1x RJ-45 Management LAN Port |
| Graphics | Aspeed AST2600 with 64MB |
| Front I/O Ports | 2x USB 3.2 Gen1 |

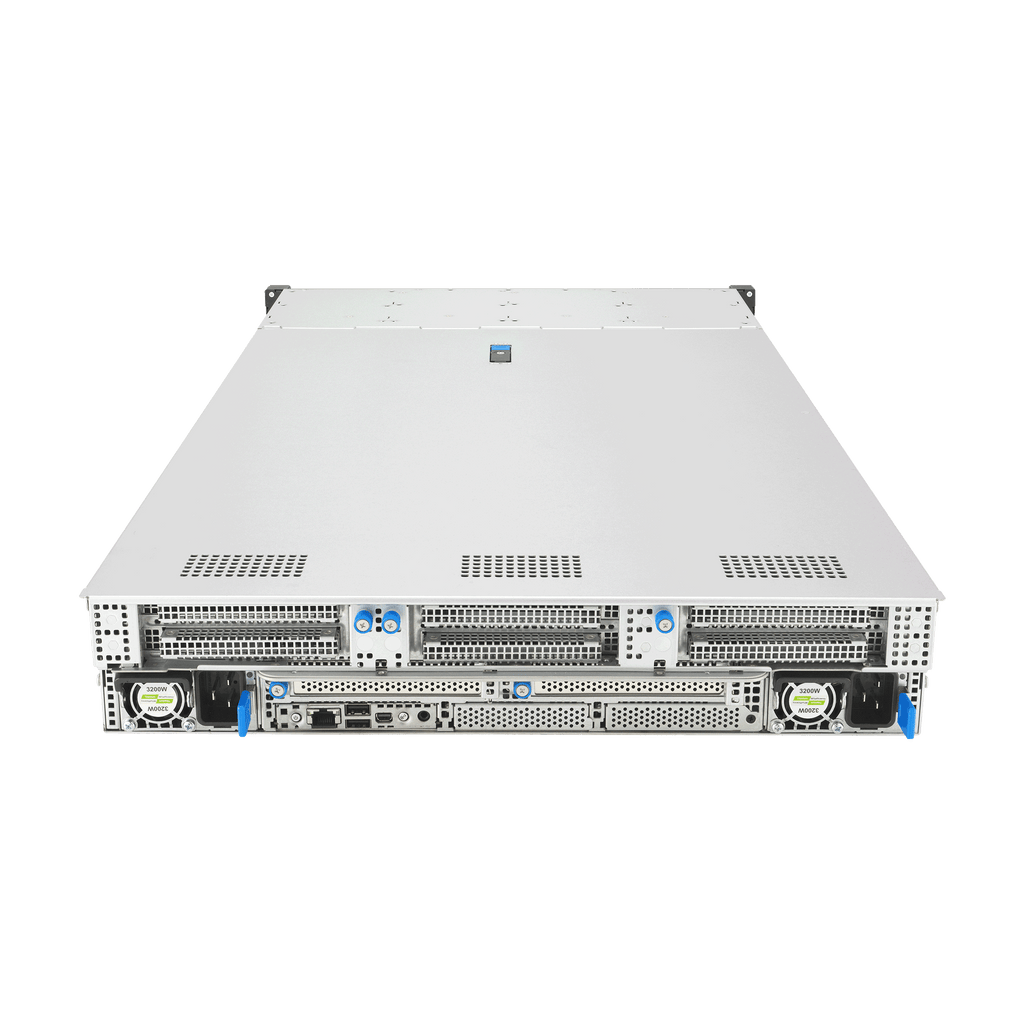

| Rear I/O Ports | 2x USB 3.2 Gen1, 1x Mini-DP, 1x RJ-45 Mgmt LAN, 1x Type-C |
| Management Features | ASUS ASMB12-iKVM, ASUS Control Center (Classic) |
| Power Supply | 1+1 Redundant 80 PLUS Titanium 2700W PSU |
| Dimensions (W x H x D) | 449 x 88 x 830 mm (17.68 x 3.5 x 32.7 in) |
| Net Weight | 18.195 kg (without CPU/DRAM/HDD) |
| Gross Weight | 28.855 kg (with packaging) |
| Operating Temperature | 10°C – 35°C |
| Non-Operating Temperature | -40°C – 70°C |
| Humidity (Non-Condensing) | 20% – 90% |
| Security | PFR FPGA Root-of-Trust, TPM 2.0 |
| Architecture Type | DC-MHS Modular Design |
| Compliance | 80 PLUS Titanium Certified Power Efficiency |
