Description
The ASUS RS720A-E11-RS12E-WOCPU012Z is a powerful 2U rack server optimized for GPU acceleration and high-performance computing. Designed for AI, deep learning, and data center applications, it supports dual AMD EPYC™ 7003 processors with up to 64 cores per socket and up to 32 DIMM slots delivering outstanding compute and memory bandwidth.
This server’s GPU-optimized design accommodates up to four dual-slot GPUs, maximizing parallel computing efficiency. With 12 front hot-swap bays (8 NVMe + 4 SATA/SAS) and nine PCIe 4.0 expansion slots, the RS720A-E11-RS12E delivers exceptional scalability for enterprise storage and networking. Integrated ASMB10-iKVM management, OCP 3.0 for flexible LAN options, and redundant 1600W/2400W 80 PLUS Platinum or Titanium PSUs ensure reliable, energy-efficient performance.
Engineered for both air and liquid cooling configurations, it provides superior thermal management and total cost optimization for modern data centers.
| Category | Details |
|---|---|
| Processor | 2 x Socket SP3 (LGA 4094); AMD EPYC™ 7003/7002 Series; Max TDP 280W |
| Memory | 32 DIMM slots (16 per CPU); Up to 8-channel DDR4 3200/2933 RDIMM/LRDIMM; Max 8 TB |
| Form Factor | 2U Rackmount |
| GPU Support | Up to 4 dual-slot GPUs (GPU SKU); supports latest AI accelerators |
| Expansion Slots | Up to 9 x PCIe 4.0 slots (configurable FHFL/LP/OCP 3.0) |

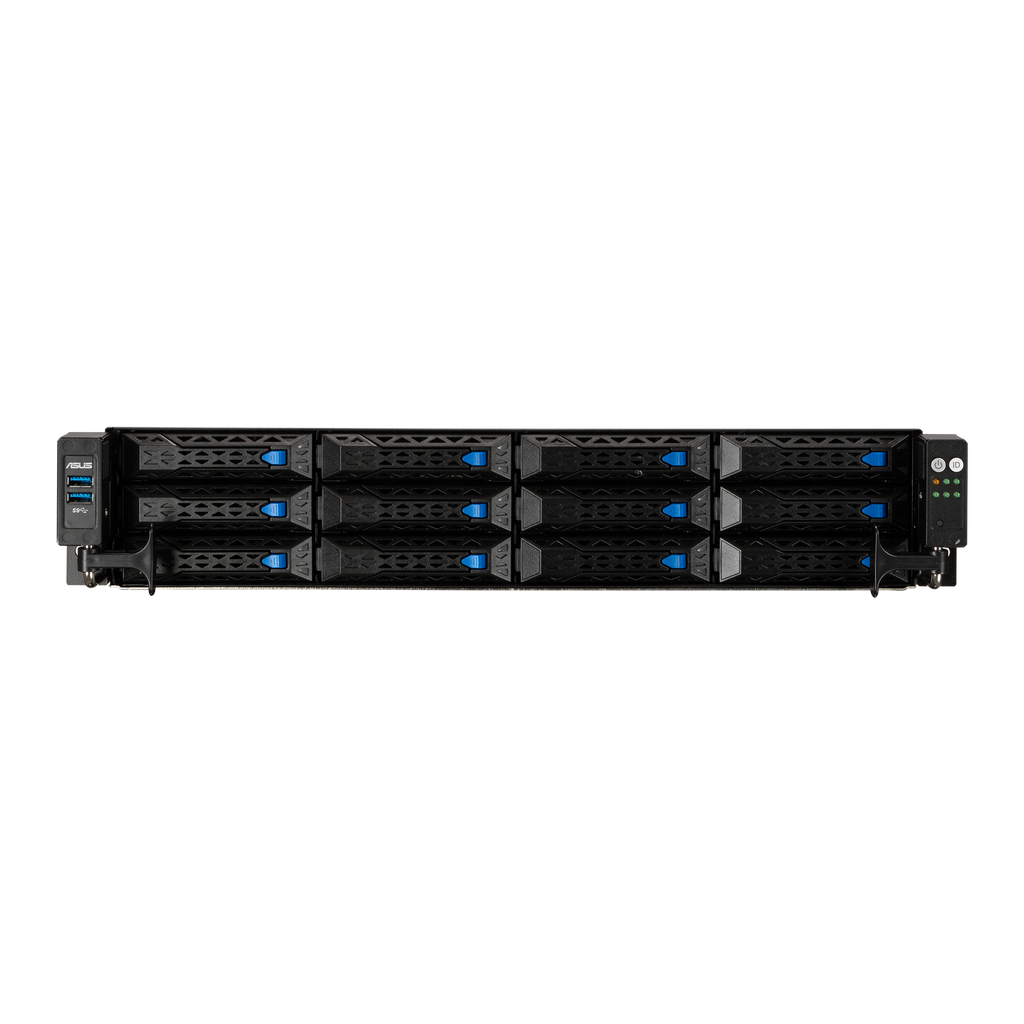

| Storage Bays | 12 x 3.5" hot-swap (8x NVMe/SATA/SAS + 4x SATA/SAS); Optional 2 x 2.5" rear NVMe |
| M.2 Support | 2 x M.2 (2242/2260/2280/22110) SATA/PCIe Gen4 |
| Storage Controller | 12 x SATA 6Gb/s; Optional ASUS PIKE II 3008/3108 or Broadcom MegaRAID 9560-16i |
| Networking Options | Option 1: 4 x 1G LAN (Intel I350-AM4) + Mgmt LANOption 2: 2 x 10G LAN (Intel X710-AT2) + Mgmt LAN |
| Management | ASUS ASMB10-iKVM (ASPEED AST2600); ASUS Control Center Enterprise (optional) |
| Graphics | ASPEED AST2600 with 64 MB VRAM |
| Cooling | 4 system fans; air/liquid cooling compatible |
| Power Supply | 1+1 Redundant 1600W Platinum or 2400W Titanium PSU (for GPU SKU) |
| I/O Ports (Front) | 2 x USB 3.2 Gen1 |

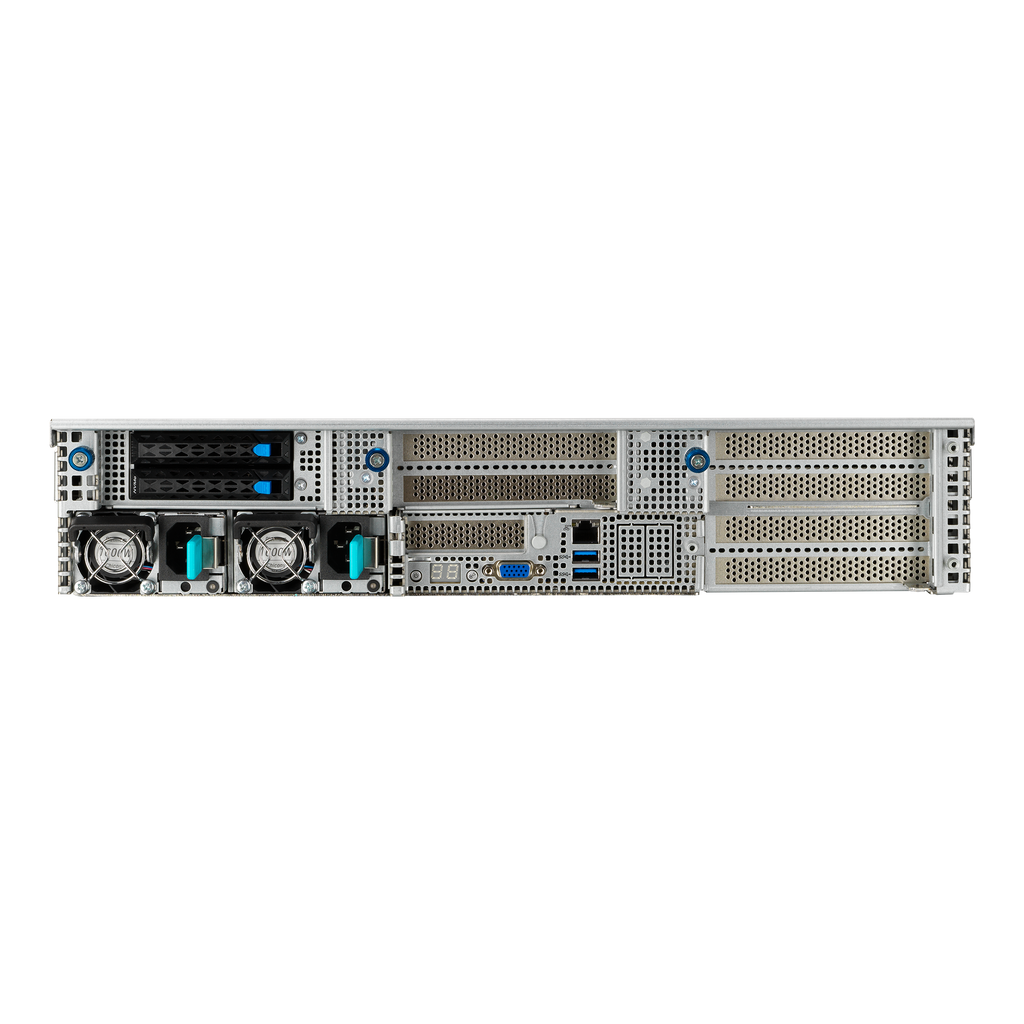

| I/O Ports (Rear) | 2 x USB 3.2 Gen1, 1 x VGA, 1 x RJ-45 Mgmt LAN, 1 x OCP 3.0 |
| Dimensions (W x D x H) | 449 x 840 x 88.1 mm (17.68" x 33.07" x 3.47") |
| Weight | Net: 18.2 kg / Gross: 23.2 kg |
| Operating Temperature | 10°C ~ 35°C |
| Certifications | BSMI, CE, FCC (Class A) |
| Regulatory Note | Specifications subject to change without notice. Features vary by model and region. |
