Description

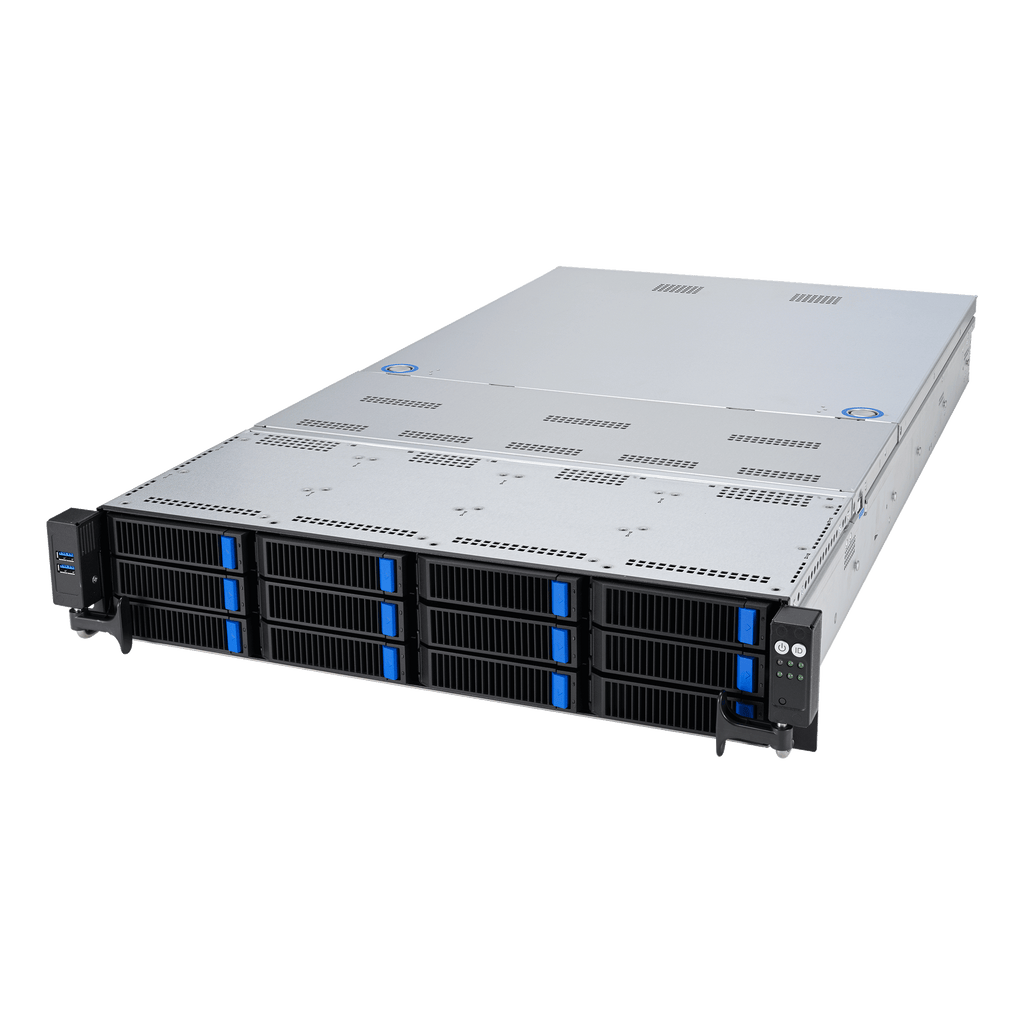

The ASUS RS720A-E12-RS12-26W3GPU is a next-generation 2U rackmount server engineered for high performance, scalability, and efficiency. Powered by 4th Gen AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ technology, this server is optimized for demanding workloads such as AI, virtualization, and data-intensive computing.

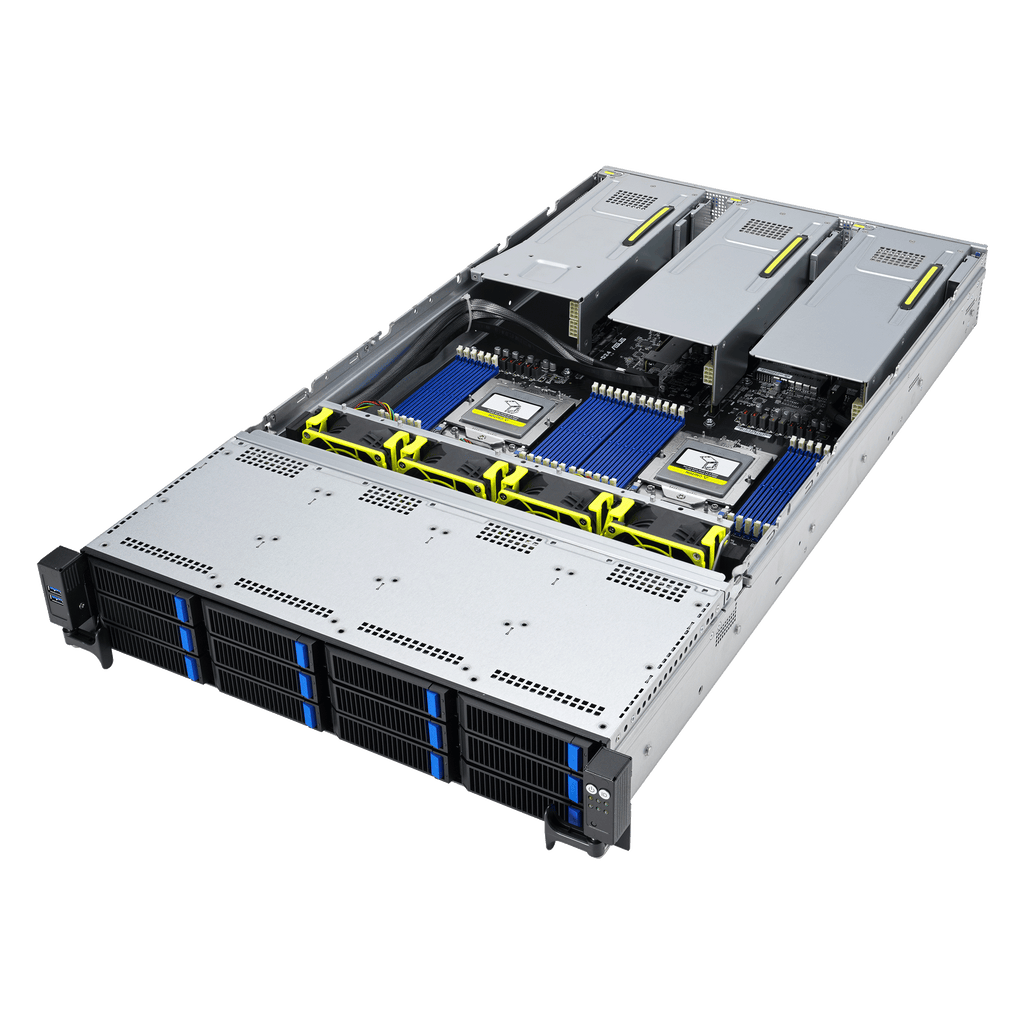

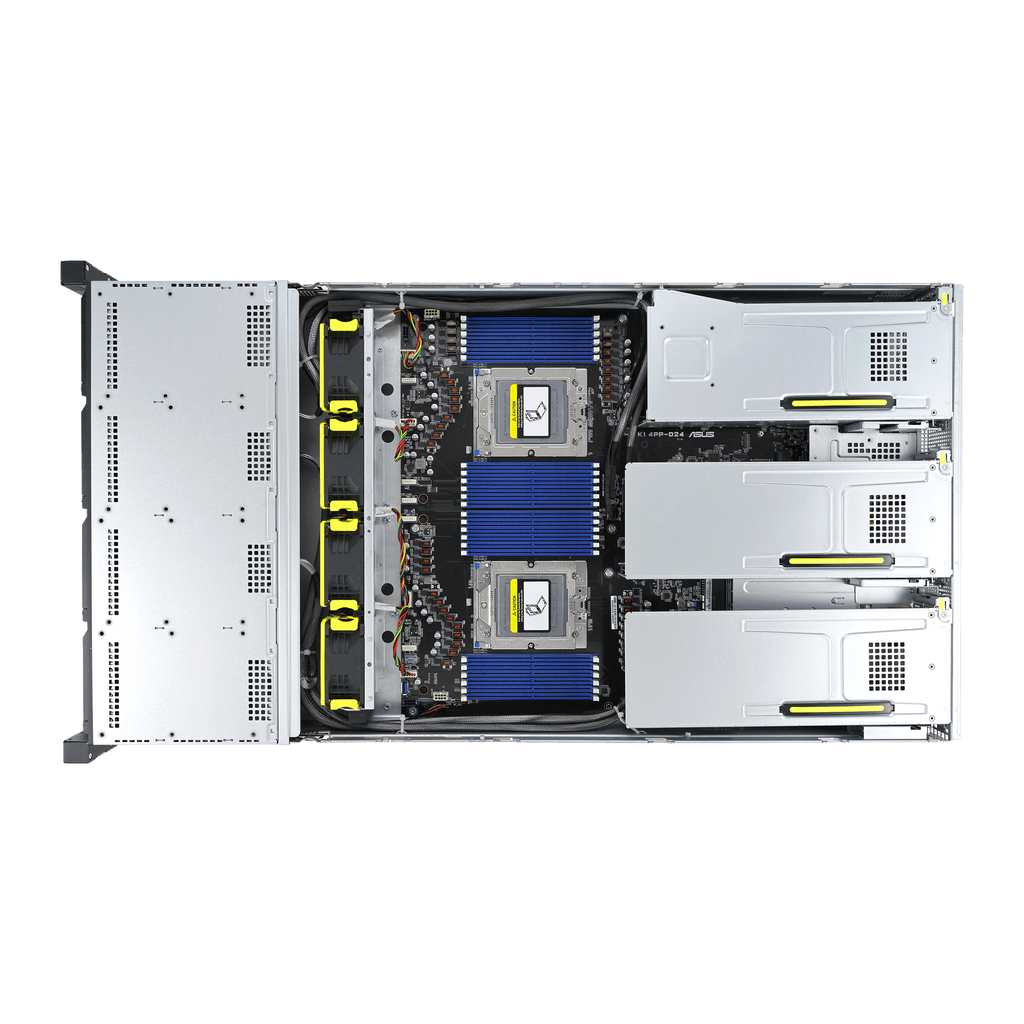

Designed with a front-parallel CPU and memory configuration for superior thermal management, the RS720A-E12-RS12 delivers exceptional airflow and cooling efficiency, even in dense rack environments. It supports up to four dual-slot GPUs (such as NVIDIA A100), offers PCIe 5.0 readiness, and integrates Enhanced Volume Air Cooling (EVAC) for stable GPU operation.
Comprehensive manageability is enabled through ASUS Control Center (Classic) and ASMB11-iKVM for remote server management, while security is reinforced with PFR FPGA Root-of-Trust and TPM 2.0 hardware protection. Flexible storage options, multiple network configurations, and redundant power supply options make it ideal for enterprise-grade deployment and hybrid cloud environments.
| Category | Specification |
|---|---|
| Form Factor | 2U Rackmount Server |
| Processor Support | 2 x Socket SP5 (LGA 6096), AMD EPYC™ 9004 Series, up to 400W |
| Architecture | 4th Gen AMD EPYC™ Processors with AMD 3D V-Cache™ |
| Memory | 24 DIMM slots (12 per CPU), DDR5 4800/4400 RDIMM / LRDIMM / 3DS RDIMM |
| Max Memory Capacity | Up to 6 TB (6144 GB) |
| Expansion Slots | 9 x PCIe Gen5 slots + 1 internal RAID slot |

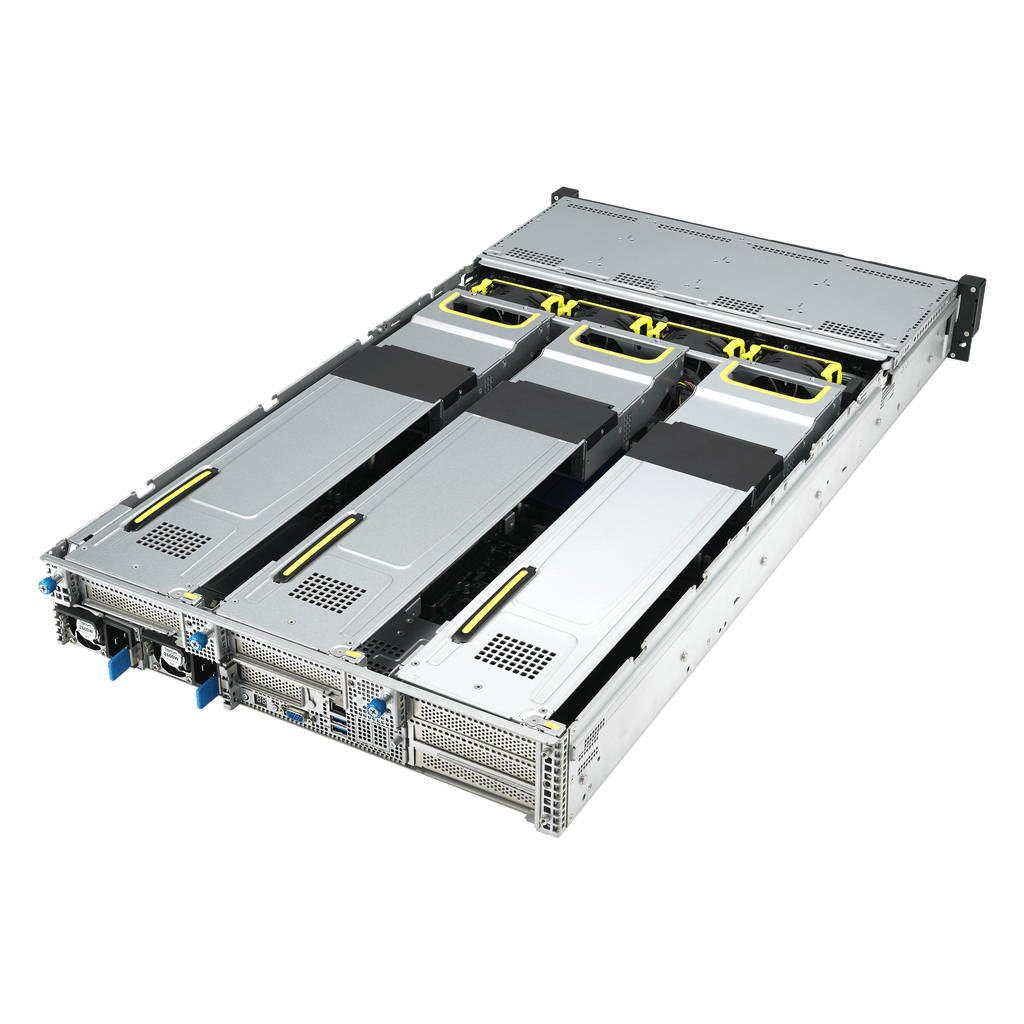

| GPU Support | Up to 4 dual-slot GPUs (e.g., NVIDIA A100), optimized for AI & HPC workloads |

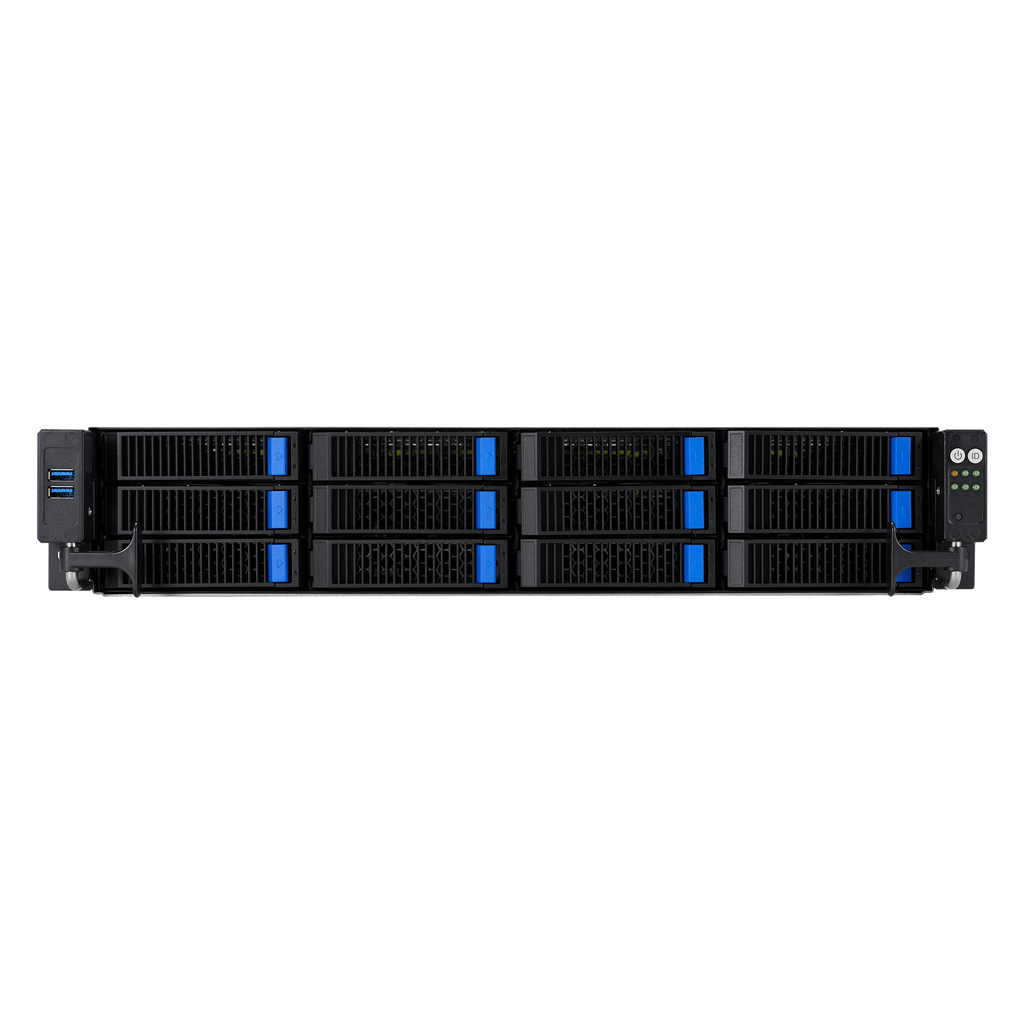

| Storage Bays (Front) | 12 x 3.5" hot-swap drive bays (supports up to 8 x NVMe/SATA/SAS + 4 x SATA/SAS) |
| Storage Bays (Rear, Optional) | 2 x 2.5" hot-swap NVMe drive bays |
| M.2 Support | 2 x M.2 (SATA 6Gb/s & PCIe Gen4 x4, up to 2280) |
| Disk Controller | 8 x SATA 6Gb/s ports; optional Broadcom RAID or HBA cards |
| Networking | Configurable: 4 x 1G (Intel I350-AM4) or 2 x 10G (Intel X710-AT2); 1 x Mgmt LAN |
| Graphics | Aspeed AST2600 with 64MB VRAM |
| Management | ASUS Control Center (Classic), ASMB11-iKVM for KVM-over-IP |
| Front I/O Ports | 2 x USB 3.2 Gen1 |

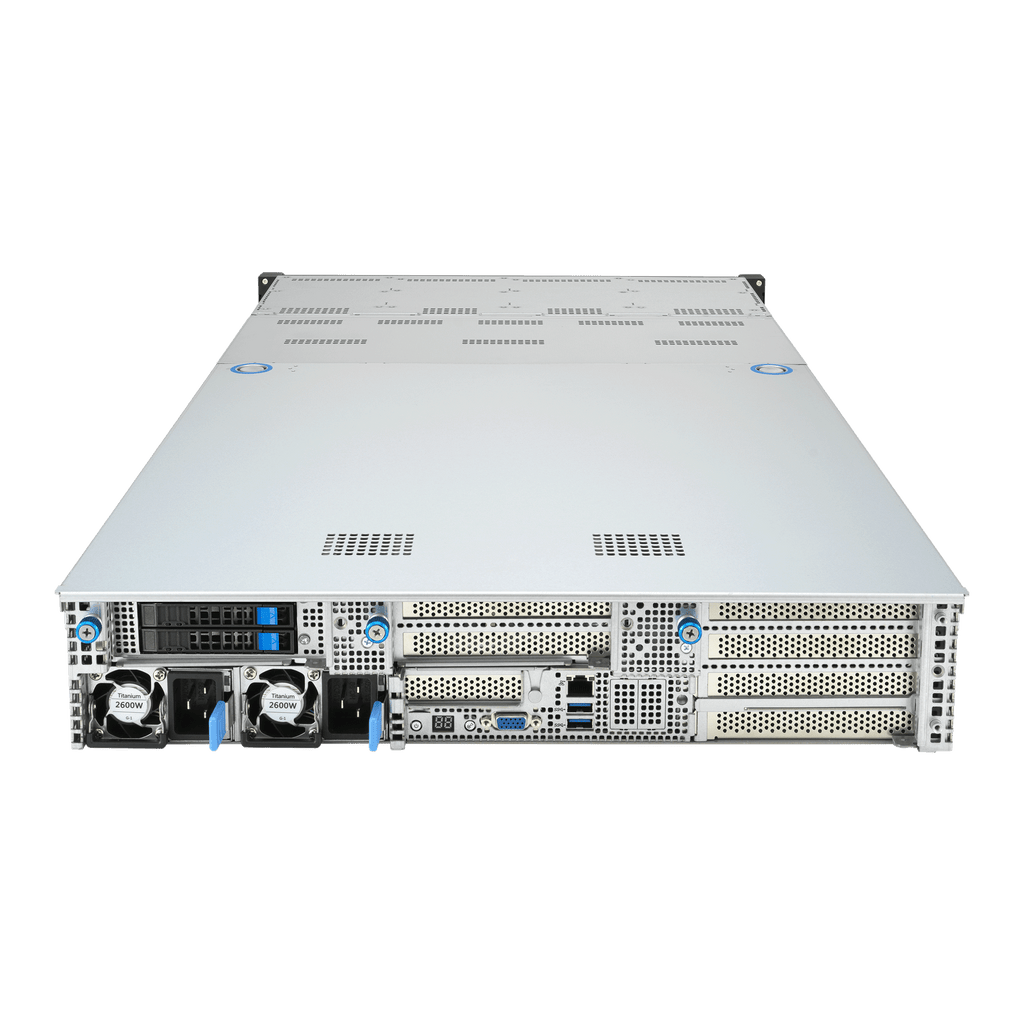

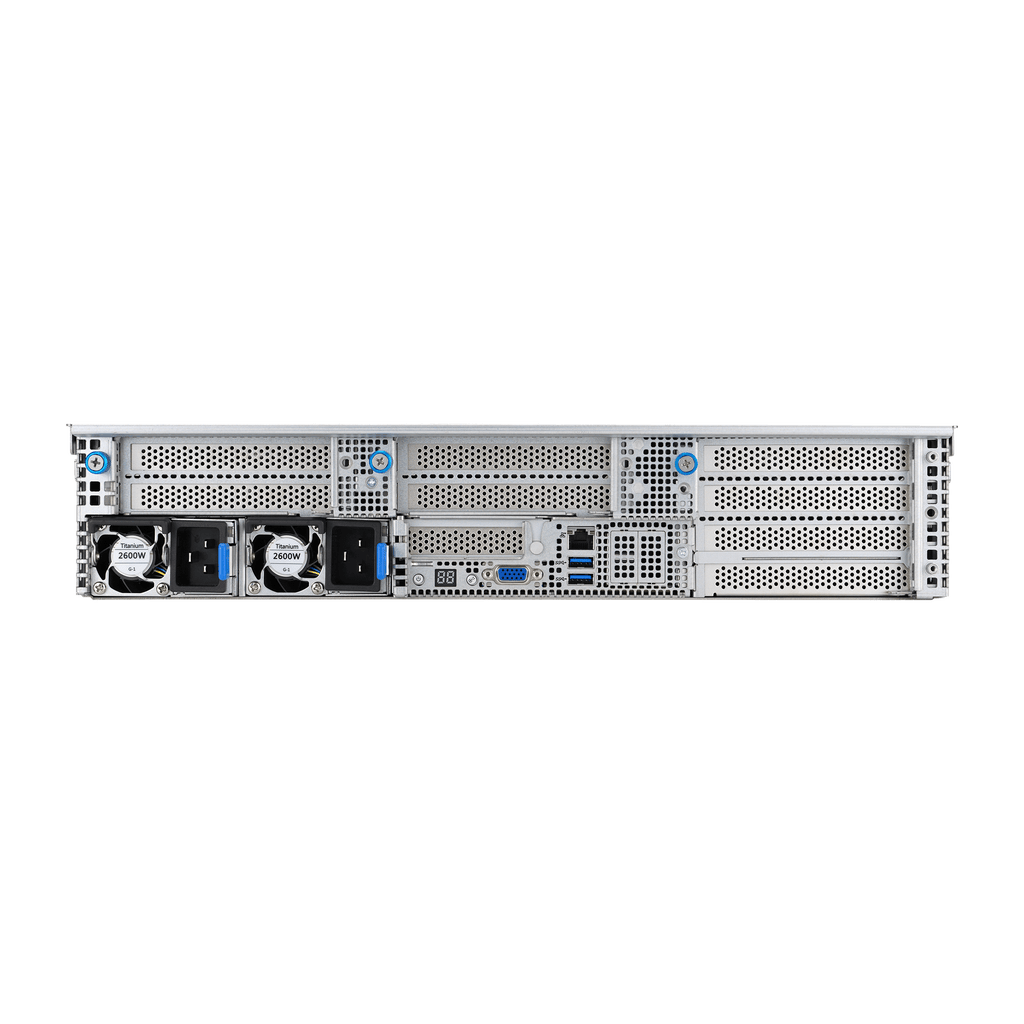

| Rear I/O Ports | 2 x USB 3.1 Gen1, 1 x VGA, 1 x Mgmt LAN, 2 x 10G or 4 x 1G LAN (optional), 1 x OCP3.0 (optional) |
| Power Supply Options | 1+1 Redundant 2600W/1600W 80 PLUS Titanium or 2000W/1600W 80 PLUS Platinum |
| Dimensions (W x D x H) | 449mm x 840mm x 88.1mm (17.68" x 33.07" x 3.47") |
| Weight | Net: 19.3 kg / Gross: 25.77 kg |
| Operating Temperature | 10°C – 35°C |
| Compliance | BSMI, CE, CB, FCC Class A, ENERGY STAR v4.0 |
| Target Applications | Hot Data Cache, Cloud & Enterprise Storage, Virtualized Storage Solutions |
