Description

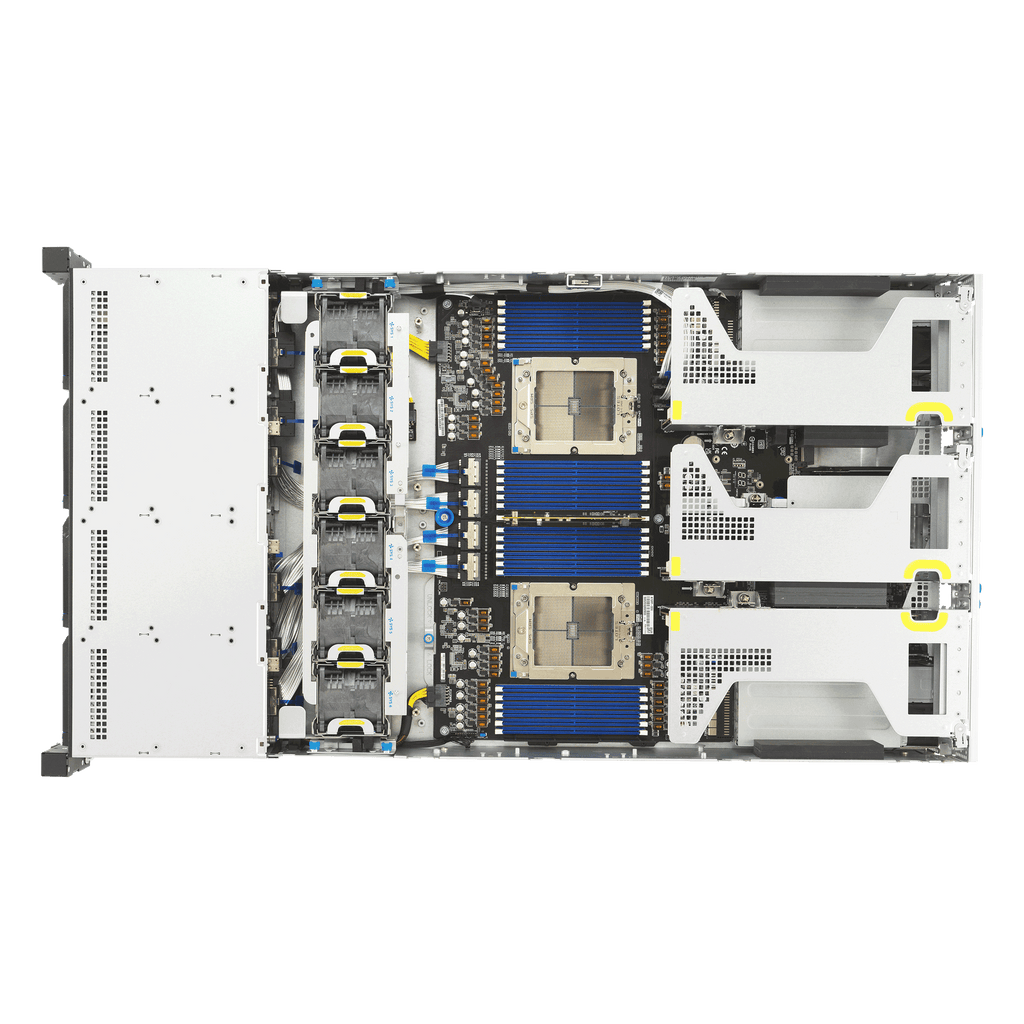

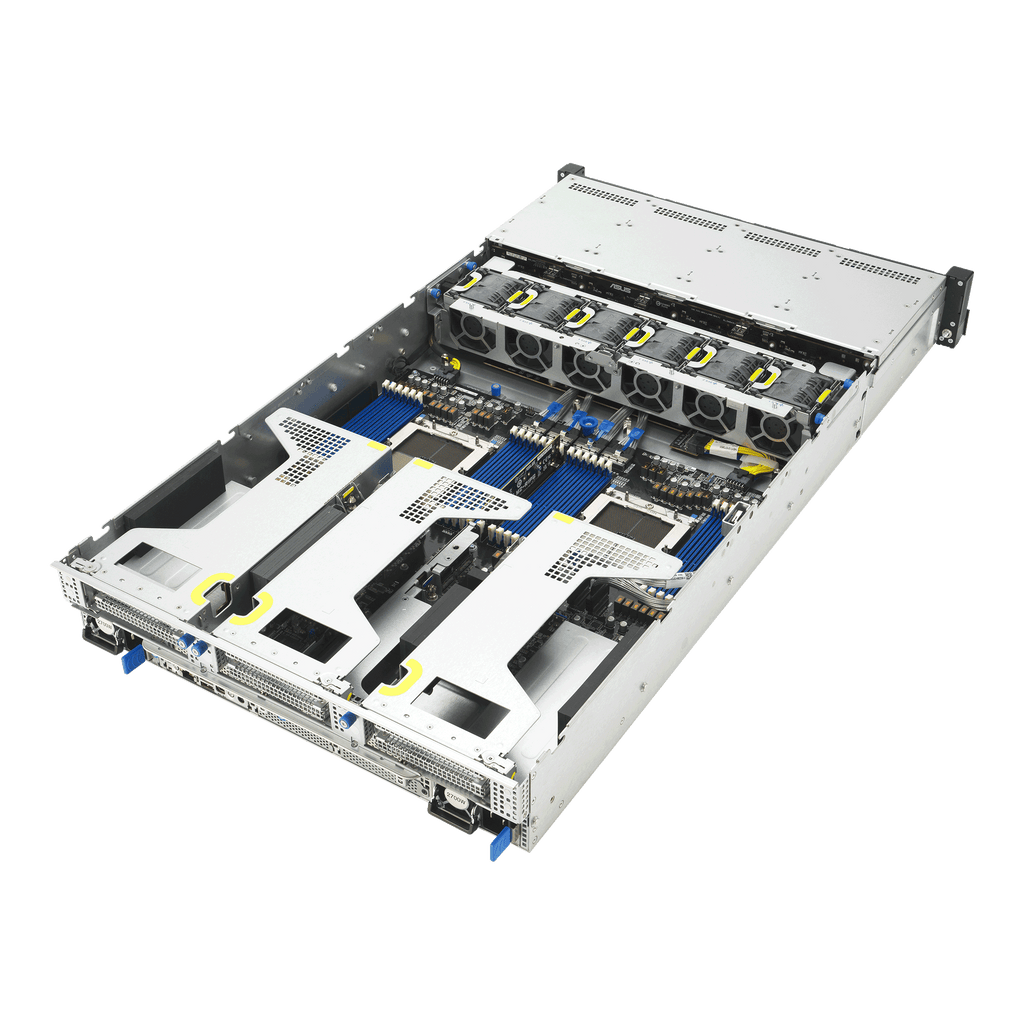

The ASUS RS720A-E13-RS12U-27KW10G is a powerful and scalable 2U rack server designed for next-generation performance, reliability, and efficiency in data-intensive enterprise and HPC environments. Powered by dual AMD EPYC™ 9005 Series processors (up to 400 W TDP) and supporting 24 DIMM slots of DDR5 RDIMM up to 6000 MHz, it delivers exceptional compute power and memory bandwidth for the most demanding workloads.
Engineered with a DC-MHS modular architecture, the RS720A-E13-RS12U offers flexible configuration options, from 12 hot-swappable 2.5"/3.5" drive bays (supporting NVMe, SATA, and SAS*) to 10 PCIe Gen5 expansion slots for accelerated data throughput. Integrated ASPEED AST2600 management graphics and ASMB12-iKVM enable comprehensive out-of-band remote management, while PFR FPGA Root-of-Trust and TPM 2.0 ensure robust firmware and hardware security.
Designed to balance power efficiency and performance, this 2U platform comes equipped with redundant 80 PLUS Titanium 3200 W/2700 W PSUs and ASUS Control Center (ACC) software for streamlined IT operations — making it ideal for AI inference, virtualization, and high-density computing environments.
| Category | Specification |
|---|---|
| Model Name | ASUS RS720A-E13-RS12U-27KW10G |
| Form Factor | 2U Rackmount |
| Processor Support | Dual AMD EPYC™ 9005 Series Processors (Air-cooled 2U EVAC HS up to 400 W TDP) |
| Chipset | Integrated I/O (No Chipset) |
| Memory | 24 × DDR5 DIMM slots (12 per CPU), up to 6000 MHz (1 DPC) |
| Maximum Memory Capacity | Up to 3 TB DDR5 RDIMM (6400 / 5600 MHz) — Supports 128 GB, 96 GB, 64 GB modules |
| Expansion Slots | Total 10 × PCIe Gen5 slots: 6 × PCIe Gen5 x8 / 3 × PCIe Gen5 x16 (FHFL), 2 × PCIe Gen5 x16 (FHHL), 2 × OCP 3.0 Gen5 x16 |

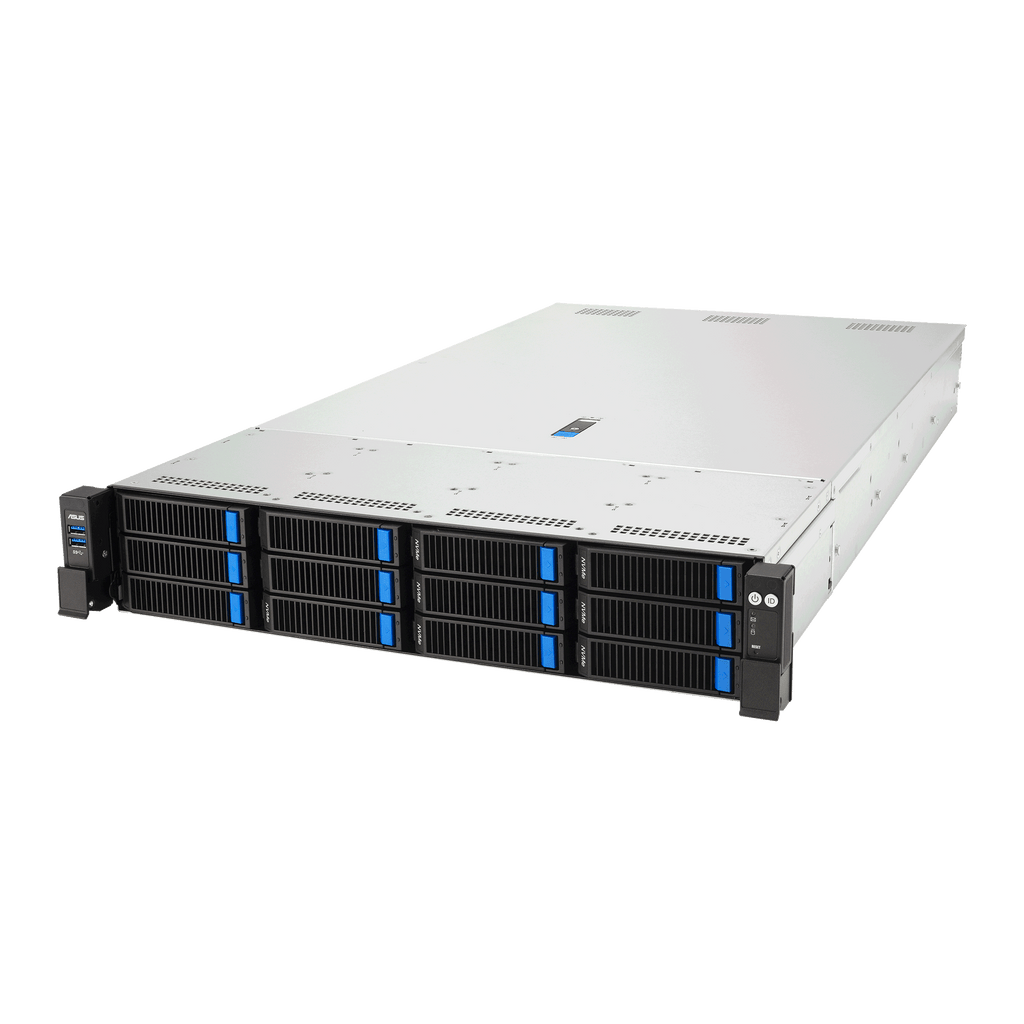

| Storage Bays | 12 × 2.5"/3.5" Hot-Swap Drive BaysConfiguration #1: 12 × NVMeConfiguration #2: 8 × NVMe/SATA/SAS + 4 × SATA/SAS**HBA/RAID card required for SAS support |
| Disk Controller | 2 × DIMM.2 Gen3 x4 (22110/2280/2260) + Optional Broadcom HBA 9500-16I / Mega RAID 95XX Series |
| Networking | 1 × RJ-45 Management LAN Port |
| Graphics | ASPEED AST2600 64 MB |
| Front I/O Ports | 2 × USB 3.2 Gen 1 |

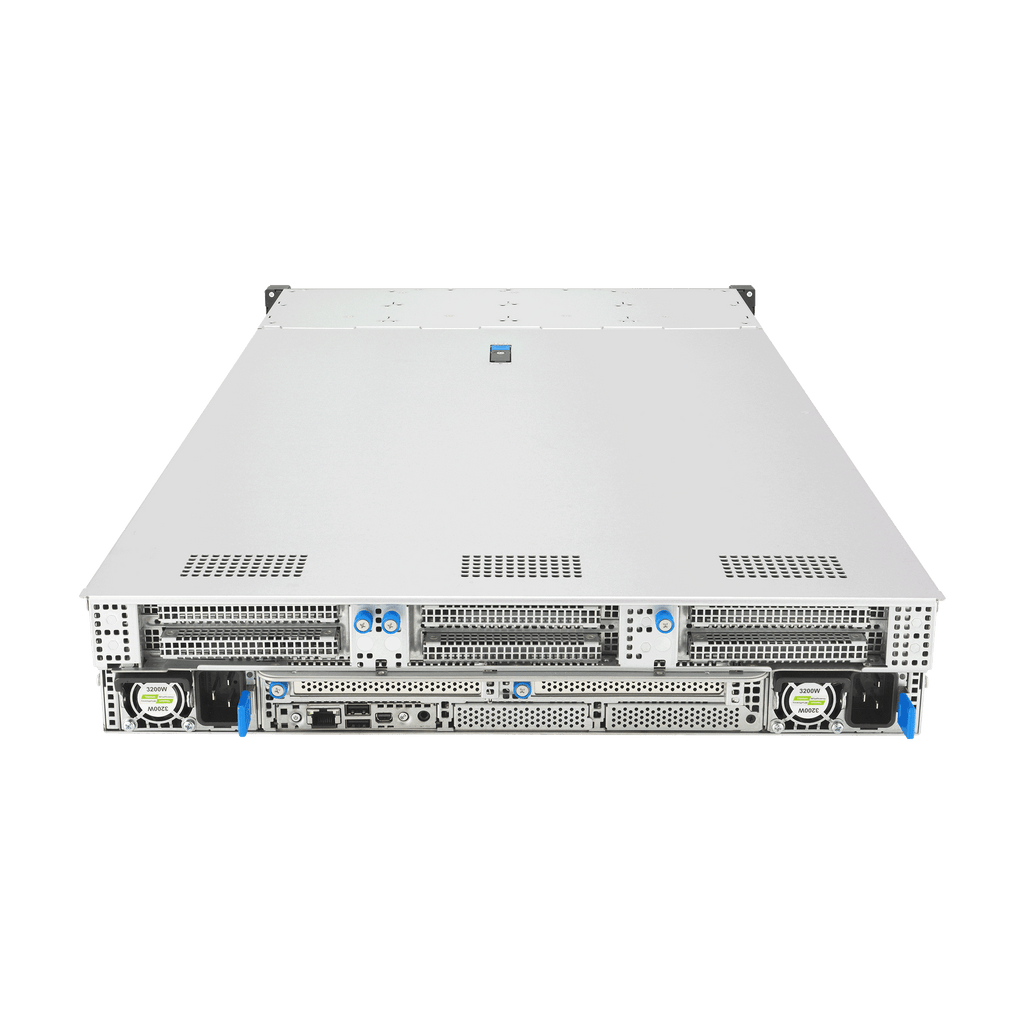

| Rear I/O Ports | 2 × USB 3.2 Gen 1, 1 × Mini DP, 1 × RJ-45 Mgmt LAN, 1 × Debug Port |
| Switch / LEDs | Front: Power Switch/LED, Location LED, Reset, Message LED Rear: Power Switch, Location LED |
| Management | ASUS Control Center (Classic) + On-board ASMB12-iKVM (KVM-over-IP) |
| Security | PFR FPGA Root-of-Trust, TPM 2.0 |
| Power Supply | 1 + 1 Redundant 3200 W / 2700 W 80 PLUS Titanium |
| Dimensions (W × H × D) | 449 × 88 × 830 mm (17.68 × 3.5 × 32.7 inches) |
| Net Weight | 17.82 kg (CPU, DRAM & HDD not included) |
| Gross Weight | 21.34 kg (Packed, CPU/DRAM/HDD not included) |
| Operating Temperature | 10 °C ~ 35 °C |
| Non-Operating Temperature | -40 °C ~ 70 °C |
| Non-Operating Humidity | 20 % ~ 90 % (Non-condensing) |
| Operating System Support | Refer to ASUS official site for latest OS compatibility |
