Description

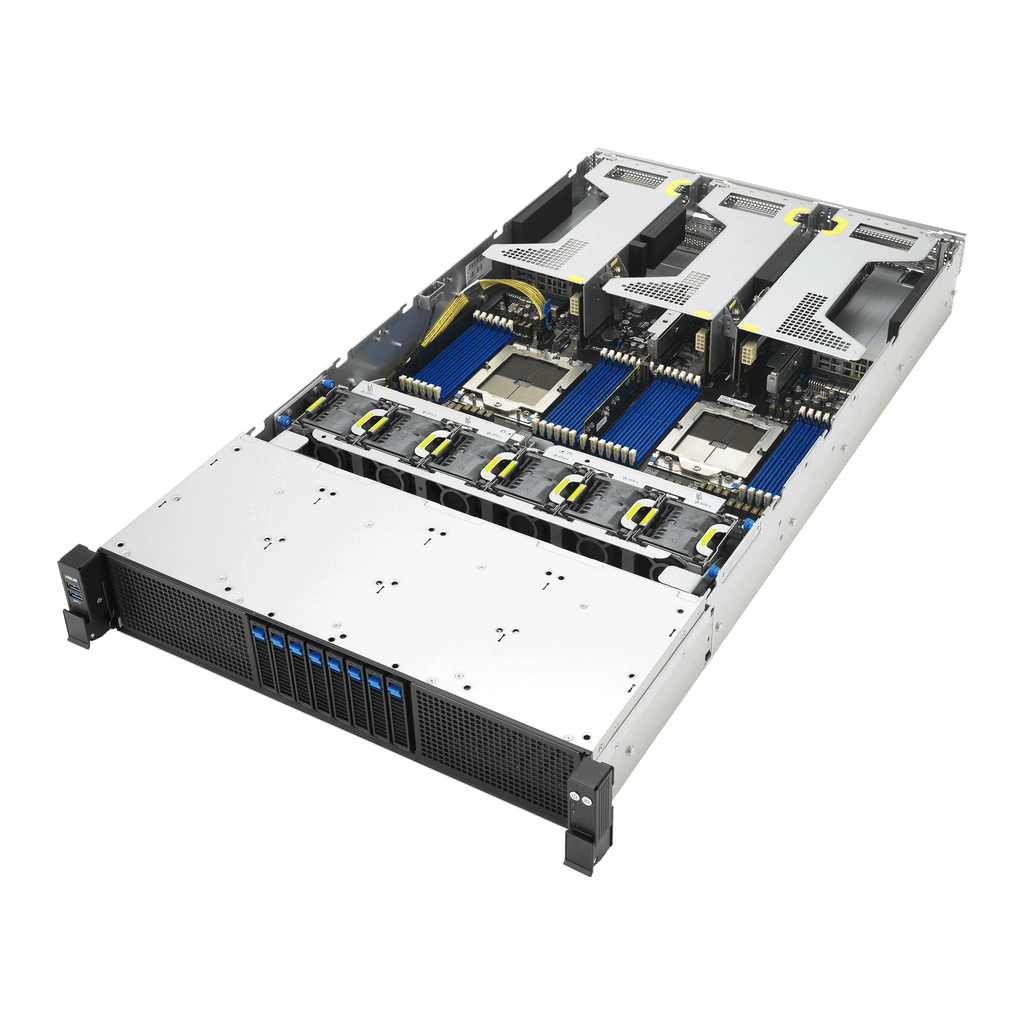

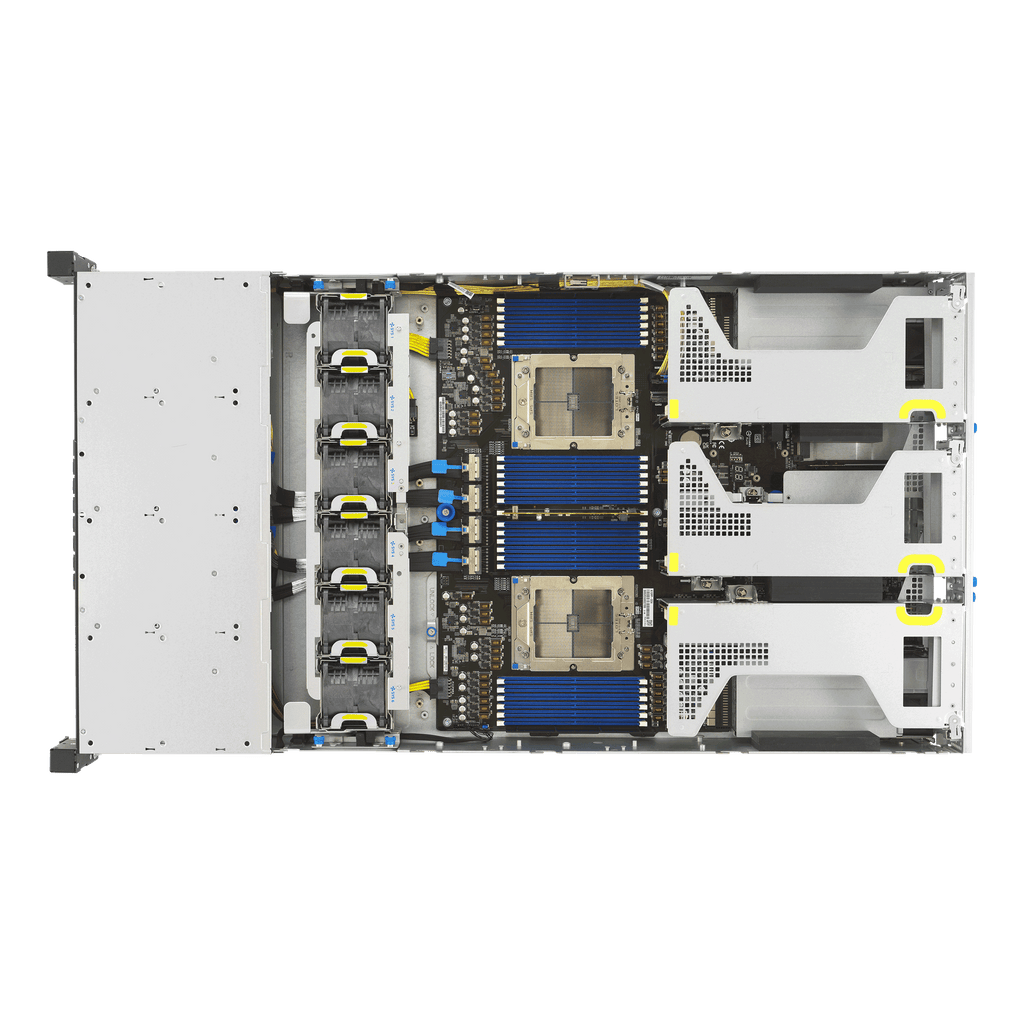

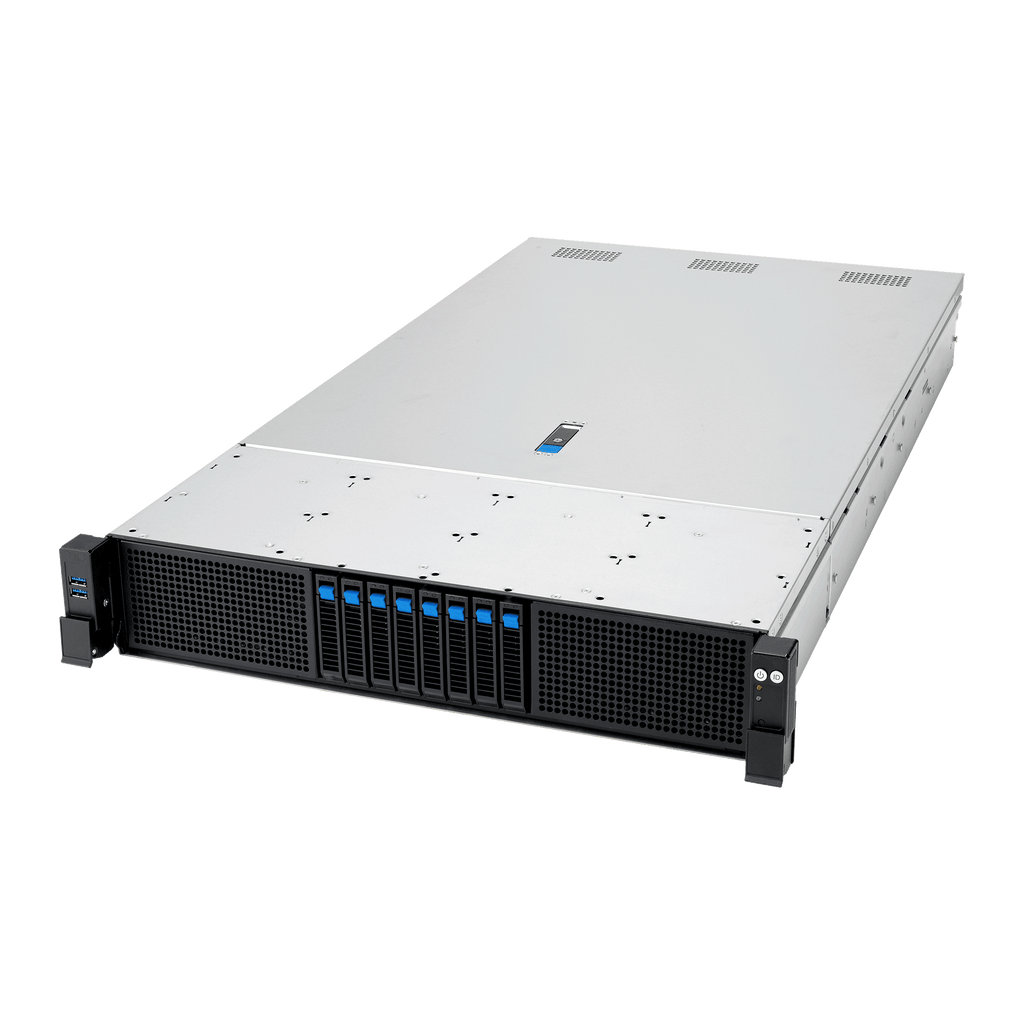

The ASUS RS720A-E13-RS8G-32KW10G is a high-performance 2U rackmount server engineered for AI acceleration, data-intensive computing, and scalable enterprise workloads. Powered by dual AMD EPYC™ 9005 processors with up to 500W TDP and DDR5 RDIMM memory up to 6000 MHz, it delivers superior performance and efficiency for modern data centers.
Optimized for up to three dual-slot GPUs, this GPU-ready configuration enables rapid AI inferencing, HPC simulations, and machine learning training. It features 10 PCIe Gen5 slots, 8 hot-swap 2.5" drive bays, and dual M.2 22110 slots for ultra-fast storage expansion. Designed under the DC-MHS architecture, it ensures modular scalability, simplified maintenance, and robust system reliability.
With ASUS ASMB12-iKVM for KVM-over-IP management, PFR FPGA platform root-of-trust, and TPM 2.0 hardware security, the RS720A-E13-RS8G-32KW10G is ready for mission-critical applications demanding security, resilience, and top-tier performance.
| Category | Specification |
|---|---|
| Model | ASUS RS720A-E13-RS8G-32KW10G |
| Form Factor | 2U Rackmount |
| Processor Support | Dual AMD EPYC™ 9005 Series Processors (up to 400W TDP, air-cooled 1U EVAC HS) |
| Architecture | DC-MHS (Data Center Modular Hardware System) |
| Memory | 24 × DDR5 DIMM slots, up to 6000 MHz (1DPC), max capacity 3 TB |
| Memory Type | DDR5 RDIMM (128 GB, 96 GB, 64 GB) |
| Expansion Slots | 10 × PCIe Gen5 slots (6 × x8 or 3 × x16 FHFL, 2 × x16 FHHL, 2 × OCP 3.0 Gen5 x16) |
| GPU Support | Up to 3 dual-slot GPUs (e.g., NVIDIA H100 NVL) |
| Storage Bays | 8 × 2.5" hot-swap bays (Support NVMe / SATA / SAS*) |
| M.2 Slots | 2 × M.2 22110 (SATA or PCIe Gen3 x4) |
| RAID / SAS Options | Broadcom HBA 9500-16I / MegaRAID 95XX series (optional) |
| Networking | 1 × RJ-45 Management Port |
| Graphics | ASPEED AST2600 with 64 MB VRAM |
| Front I/O | 2 × USB 3.2 Gen1 ports |

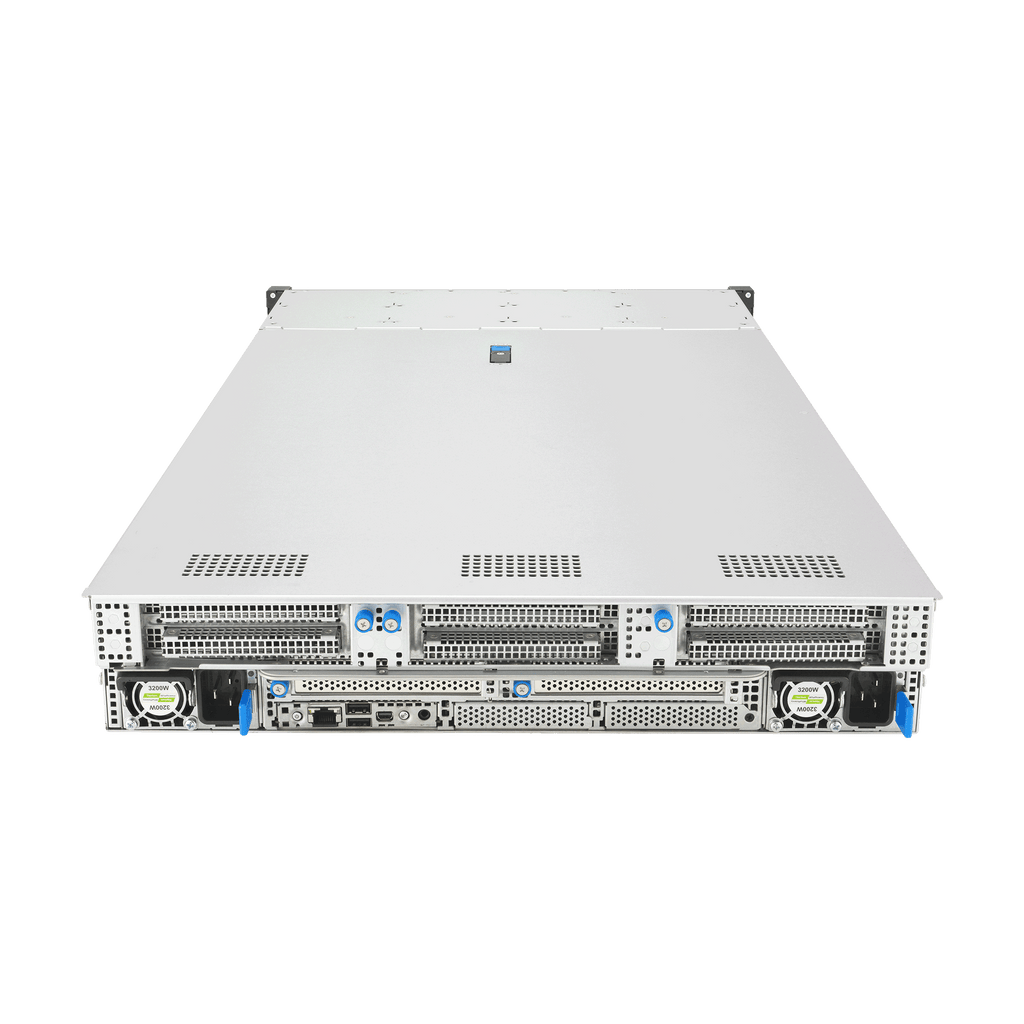

| Rear I/O | 2 × USB 3.2 Gen1, 1 × Mini-DP, 1 × RJ-45 Mgmt LAN, 1 × Debug port |
| Management | ASUS Control Center (Classic), ASMB12-iKVM (remote management) |
| Security | PFR FPGA Platform Root-of-Trust, TPM 2.0 module |
| Power Supply | 1+1 Redundant 3200 W / 2700 W 80 PLUS Titanium PSU |
| Cooling | 6 × tool-less hot-swap fan modules |
| Dimensions (W×H×D) | 449 × 88 × 830 mm (17.68" × 3.5" × 32.7") |
| Weight | Net: 17.82 kg |
| Operating Temperature | 10 °C ~ 35 °C (non-operating: -40 °C ~ 70 °C) |
| Humidity (non-condensing) | 20% ~ 90% |
