Description

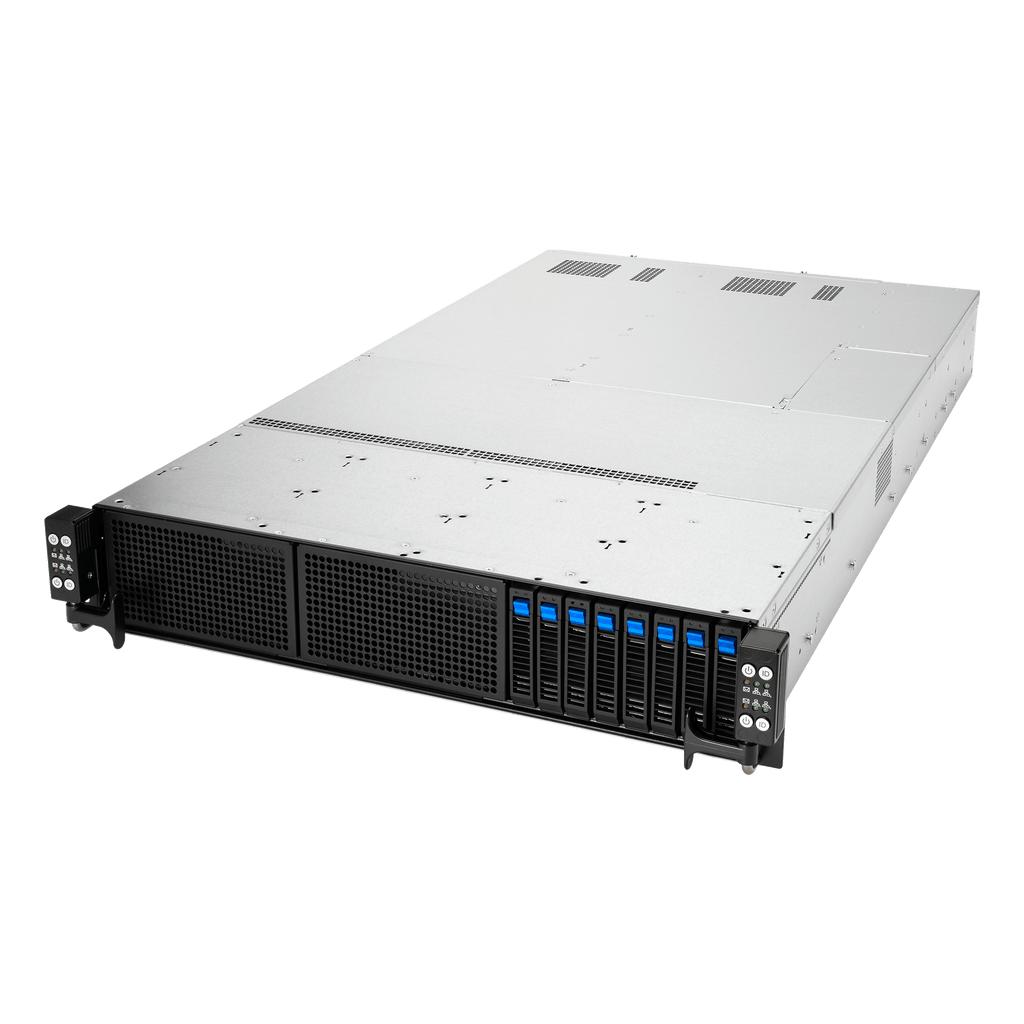

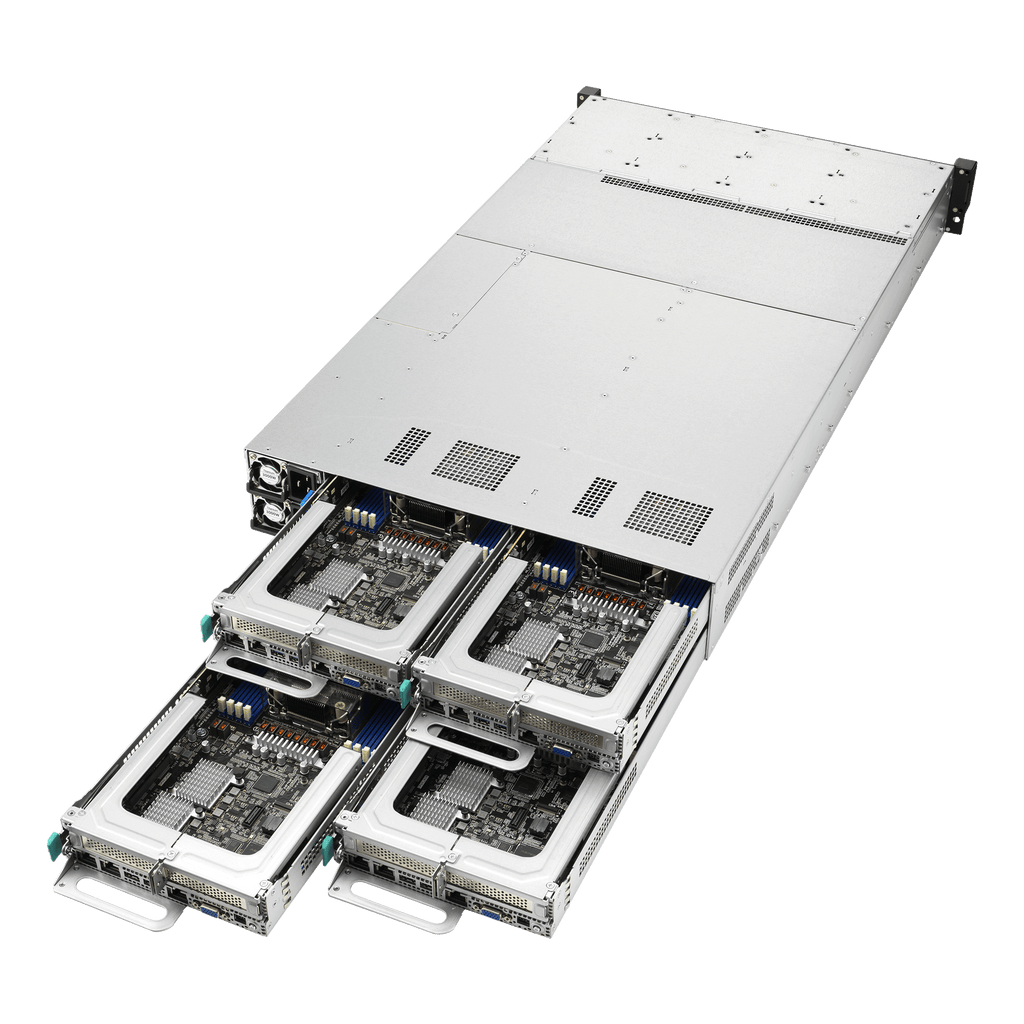

The ASUS RS720Q-E11-RS8U-3WSTEVHS is a high-performance 2U4N multi-node server designed for scalability, efficiency, and reliability in high-density data center environments. Powered by 5th Gen Intel® Xeon® Scalable processors, each node supports up to 16 DDR5 DIMM slots, two PCIe 5.0 x16 slots, and two M.2 interfaces, enabling exceptional compute and storage flexibility for demanding HPC, virtualization, and enterprise workloads.
This system integrates ASUS’s Extended Air Volume Air Cooling (EVAC HS) solution for improved thermal management and system stability under intensive workloads. It features 8 x 2.5-inch NVMe/SAS/SATA hot-swap bays, redundant 3000W 80 PLUS Titanium power supplies, and advanced management through ASMB11-iKVM and ASUS Control Center (Classic). Enhanced security with PFR FPGA platform Root-of-Trust and TPM 2.0 ensures firmware integrity and system resiliency.
Optimized for HPC, AI inference, and large-scale virtualization, the RS720Q-E11-RS8U delivers the compute density and performance required for next-generation data center deployments.
| Category | Specification |
|---|---|
| Model | ASUS RS720Q-E11-RS8U-3WSTEVHS |
| Form Factor | 2U4N Rackmount Multi-Node Server |

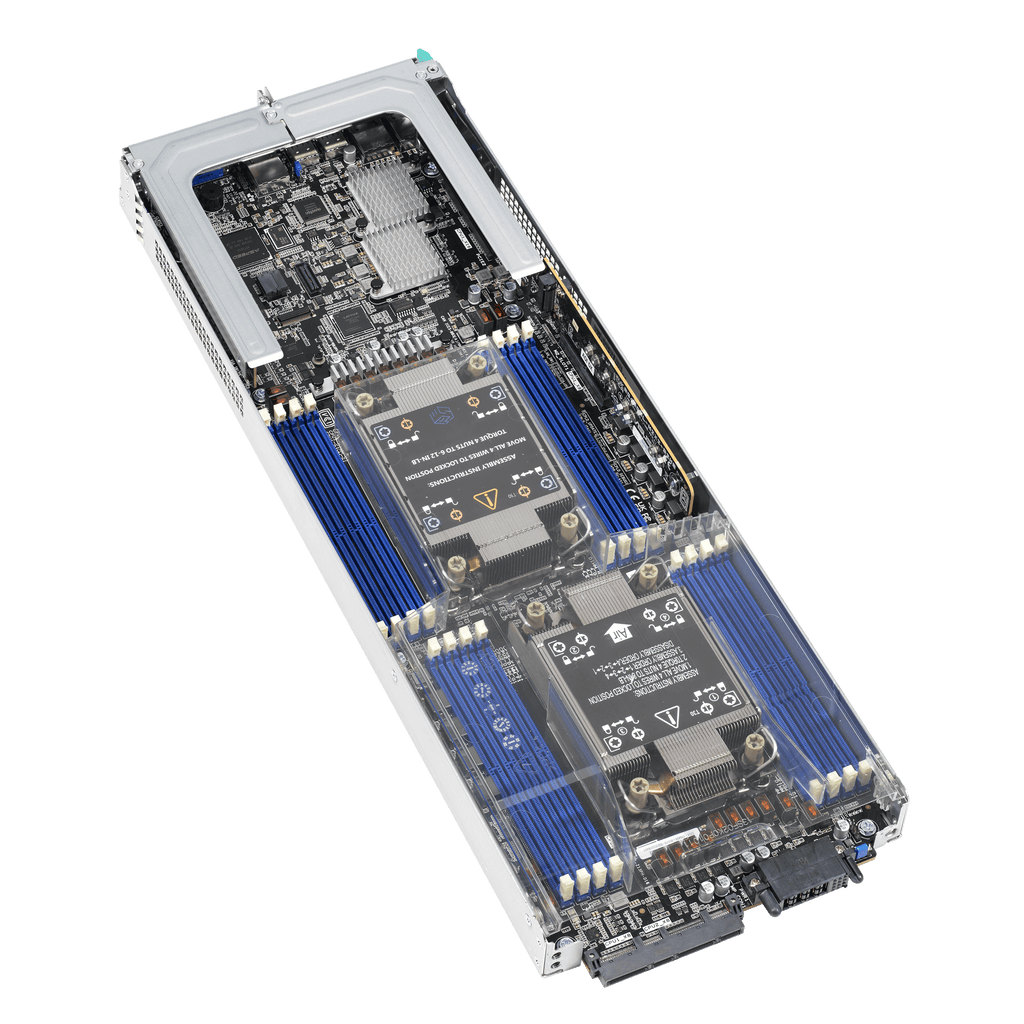

| Processor Support (per node) | 2 × Socket E (LGA 4677) supporting 4th/5th Gen Intel® Xeon® Scalable processors |
| Max CPU TDP | Up to 270W (EVAC HS cooling) / 205W (standard heatsink) |
| Chipset | Intel® C741 PCH |
| Memory | 16 × DDR5 DIMM slots (8-channel per CPU) |
| Memory Capacity | Up to 4096 GB per node |
| Memory Type | DDR5 5600/5200/4800/4400/4000 RDIMM / RDIMM 3DS |
| Expansion Slots | 2 × PCIe 5.0 x16 HHHL slots per node |
| Storage Bays | 8 × 2.5" hot-swap bays supporting NVMe/SAS/SATA drives |
| M.2 Slots | 2 × PCIe Gen4 x2 or SATA per node |
| RAID Controller | Broadcom SAS3008 (RAID 0, 1) |
| Networking (per node) | 2 × Intel® X710-AT2 10GbE LAN ports, 1 × Management port |
| Graphics | ASPEED AST2600 (64 MB) |

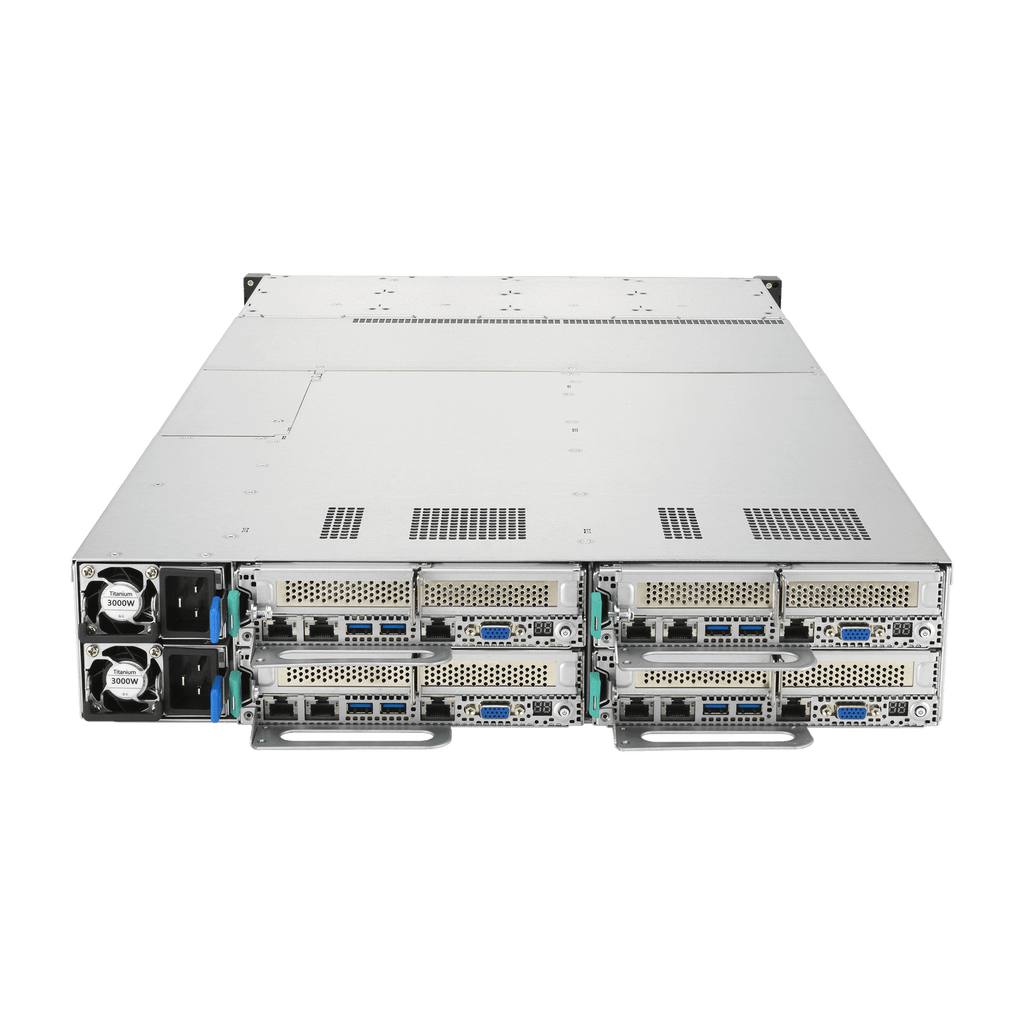

| Rear I/O (per node) | 2 × USB 3.1, 1 × VGA, 1 × RJ-45 GbE, 1 × RJ-45 Management |
| Management | ASUS ASMB11-iKVM, ASUS Control Center (Classic) |
| Security | PFR FPGA Root-of-Trust, TPM 2.0 |
| Cooling | EVAC High-Performance Air Cooling Solution |
| Power Supply | 1+1 Redundant 3000W 80 PLUS Titanium (220–240 Vac, 15.5A, 50–60Hz) |
| Dimensions (W × D × H) | 444 × 800 × 88 mm (17.48" × 31.5" × 3.46") |
| Net Weight | 35.5 kg (without CPU, DRAM, HDD) |
| Operating Temperature | 10°C ~ 35°C |
| Non-Operating Temperature | -40°C ~ 70°C |
| Non-Operating Humidity | 20% ~ 90% (non-condensing) |
