Description

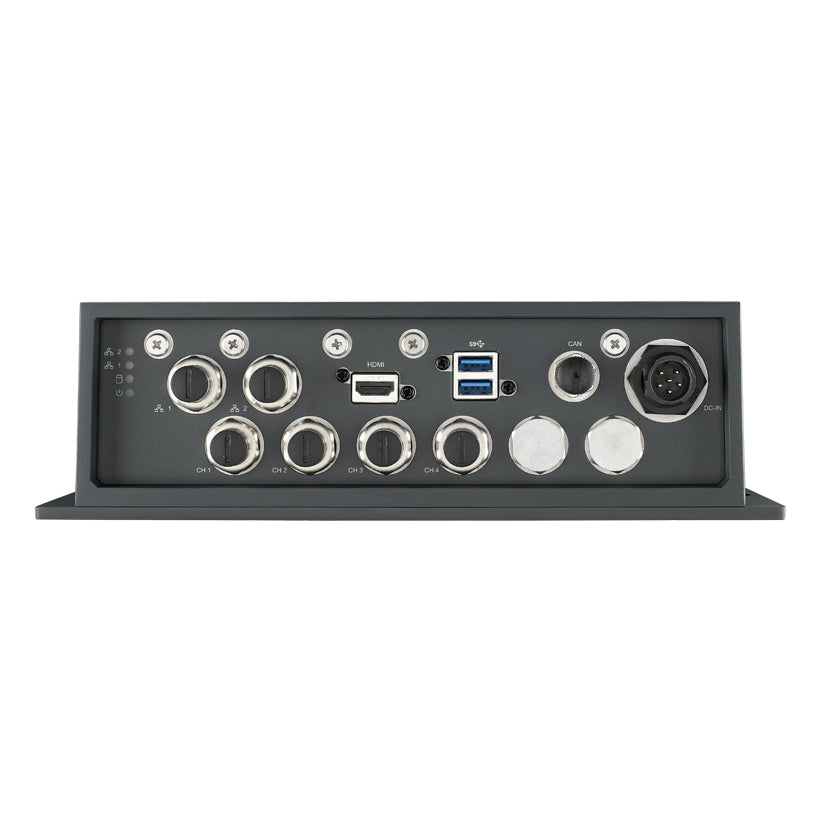

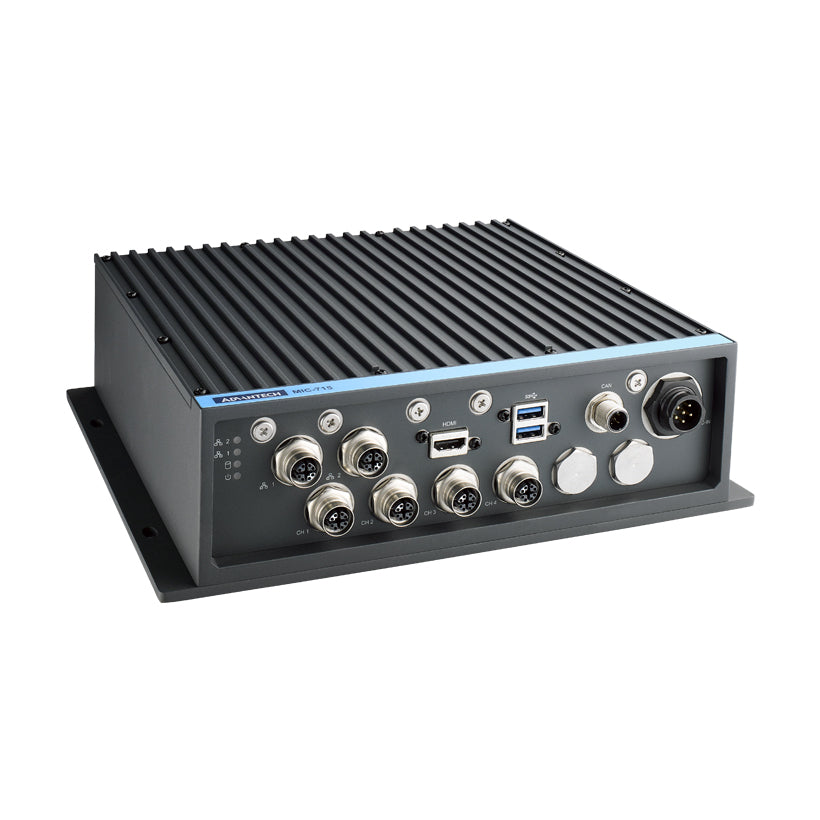

The Advantech MIC-715-OX4A1 is a rugged, fanless in-vehicle AI system designed for edge video analytics and intelligent transportation applications. Powered by the NVIDIA Jetson Orin NX platform, it delivers high AI inference performance in a compact, IP67-rated enclosure suitable for harsh mobile environments.
Built for reliability in vehicles and outdoor deployments, this system supports multiple PoE cameras, high-speed networking, and flexible expansion options. With wide-range DC power input and ignition support, the MIC-715-OX4A1 is ideal for smart transportation, mobile surveillance, fleet analytics, and AI-driven video recording at the edge.
| Attribute | Specification |
|---|---|
| Brand | Advantech |
| Product Type | Rugged In-Vehicle AI Fanless System |
| Processor Platform | NVIDIA Jetson Orin NX |
| CPU | 8-core NVIDIA Arm Cortex-A78AE 64-bit |
| GPU | NVIDIA Ampere GPU with Tensor Cores |
| AI Performance | Up to 100 TOPS |
| System Memory | 16GB LPDDR5 |
| Storage | 128GB NVMe M.2 SSD (pre-installed) |
| Ethernet | 6 × Gigabit Ethernet (4 × PoE IEEE 802.3af) |
| USB Ports | 2 × USB 3.0 |
| Display Output | 1 × HDMI (up to 4K @ 60Hz) |
| CAN Bus | 2 × CAN bus |
| Expansion Slots | 2 × mPCIe, 1 × M.2 3052, 1 × M.2 2280 |
| SIM Support | Dual Nano SIM |
| Power Input | 12/24V DC with ignition control |
| Cooling | Fanless |
| Ingress Protection | IP67 |
| Operating Temperature | -20°C to 60°C |
| Mounting Type | Desktop / In-Vehicle |
| Dimensions (W × D × H) | 275 × 220 × 80 mm |
| Weight | 4.5 kg |
| Operating System Support | NVIDIA JetPack 5.1 or later |
| Management | Supports Allxon remote monitoring |
