Description

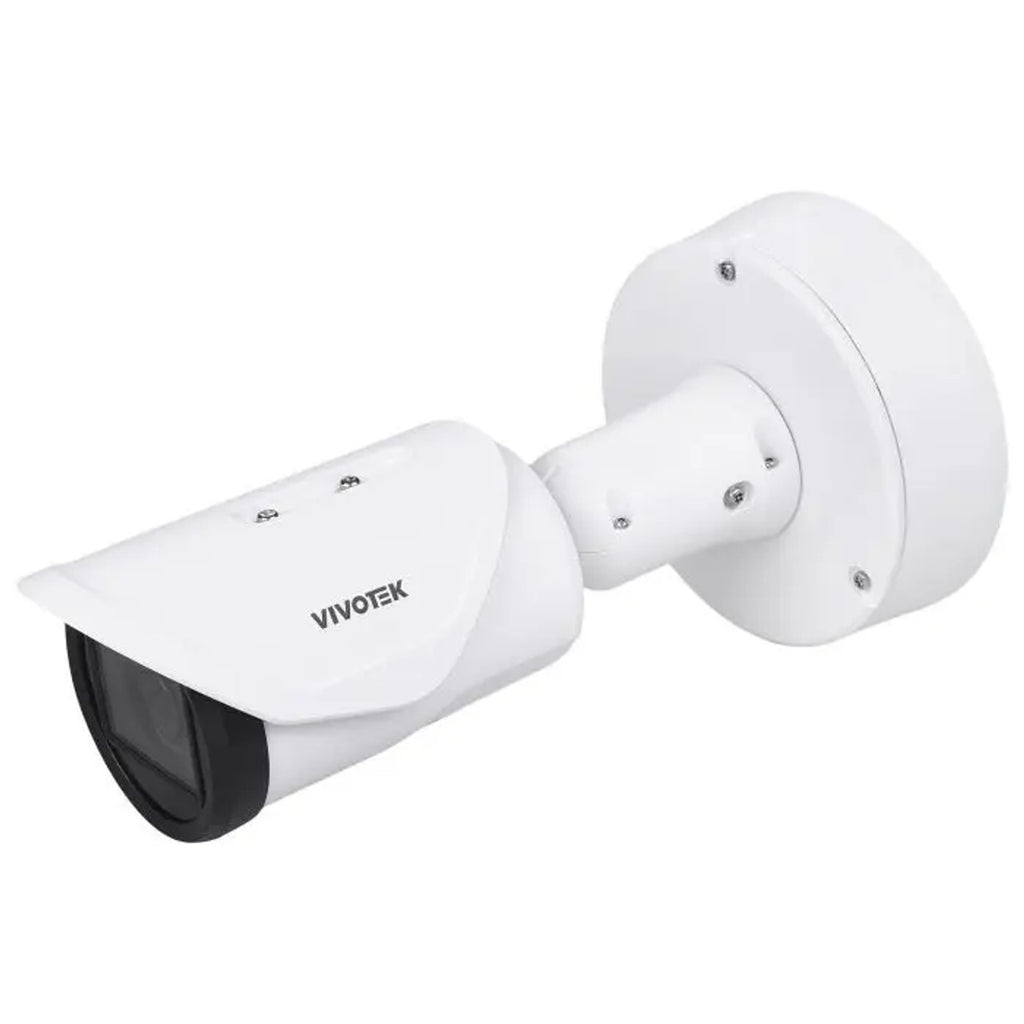

The Vivotek IB9387-LPR-V3(7-22mm) is a professional-grade 5MP outdoor bullet IP camera engineered for advanced license plate recognition (LPR) applications. Featuring a 7-22mm motorized vari-focal P-iris lens with remote focus, this high-performance camera delivers precise and reliable license plate capture at extended distances, making it ideal for roadways, parking lots, gated entrances, and perimeter monitoring.
Equipped with a 1/2.8" progressive CMOS sensor, the IB9387-LPR-V3 captures 2560 x 1920 resolution video at up to 30 fps with WDR Pro technology for superior image clarity in high-contrast lighting conditions. Built-in IR illuminators ensure crystal-clear night-time performance with zero-lux operation, while Smart IR III technology prevents overexposure and enhances detail.
The camera’s powerful onboard SoC with a deep learning accelerator enables real-time AI-powered LPR through VaxALPR software, supporting vehicle type and color recognition. With IP66/67 and IK10-rated housing, it withstands extreme weather and vandalism, operating reliably in temperatures from -40°C to 60°C. Secure connectivity is ensured with HTTPS, 802.1X, signed firmware, and Trend Micro IoT Security protection. Seamless integration with third-party systems is supported through ONVIF G, S, and T profiles, and multiple event triggers provide versatile alarm and notification options.
Designed for mission-critical traffic monitoring and access control, the Vivotek IB9387-LPR-V3(7-22mm) delivers exceptional performance, accuracy, and reliability in any environment.
| Feature | Specification |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Maximum Resolution | 2560 x 1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 7 ~ 22 mm |
| Aperture | F1.70 (Wide) ~ F2.90 (Tele) |
| Iris Type | P-iris |
| Field of View (H/V/D) | 39.3° ~ 15.5° / 28.8° ~ 11.6° / 50.8° ~ 19.4° |
| Minimum Illumination | 0.035 lux (Color), <0.005 lux (B/W), 0 lux (IR on) |
| IR Illuminators | Built-in IR LED x4, Smart IR III |
| WDR Technology | WDR Pro |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Up to 30 fps @ 2560x1920 (WDR On), 60 fps @ 1920x1080 (WDR Off) |
| Video Streams | Up to 3 simultaneous streams |
| Dynamic Range | 120 dB |
| Audio Capability | Two-way audio (G.711, G.726, MPEG-2 AAC-LC) |
| AI & Analytics | Built-in deep learning accelerator, VaxALPR support |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, FTP/SFTP, RTSP/RTP, SNMP, TLS 1.2/1.3, and more |
| ONVIF Compatibility | Profiles G, S, T |
| Storage | MicroSD/SDHC/SDXC (up to 1TB), NAS support |
| Power Input | PoE IEEE 802.3af, DC 12V, AC 24V |
| Power Consumption | Max. 12.95W (PoE) |
| Operating Temperature | -40°C ~ 60°C (IR off), -40°C ~ 50°C (IR on) |
| Ingress Protection | IP66/67, IK10, NEMA Type 4X |
| Dimensions | Ø 153 x 285.7 mm |
| Weight | 2.20 kg |
| Certifications | CE, FCC, UL, CB, IK10, IP66/67, NEMA 4X |
