Description

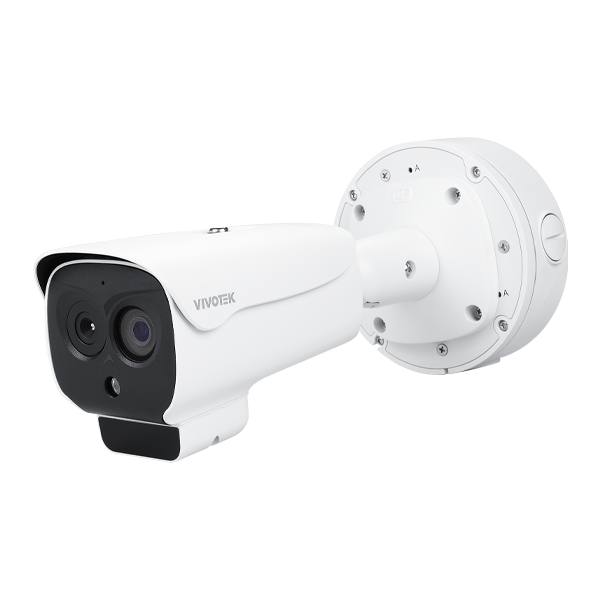

The Vivotek TB9333-E(3.5mm) is a high-performance dual-sensor thermal bullet network camera engineered for advanced perimeter protection, temperature monitoring, and early fire detection. Combining an uncooled VOx microbolometer thermal sensor and a 1/2.7" progressive CMOS optical sensor, it delivers precise thermal imaging at 256×192 resolution (scaled up to 704×576) and detailed optical video at up to 2880×1620 resolution. This dual-imaging capability ensures continuous surveillance and situational awareness in any lighting condition, from total darkness to challenging weather environments.
Equipped with built-in IR illumination up to 35 meters and a white strobe light for visual deterrence, the TB9333-E excels in 24/7 monitoring. Its powerful onboard AI analytics support intrusion detection, line crossing, loitering, wrong-way detection, and object classification, while integrated temperature measurement features enable real-time thermal alarms based on thresholds, temperature differences, or specific zones. With advanced fire and smoke detection capabilities, the camera is ideal for industrial sites, critical infrastructure, transportation hubs, and perimeter defense applications.
Rugged and reliable, the TB9333-E is IP66-rated for harsh outdoor environments, operates in extreme temperatures from -40°C to 60°C, and supports multiple event-triggered actions including audio alerts, white light flashing, and digital outputs. Featuring ONVIF compliance, PoE support, and flexible storage options, it provides seamless integration into existing security systems for robust, intelligent thermal monitoring and safety automation.
| Category | Specification |
|---|---|
| Image Sensor | Dual sensor: Uncooled VOx microbolometer and 1/2.7" Progressive CMOS |
| Resolution | Thermal: 256×192 (scaled up to 704×576); Optical: 2880×1620 |
| Lens | Thermal: Fixed 3.5mm, F1.0; Optical: Fixed 4mm, F1.6 |
| Field of View | Thermal: 48° (H) / 36° (V); Optical: 92° (H) / 46° (V) |
| Illumination | Built-in IR up to 35m; White strobe light for warning |
| Zoom | ePTZ with 4× digital zoom |
| Sensitivity (NETD) | < 50 mK |
| Spectral Range | 8 ~ 14 μm |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Thermal: 25 fps @ 704×576; Optical: 25 fps @ 2880×1620 |
| Streaming | 2 simultaneous streams per sensor; adjustable resolution, CBR/VBR |
| Audio | Two-way audio, G.711, RAW_PCM; external mic/line-in/out, built-in speaker |
| Network Protocols | IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, SMTP, HTTPS, 802.1x, QoS, NTP, FTP, UPnP, DDNS, ICMP, IGMP |
| AI & Analytics | Intrusion, line crossing, loitering, wrong way, enter/leave detection; temperature and VCA-triggered alarms |
| Temperature Measurement | -20°C to 150°C; accuracy ±2°C / ±2%; point, line, polygon measurement (up to 20 rules) |
| Detection Range (Human) | Detection: 146m; Recognition: 36m; Identification: 18m |
| Detection Range (Vehicle) | Detection: 447m; Recognition: 112m; Identification: 56m |
| Fire Detection Range | 1×1m object: 208m; 0.2×0.2m object: 41.7m |
| Event Triggers | Motion, I/O, disk, VCA, temperature alarms |
| Event Actions | Audio alerts, digital output, email, FTP, SD card, white light flashing, horn warning |
| Storage | MicroSD/SDHC/SDXC (up to 256GB) |
| Power | AC 24V, DC 12V, IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12W |
| Connectors | RJ-45, audio I/O, digital I/O (2× in/out), RS485, DC/AC power |
| Operating Conditions | -40°C ~ 60°C; up to 90% humidity |
| Protection Rating | IP66 |
| Dimensions | Ø141.8 × 325 × 106.7 mm |
| Weight | 1960 g |
| Certifications | CE, FCC, UKCA |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, waterproof kit, junction box, sunshield |
