Description

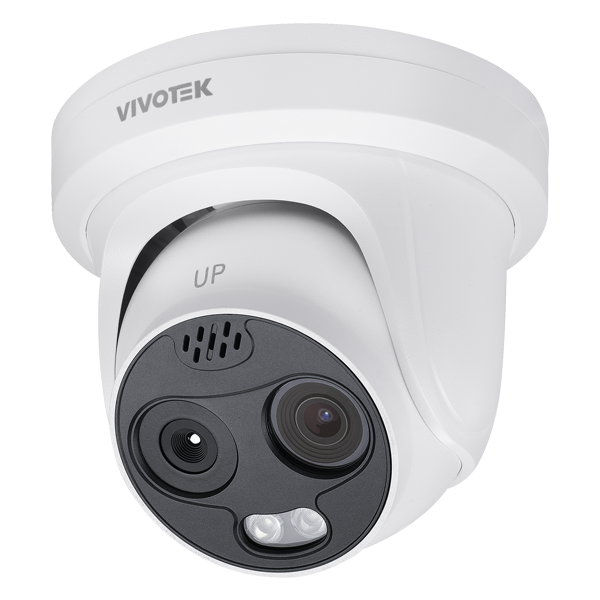

The Vivotek TT9333-E (3.5mm) is a state-of-the-art dual-sensor thermal turret network camera engineered for advanced security, temperature monitoring, and early fire detection applications. Combining a high-sensitivity uncooled VOx microbolometer thermal sensor with a 1/2.7" progressive CMOS optical sensor, this camera delivers exceptional performance in a wide range of critical surveillance scenarios.
Featuring a thermal resolution of 256x192 (scalable to 704x576) and optical resolution up to 2560x1440, the TT9333-E ensures precise detection, monitoring, and visual confirmation even under challenging lighting or environmental conditions. Its 3.5mm fixed thermal lens offers a 48Β° horizontal field of view, while the optical lens provides a wide 92Β° horizontal coverage, making it ideal for perimeter security, industrial monitoring, and hazardous area surveillance.
Equipped with built-in AI analytics, the camera supports intelligent event detection including intrusion, loitering, line crossing, and temperature-based alarms. It can trigger alerts based on temperature thresholds, differences, or rises, and can distinguish between human and vehicle movement. The TT9333-E also enables early fire detection (smoke, flame, and hotspot detection) and precise temperature measurement from -20Β°C to 150Β°C with Β±2Β°C / Β±2% accuracy.
With support for ONVIF Profiles G, S, and T, PoE power input, built-in IR illumination up to 35 meters, and rugged IP66 weatherproof housing, the TT9333-E is engineered for 24/7 operation in the most demanding environments β from industrial facilities and power plants to transportation hubs and high-security installations.
| Category | Specification |
|---|---|
| System | Multimedia SoC (SoC), 16GB Flash, 1GB RAM |
| Image Sensor | Dual sensor: Uncooled VOx Microbolometer + 1/2.7" Progressive CMOS |
| Resolution | Thermal: 256Γ192 (up to 704Γ576); Optical: 2560Γ1440 |
| Lens | Thermal: Fixed 3.5mm, F1.0; Optical: Fixed 4mm, F1.6 |
| Field of View | Thermal: 48Β° (H) Γ 36Β° (V); Optical: 92Β° (H) Γ 46Β° (V) |
| Illumination | Built-in IR up to 35m; White light strobe warning |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Thermal: 25 fps @ 704Γ576; Optical: 25 fps @ 2560Γ1440 |
| Streams | 2 simultaneous streams per sensor |
| Audio | Two-way audio, G.711 / RAW_PCM, Built-in mic & speaker, external I/O |
| Network Protocols | IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, SMTP, HTTPS, 802.1x, QoS, NTP, FTP, UPnP, DDNS, ICMP, IGMP |
| Connectivity | RJ-45 (10/100 Mbps), MicroSD/SDHC/SDXC up to 256GB |
| AI Analytics | Intrusion, Loitering, Line Crossing, Wrong Way, Enter/Leave |
| Temperature Detection | -20Β°C to 150Β°C; Β±2Β°C / Β±2% accuracy; Point/Line/Polygon rules |
| Fire Detection | Fire spot, smoke, flame detection |
| Detection Range (Human) | Detection: 146m; Recognition: 36m; Identification: 18m |
| Detection Range (Vehicle) | Detection: 447m; Recognition: 112m; Identification: 56m |
| Power Input | AC 24V, DC 12V, IEEE 802.3af PoE (Class 3) |
| Power Consumption | Max. 10W |
| Operating Conditions | -40Β°C ~ 60Β°C; Humidity: 90% |
| Protection | IP66 Weatherproof |
| Certifications | CE, FCC, UKCA |
| Dimensions / Weight | Ο140 Γ 117.8 mm / 1040g |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, waterproof accessory bag |
