Description

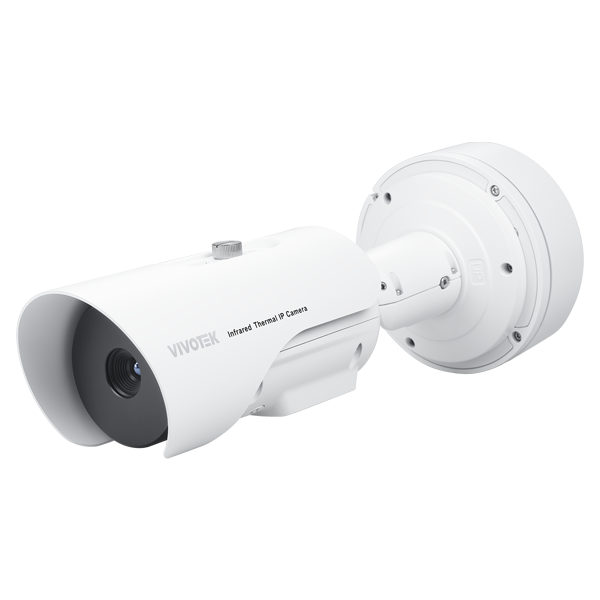

The Vivotek TB9332-E (15mm) Thermal Bullet Network Camera delivers powerful thermal imaging and advanced analytics for professional-grade security and safety monitoring. Equipped with an uncooled VOx microbolometer sensor and a fixed 15mm thermal lens, this camera provides 640 x 512 thermal resolution (scalable to 1280 x 1024) with exceptional sensitivity (NETD < 40 mK), ensuring precise detection even in total darkness or harsh weather conditions.
Ideal for perimeter defense, industrial sites, and early warning applications, the TB9332-E integrates AI-powered analytics and temperature measurement capabilities to detect intrusions, monitor heat anomalies, and identify potential fire risks before they escalate. With a detection range of up to 1,917 meters for vehicles and 624 meters for humans, it excels in large-scale outdoor environments requiring continuous surveillance and safety assurance.
Designed for reliable operation in extreme conditions, the TB9332-E features IP66-rated weatherproof housing, wide temperature tolerance (-40°C to 60°C), and versatile connectivity options including PoE, AC/DC power inputs, and ONVIF compliance for seamless integration. Support for multiple video streams, two-way audio, and smart event notifications via email, FTP, or SD card further enhances its utility as a comprehensive thermal monitoring solution.
| Feature | Specification |
|---|---|
| Image Sensor | Uncooled VOx microbolometer |
| Resolution | 640 x 512 (effective), up to 1280 x 1024 (scaled) |
| Lens Type | Fixed-focal thermal lens |
| Focal Length | 15 mm |
| Aperture | F1.0 |
| Field of View | 32° (H) / 26° (V) |
| Digital Zoom | ePTZ 4x |
| Storage | MicroSD/SDHC/SDXC up to 256GB |
| Pixel Size | 12 µm |
| Spectral Range | 8 ~ 14 µm |
| Thermal Sensitivity (NETD) | < 40 mK |
| Video Compression | H.265, H.264 |
| Max Frame Rate | 25 fps @ 1280 x 1024 |
| Streams | Up to 2 simultaneous streams |
| Audio | Two-way audio, G.711, RAW_PCM |
| Network Protocols | IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPoE, SMTP, HTTPS, 802.1x, QoS, NTP, FTP, UPnP, DDNS, ICMP, IGMP |
| ONVIF Support | Profiles G, S, T |
| AI & Analytics | Temperature alarms, early fire detection, VCA (intrusion, line crossing, loitering, wrong way, enter/leave) |
| Event Actions | Audio clip, digital output, email, FTP, SD card |
| Power Input | AC 24V, DC 12V, IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 5W |
| Dimensions | Ø141.8 x 367.4 mm |
| Weight | 2350 g |
| Environmental Rating | IP66 |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Temperature Measurement Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Measurement Modes | Point, line, polygon (up to 20 rules) |
| Accuracy | ±2°C / ±2% |
| Detection Range (Human) | Up to 624 m (Detection), 156 m (Recognition), 78 m (Identification) |
| Detection Range (Vehicle) | Up to 1917 m (Detection), 479 m (Recognition), 239 m (Identification) |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, waterproof accessory bag, junction box, sunshield |
