Description

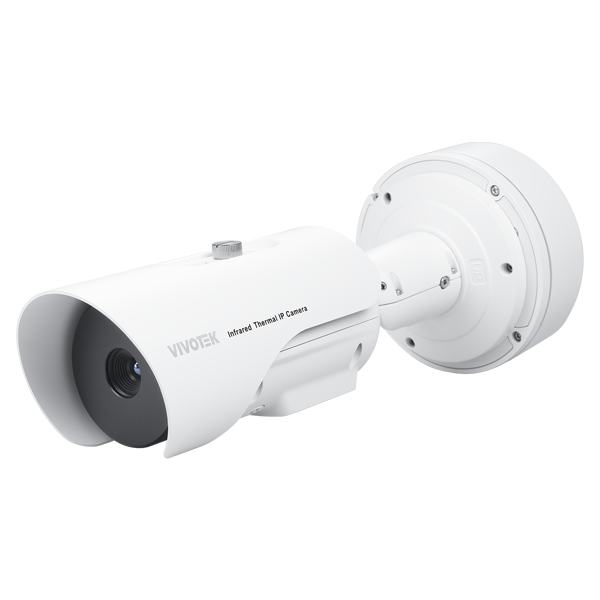

The Vivotek TB9332-E(35mm) is a high-performance thermal bullet network camera engineered for precision temperature monitoring, advanced analytics, and 24/7 perimeter protection in demanding outdoor environments. Equipped with an uncooled VOx microbolometer sensor and a fixed 35 mm thermal lens, this camera delivers crisp 640 × 512 thermal imagery, upscaled to 1280 × 1024, for detailed long-range detection in complete darkness, fog, or smoke.
Designed for mission-critical surveillance, the TB9332-E combines temperature measurement capabilities (–20 °C to 150 °C) with intelligent event detection, enabling rapid response to temperature anomalies, early fire detection, and intrusion scenarios. AI-powered analytics, including intrusion detection, line crossing, loitering, and object classification, enhance situational awareness and minimize false alarms.
With robust IP66 weatherproof housing, wide operating temperature range (–40 °C to 60 °C), and flexible power options (DC 12 V, AC 24 V, or PoE), the TB9332-E is ideal for industrial sites, power plants, transportation infrastructure, and perimeter security applications. It supports dual-stream H.265/H.264 compression, smart motion detection, two-way audio, and ONVIF Profile G/S/T compliance for seamless integration into any security system.
| Category | Details |
|---|---|
| Model | TB9332-E(35mm) Thermal Bullet Network Camera |
| Image Sensor | Uncooled VOx Microbolometer |
| Effective Pixels | 640 × 512 (up to 1280 × 1024 upscale) |
| Lens Type | Fixed-focal thermal lens |
| Focal Length / Aperture | f = 35 mm / F1.0 |
| Field of View | 12° (H), 10° (V) |
| Pixel Size / Spectral Range | 12 µm / 8 – 14 µm |
| Sensitivity (NETD) | < 40 mK |
| Zoom / PTZ | ePTZ with 4× digital zoom |
| Video Compression | H.265, H.264 |
| Max Frame Rate | 25 fps @ 1280 × 1024 |
| Streams | 2 simultaneous streams |
| Image Settings | Video overlay, flip, mirror, rotation, brightness, contrast, sharpness, white balance |
| Audio | Two-way audio, G.711/RAW_PCM compression, external mic input & line output |
| Network Protocols | IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, HTTPS, 802.1x, QOS, NTP, TCP/IP, FTP, UPnP, DDNS, ICMP, IGMP |
| ONVIF Compliance | Profiles G, S, T |
| AI & Analytics | Intrusion, line crossing, loitering, wrong way, enter/leave, object classification (person/vehicle), early fire detection, smoking detection |
| Temperature Measurement | –20 °C ~ 150 °C (–4 °F ~ 302 °F); point, line, polygon (up to 20 rules); ± 2 °C / ± 2 % accuracy |
| Alarm Events | Motion, I/O, VCA, temperature alarms |
| Event Actions | Audio clip, digital output, email, FTP, SD card notification |
| Storage | MicroSD/SDHC/SDXC up to 256 GB |
| Power Supply | DC 12 V, AC 24 V, IEEE 802.3af PoE (Class 2) |
| Power Consumption | Max. 5 W |
| Connectors | RJ-45, audio I/O, DC/AC power, digital I/O, BNC, RS485 |
| Environmental Rating | IP66 |
| Operating Temperature | –40 °C ~ 60 °C (–40 °F ~ 140 °F) |
| Humidity | Up to 90% |
| Certifications | CE, FCC, UKCA |
| Dimensions / Weight | Ø 141.8 × 404.1 mm / 2350 g |
| Detection Range (Human) | 1456 m (Detection), 364 m (Recognition), 182 m (Identification) |
| Detection Range (Vehicle) | 4472 m (Detection), 1118 m (Recognition), 559 m (Identification) |
| Fire Detection Range | Up to 1458 m |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, waterproof kit, junction box, sunshield |
