Description

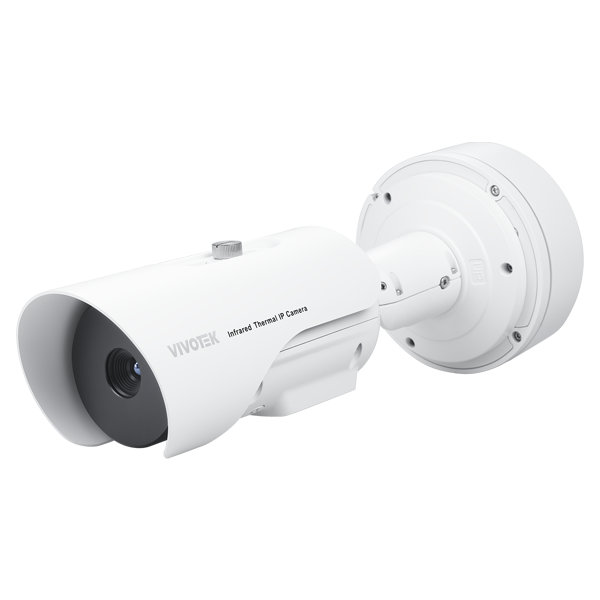

The Vivotek TB9332-E(50mm) is a high-performance thermal bullet network camera designed for advanced perimeter protection, temperature monitoring, and early fire detection in critical infrastructure and industrial environments. Equipped with an uncooled VOx microbolometer sensor, the TB9332-E captures thermal images at 640 x 512 resolution (scalable up to 1280 x 1024) and delivers highly sensitive thermal detection with NETD < 40 mK, ensuring precise image quality even in complete darkness or challenging weather conditions.
Featuring a fixed 50mm F1.0 thermal lens with an 8° horizontal field of view, this camera enables long-range detection capabilities, including human detection up to 2081 meters and vehicle detection up to 6389 meters. It supports advanced analytics powered by a built-in deep learning accelerator, offering robust features such as intrusion detection, line crossing, loitering, temperature alarms, fire spot and smoke detection.
With support for H.265/H.264 compression, dual streaming, and ONVIF compliance, the TB9332-E seamlessly integrates into existing security ecosystems. It also supports two-way audio, multiple event-trigger actions, and edge storage with microSD card support. Engineered for durability, it features an IP66-rated housing and operates reliably in extreme temperatures from -40°C to 60°C, making it ideal for power plants, oil & gas facilities, transportation hubs, and critical perimeter security applications.
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | Uncooled VOx Microbolometer |
| Resolution | 640 x 512 (up to 1280 x 1024 scaled) |
| Lens Type | Fixed-focal thermal lens |
| Focal Length | 50 mm |
| Aperture | F1.0 |
| Field of View | 8° (H) / 7° (V) |
| Pixel Size | 12 µm |
| Spectral Range | 8 – 14 µm |
| Sensitivity | NETD < 40 mK |
| ePTZ | 4x digital zoom |
| Video | |
| Compression | H.265, H.264 |
| Max Frame Rate | 25 fps @ 1280x1024 |
| Streams | 2 simultaneous streams |
| Image Settings | Brightness, contrast, sharpness, white balance, privacy mask |
| Audio | |
| Capability | Two-way audio |
| Compression | G.711, RAW_PCM |
| Interfaces | External mic input, line output |
| Network | |
| Protocols | IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, HTTPS, 802.1x, QOS, NTP, FTP, UPnP, DDNS, ICMP, IGMP |
| Interface | 10/100 Mbps Ethernet (RJ-45), ONVIF Profile G/S/T |
| Users | Up to 10 clients |
| AI Analytics & Applications | |
| Features | Intrusion, line crossing, loitering, temperature alarms, fire spot & smoke detection |
| Compute | Built-in deep learning accelerator (4T) |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) |
| Measurement Rules | Point, line, polygon (up to 20) |
| Accuracy | ±2°C / ±2% |
| Alarms & Events | |
| Event Triggers | Motion, VCA, temperature, disk, I/O alarm |
| Event Actions | Audio clip, digital output, email, FTP, SD card |
| General | |
| Power Input | AC 24V, DC 12V, IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 5W |
| Dimensions | Ø141.8 x 404.1 mm |
| Weight | 2350 g |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Ingress Protection | IP66 |
| Certifications | CE, FCC, UKCA |
| Storage | MicroSD/SDHC/SDXC up to 256GB |
| Detection Range (Johnson’s Criteria) | |
| Human Detection | Up to 2081 m |
| Human Recognition | Up to 520 m |
| Human Identification | Up to 260 m |
| Vehicle Detection | Up to 6389 m |
| Vehicle Recognition | Up to 1597 m |
| Vehicle Identification | Up to 798 m |
| Fire & Smoke Detection | |
| Fire Detection (1x1m) | Up to 2083 m |
| Smoke Detection | Up to 110 m |
