Description

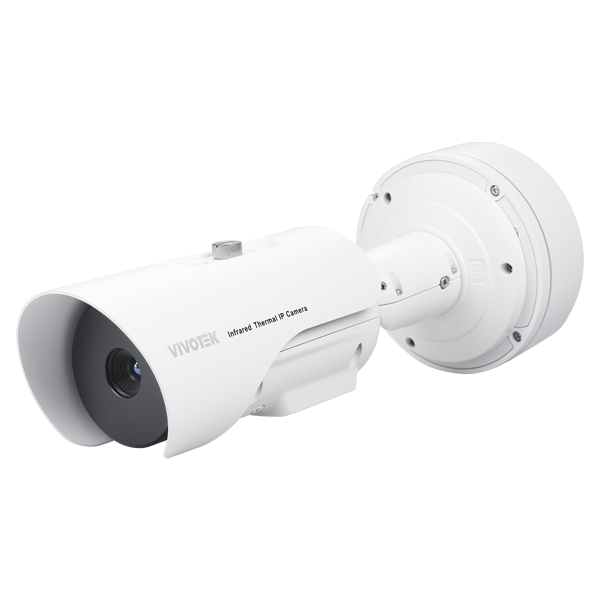

The Vivotek TB9332-E(9mm) is a professional-grade thermal bullet network camera designed to deliver highly accurate thermal imaging, intelligent analytics, and reliable monitoring for industrial, perimeter, and critical infrastructure applications. Featuring an uncooled VOx microbolometer with a resolution of 640x512 (scalable to 1280x1024), this camera provides precise detection in complete darkness, adverse weather, or challenging visibility conditions. Its 9mm fixed-focal thermal lens with a wide 48° horizontal field of view captures detailed thermal data across large areas.
Equipped with advanced temperature measurement capabilities ranging from -20°C to 150°C, the TB9332-E supports up to 20 measurement rules and multiple alarm types, including threshold, temperature rise, and differential alarms. Built-in AI-powered video content analytics (VCA) offer detection for intrusion, line crossing, loitering, and more, with support for early fire and smoke detection, enabling proactive response in high-risk environments.
Designed for robust performance, the TB9332-E is housed in an IP66-rated enclosure for reliable operation in harsh outdoor conditions from -40°C to 60°C. It supports dual H.265/H.264 video streams, two-way audio, ONVIF profiles G, S, and T, and flexible integration with existing surveillance systems. With a powerful deep learning accelerator, high detection ranges (up to 1150m for vehicles), and advanced thermal imaging capabilities, the TB9332-E is ideal for mission-critical monitoring and safety applications.
| Category | Specification |
|---|---|
| Image Sensor | Uncooled VOx Microbolometer |
| Resolution | 640 × 512 (Effective), up to 1280 × 1024 (Scaled) |
| Lens Type | Fixed-focal thermal lens |
| Focal Length | 9 mm |
| Aperture / Iris | F1.0 / Fixed iris |
| Field of View | 48° (H) × 38° (V) |
| Pixel Size / Spectral Range | 12 µm / 8 – 14 µm |
| Thermal Sensitivity (NETD) | < 40 mK |
| Zoom | ePTZ with 4x digital zoom |
| Video Compression | H.265, H.264 |
| Max Frame Rate | 25 fps @ 1280 × 1024 |
| Streams | 2 simultaneous streams |
| Image Settings | Brightness, contrast, sharpness, white balance, video orientation, overlays |
| Audio | Two-way audio, G.711 / RAW_PCM compression |
| Audio Interface | External mic input, external line output |
| Network Protocols | IPv4/IPv6, HTTP, RTSP, RTP, TCP/UDP, DHCP, DNS, PPPOE, HTTPS, 802.1x, NTP, FTP, UPnP, DDNS, ICMP, IGMP |
| ONVIF Compliance | Profiles G, S, T |
| AI & Analytics | Intrusion, line crossing, loitering, wrong-way, enter/leave, temperature alarms, early fire/smoke detection |
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Measurement Accuracy | ±2°C / ±2% |
| Measurement Rules | Point, line, polygon (up to 20) |
| Storage | MicroSD/SDHC/SDXC (up to 256GB) |
| Power Input | AC 24V, DC 12V, IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 5W |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ 140°F), 90% humidity |
| Protection Rating | IP66 weatherproof |
| Dimensions / Weight | Ø141.8 × 367.4 mm / 2350 g |
| Certifications | CE, FCC, UKCA |
| Detection Range (Human) | Detection: 375 m / Recognition: 94 m / Identification: 47 m |
| Detection Range (Vehicle) | Detection: 1150 m / Recognition: 288 m / Identification: 144 m |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, waterproof accessory bag, junction box, sunshield |
