Description

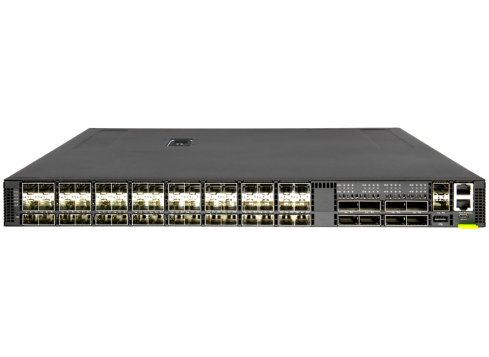

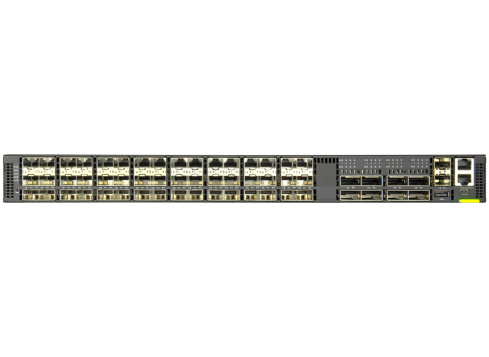

The Edgecore AS7326-56X is a high-performance Top-of-Rack (TOR) data center switch designed for modern hyperscale and enterprise environments. In a compact 1RU form factor, it delivers line-rate Layer 2 and Layer 3 switching performance with a total switching capacity of 2 Tbps. The switch provides 48 × SFP28 ports for 10/25 GbE server connectivity and 8 × QSFP28 uplink ports, each configurable for 40 GbE or 100 GbE connections, or breakout operation for 4 × 25 GbE or 4 × 10 GbE links.

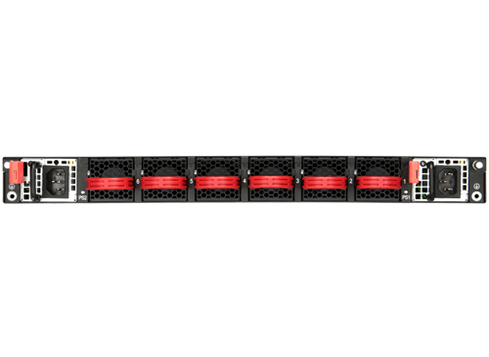

Powered by the Broadcom Trident 3 ASIC and an Intel Xeon D-1518 4-core 2.2 GHz CPU, the AS7326-56X ensures excellent forwarding performance and programmability. Its hot-swappable, load-sharing redundant -48 V DC power supplies and 5 + 1 redundant fan modules support high availability with front-to-back airflow for efficient thermal management.
Pre-loaded with the Open Network Install Environment (ONIE), it allows seamless installation of open-source or commercial Network Operating Systems (NOS), enabling flexible deployment across cloud, service provider, and enterprise data centers.
| Category | Details |
|---|---|
| Model | Edgecore AS7326-56X |
| SKU / Part Number | 7326-56X-O-48V-F / FP4ZZ7656011A |
| Form Factor | 1RU rack-mountable data center switch |
| Switch Silicon | Broadcom BCM56873 (Trident 3) |
| CPU | Intel® Xeon® D-1518 4-Core 2.2 GHz |
| Memory & Storage | 16 GB DDR4 (8 GB × 2 SO-DIMM), 16 MB × 2 SPI Flash, 64 GB M.2 SSD |
| Switching Capacity | 2 Tbps (full duplex) |
| Forwarding Rate | 2 Bpps |
| Packet Buffer | 32 MB integrated |
| MAC Addresses | 32 K min / 288 K max |
| VLAN IDs | 4 K |
| IPv4 Entries | 16 K min / 168 K max host; 32 K LPM (TCAM mode) |
| IPv6 Entries | 8 K min / 100 K max host; 8 K LPM (TCAM mode) |
| Ports | 48 × SFP28 (1/10/25 GbE) + 8 × QSFP28 (40/100 GbE or breakout 4 × 25 GbE or 4 × 10 GbE) |
| Management Interfaces | 1 × RJ-45 console, 1 × RJ-45 100/1000BASE-T management, 1 × USB Type-A |
| Airflow | Front-to-Back |
| Power Supply | Dual hot-swappable, load-sharing -48 V DC PSUs |
| AC/DC Range | DC -36 to -72 V input |
| Cooling | 5 + 1 redundant hot-swappable fans |
| Operating Temperature | 0 °C to 45 °C (F2B airflow) |
| Storage Temperature | –40 °C to 70 °C |
| Operating Humidity | 5 % to 95 % (non-condensing) |
| Dimensions (W × D × H) | 43.84 × 53.6 × 4.35 cm (17.26 × 21.1 × 1.71 in) |
| Weight | 10 kg (22.05 lb) with 2 PSUs |
| Regulatory Compliance | CE Mark, FCC Class A, VCCI Class A, CB, UL/CUL, CCC, BSMI, RoHS 2.0, WEEE Directive 2002/96/EC |
| Software Environment | ONIE (compatible with open source and commercial NOS) |
| Warranty | 3-year standard hardware warranty (extendable) |
