Description

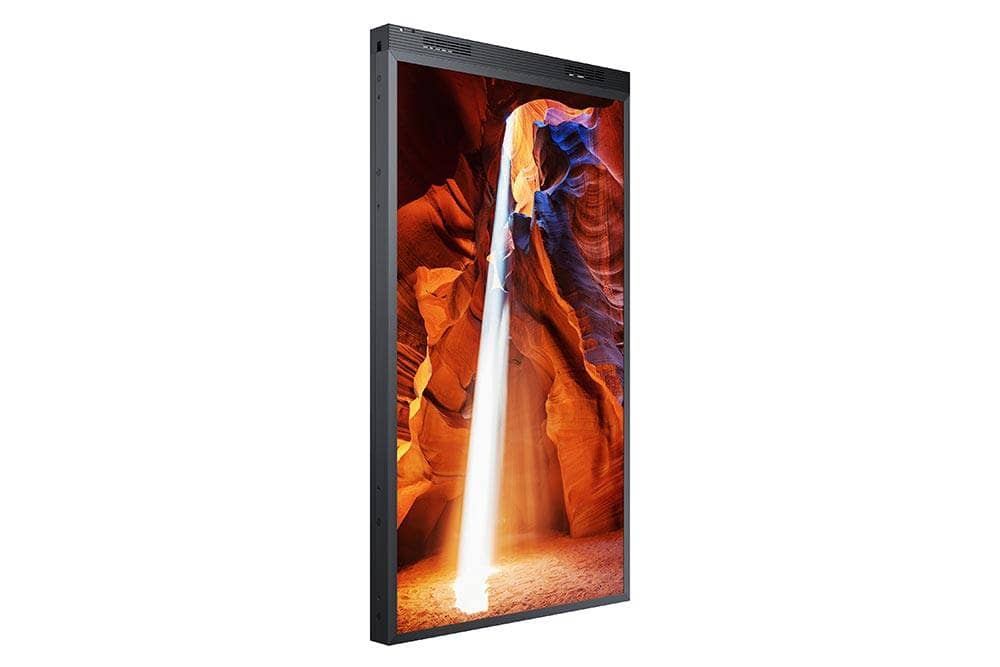

- Dual Display with Bright, Brilliant, Glare-Free Picture Quality
- Designed for Storefront Window Displays
- All-in-one Digital Signage Solution
Panel
- Diagonal Size55"
- TypeE-LED BLU
- Resolution1920*1080 (Full HD)
- Pixel Pitch(mm)0.530 x 0.530
- Active Display Area(mm)1209.6(H) x 680.4(V)
- Brightness(Typ.)3000 / 1000 nit
- Contrast Ratio5000:1
- Viewing Angle(H/V)178/178
- Response Time(G-to-G)6ms(3,000nit), 8ms(1,000nit)
- Display Colors8 bit - 16.7M
- Color Gamut72%
- Operation Hour24/7
- Haze0%
Display
- Dynamic C/R100,000:1
- H-Scanning Frequency15 ~ 135kHz (HDMI)
- V-Scanning Frequency24 ~ 75Hz (HDMI)
- Maximum Pixel Frequency594MHz (HDMI)
Connectivity
Input
- VideoHDMI2.0 (2)
- HDCPHDCP 2.2
- USBUSB 2.0 (2)
- External ControlRS232C (In), RJ45 (In)
- External SensorDetachable Type (IR, Ambient)
Power
- TypeInternal
- Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
- Max[W/h]500
- Typical[W/h]W/W(EU) : 290 US/KOR/ETC : 470 ※ ETC : CHINA, TAIWAN, BRA, CIS
- BTU(Max)1706
- Sleep modeless than 1W
- Off modeless than 0.5W
Mechanical Specification
Dimension (mm)
- Set726.8 x 1299 x 69.5 mm
- Package940 x 1466 x 367 mm
Weight (kg)
- Set42kg
- Package52kg
- Bezel Width (mm)22.8 (even)
Operation
- Operating Temperature0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)
- Humidity10 % ~ 80 %
Feature
- Key FeaturesDual Display Slim design Semi-OutdoorBuilt-in MagicInfo Player S6, SSSP 6.0
- Special FeaturesIP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), WiFi Module Embedded (2ea, one per each display)
Internal Player
- ProcessorCortex A72 1.7GHz Quad-Core CPU
- On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
- Clock Speed1.7GHz
- Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit
- GraphicsGraphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES
- Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
- MultimediaVideo Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG
- IO PortsUSB 2.0
- Operating SystemTizen 4.0 (VDLinux)
Certification
- SafetyCB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
- EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
Accessory
- IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor
Optional
- StandN/A
- MountN/A
- SpecialtyN/A
Media Player
Media Player
- Media PlayerN/A
