Description

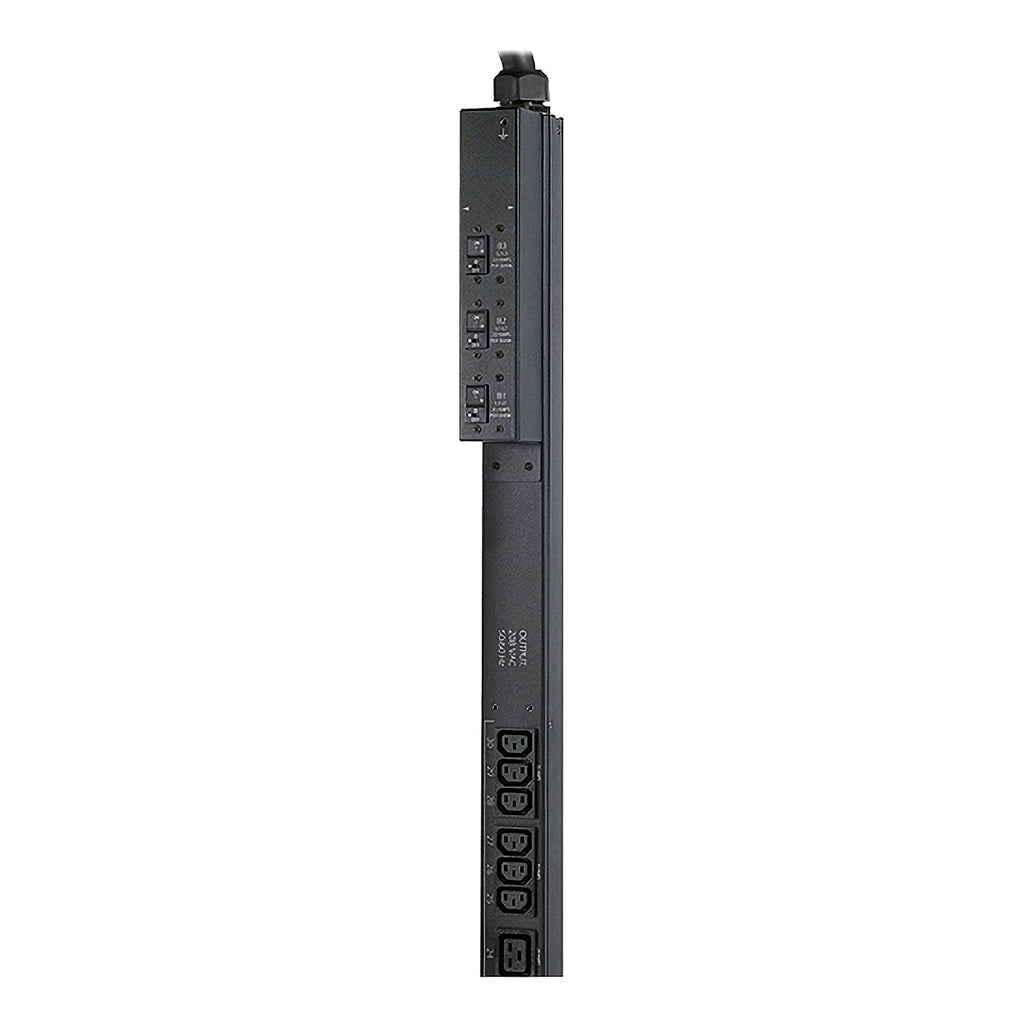

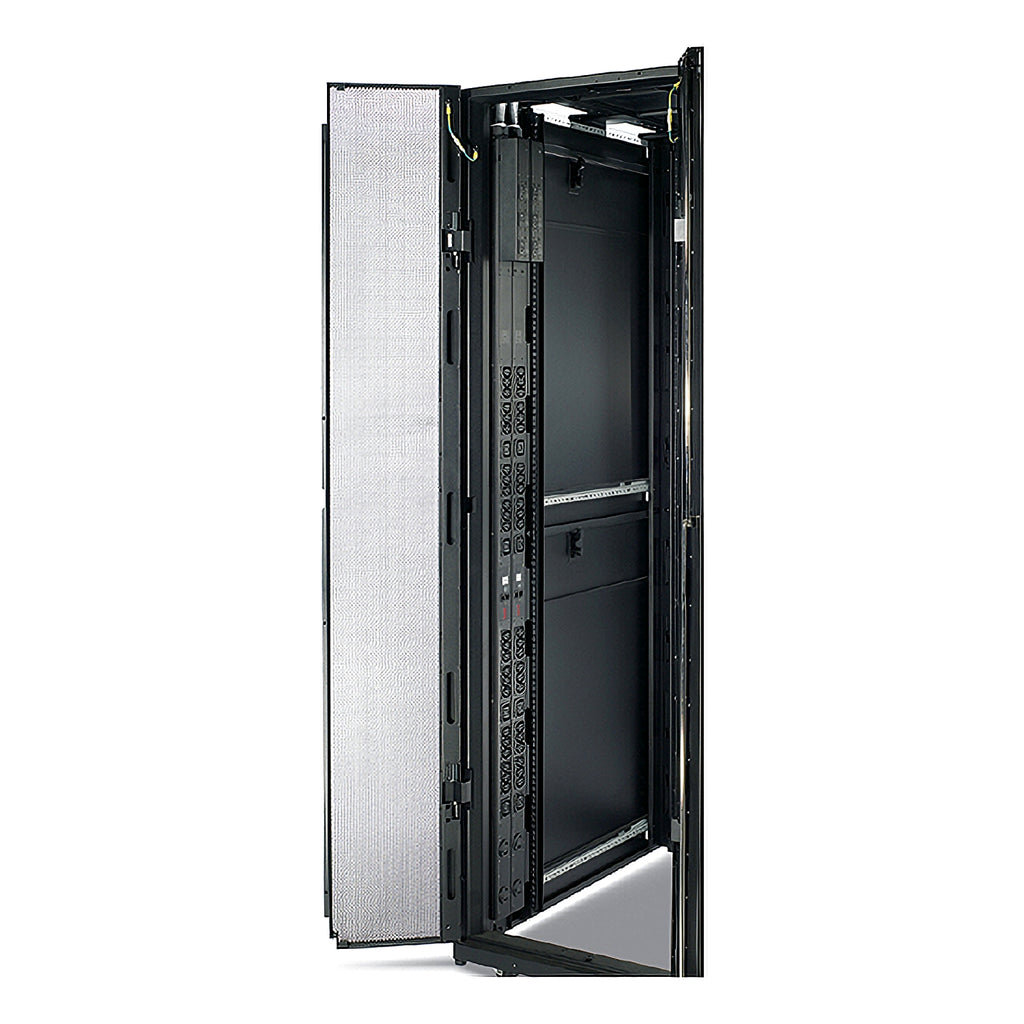

The APC AP7869B is a Metered Rack Power Distribution Unit (PDU) designed for high-density server and networking environments. Supporting 208V 3-phase input and up to 40A current, this ZeroU vertical PDU delivers a total load capacity of 14.4kW through 30 outlets—24 IEC C13, 4 IEC C19, and 2 NEMA L6-30R. Real-time remote monitoring, local digital display, and user-defined alarms help prevent overloads and downtime. It features tool-less mounting, cord retention brackets, and robust certifications for global data center compliance.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP7869B |
| PDU Type | Metered, ZeroU Vertical Mount |
| Input Voltage | 208V 3-phase |
| Input Connector | CS8365 |
| Line Rated Current | 40A (Max: 50A) |
| Load Capacity | 14.4kVA |
| Output Voltage | 208V AC |

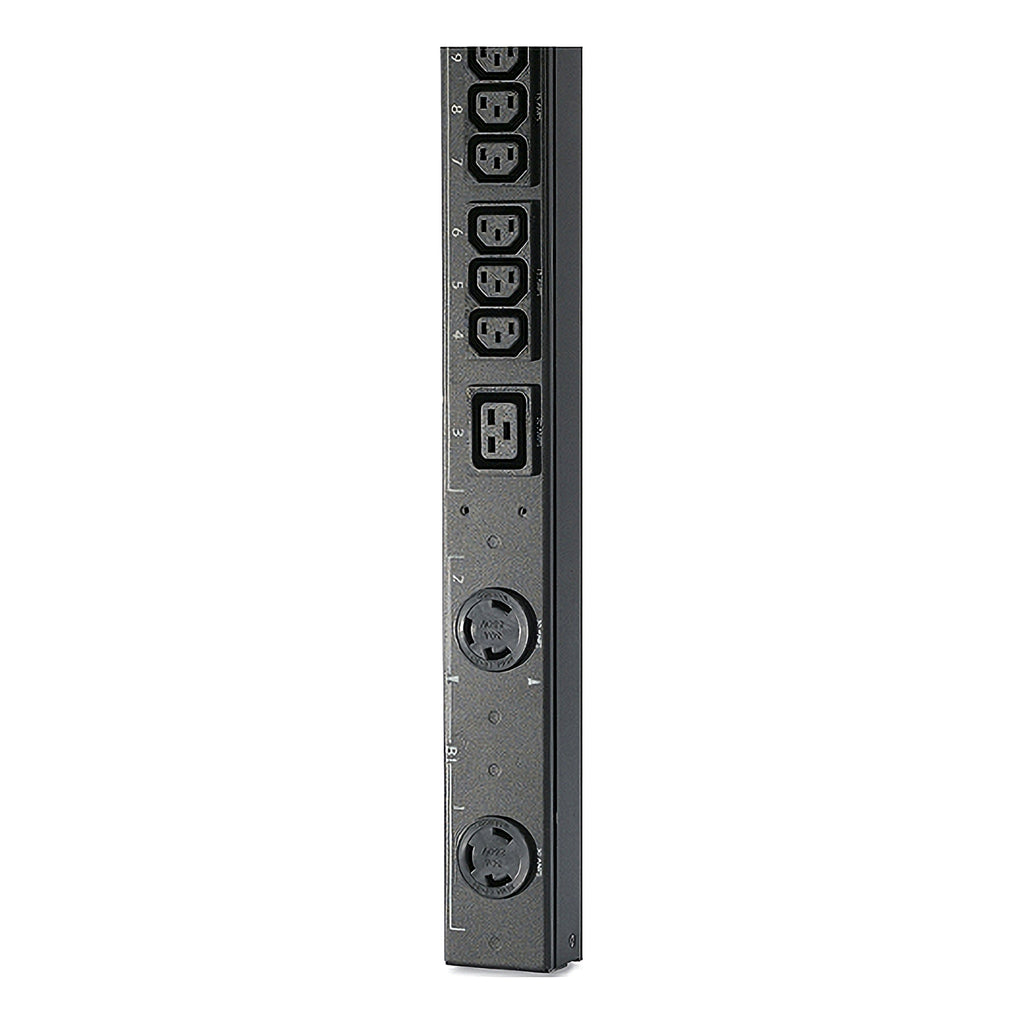

| Outlets | 24x IEC C13, 4x IEC C19, 2x NEMA L6-30R |
| Cord Length | 3 ft (0.9 m) |
| Mounting Type | Vertical Rack-Mount, 0U |
| Height x Width x Depth | 70" x 2.20" x 3.74" (177.8 x 5.6 x 9.5 cm) |
| Weight | 22.84 lb (10.36 kg) |
| Certifications | UL, cUL, CSA, FCC Part 15 Class A, METI Denan |
| Environment | Operating Temp: -5 to 45 °C / 5–95% RH |
| Included Accessories | Cord Retention Bracket, Mounting Kit, Docs |
| Warranty | 2-Year Repair or Replace |
