Description

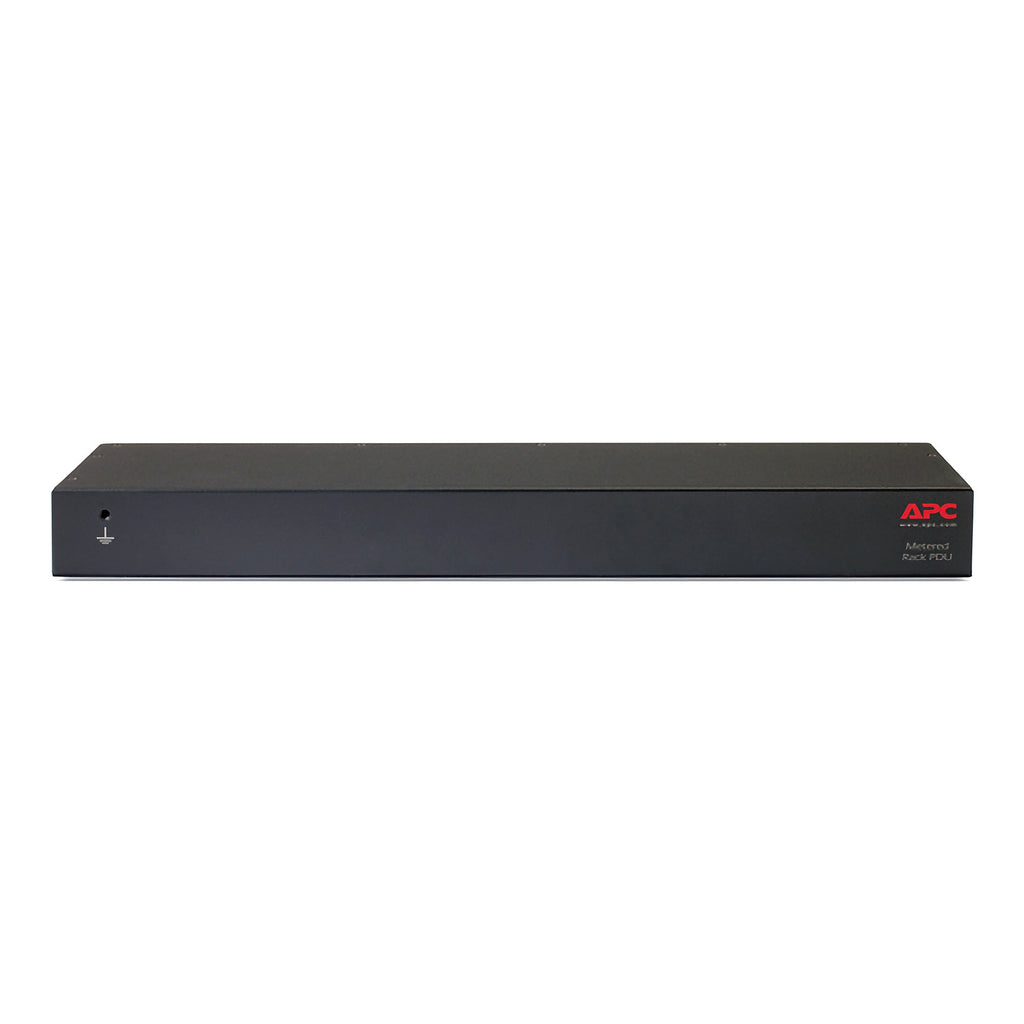

The APC AP7821B Rack PDU is a reliable metered power distribution unit designed for efficient power monitoring and distribution in data centers and network racks. Operating at 208/230V with a 16A capacity, this 1U rack-mount PDU provides real-time load monitoring to help prevent overload conditions and improve power management.

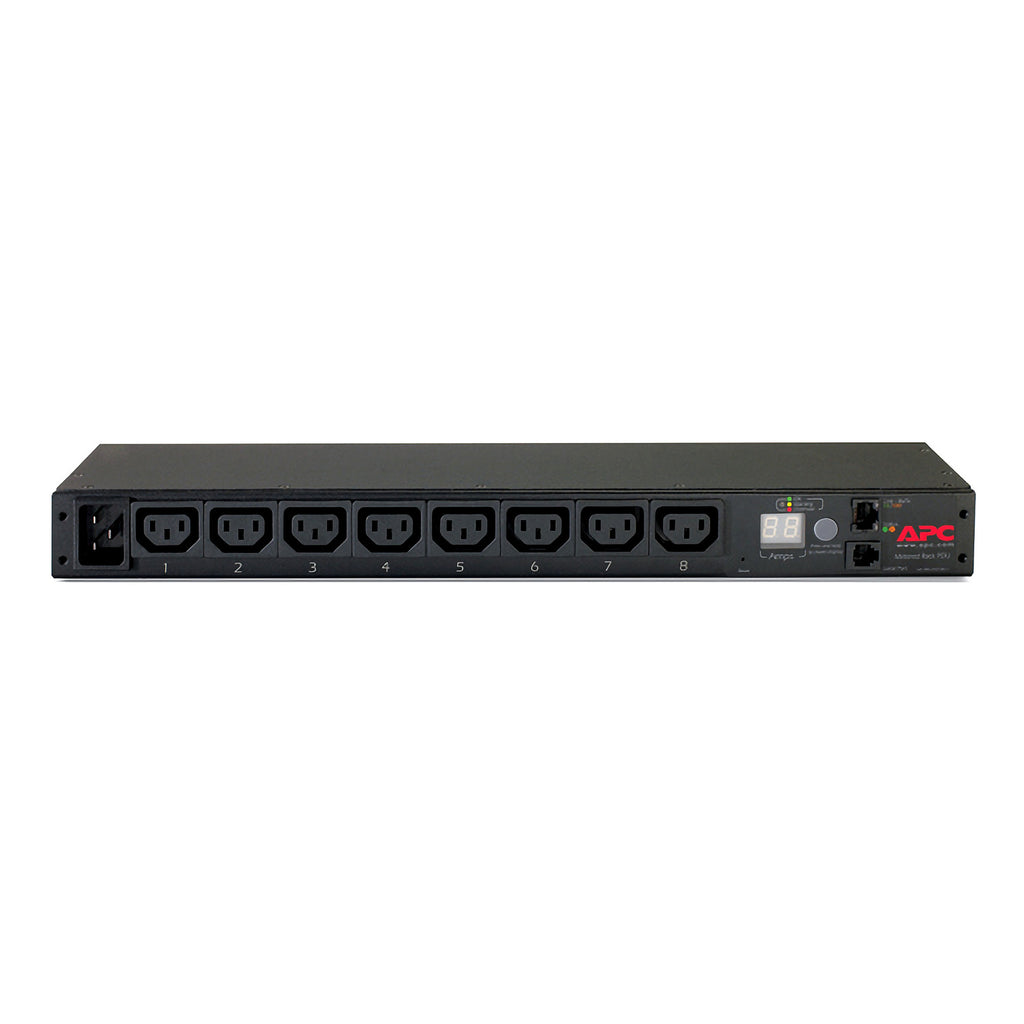

Featuring eight IEC C13 outlets and an IEC C20 input connection, the AP7821B supports high-density IT environments while maintaining a compact horizontal 1U form factor. Its durable construction, front or rear mounting flexibility, and included mounting accessories make it ideal for enterprise, colocation, and edge computing deployments.
| Specification | Details |
|---|---|
| Brand | APC |
| Model | AP7821B |
| Product Type | Rack Power Distribution Unit (PDU) |
| PDU Type | Metered |
| Form Factor | 1U Rack-Mount |
| Mounting Orientation | Horizontal |
| Mounting Location | Front or Rear |
| Input Voltage | 200V / 208V / 230V |
| Output Voltage | 208V / 230V |
| Rated Current | 16A |
| Load Capacity | 3300 VA |
| Input Plug Type | IEC 60320 C20 |
| Outlet Quantity | 8 |
| Outlet Type | IEC 60320 C13 |
| Network Frequency | 50 / 60 Hz |
| Cord Length | 2.4 m |
| Rack Width | 19 in |
| Dimensions (H x W x D) | 44 mm x 444 mm x 102 mm |
| Net Weight | 1.74 kg |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 5% to 95% |
| Warranty | 2 Years |
