Description

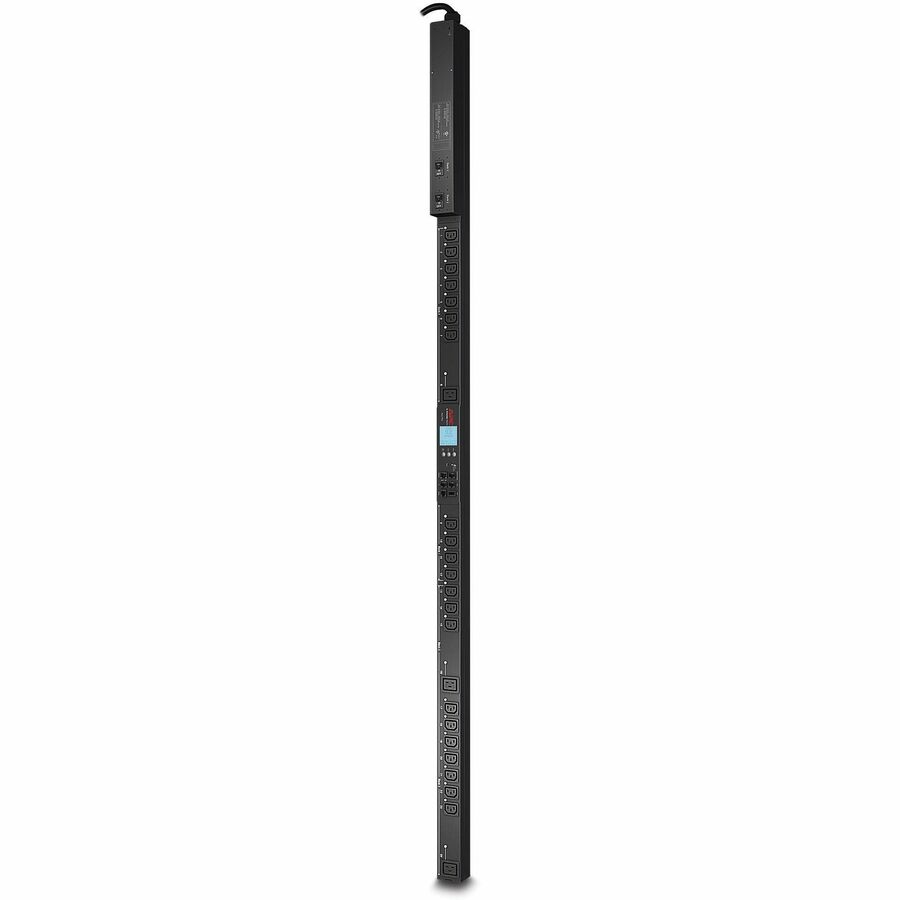

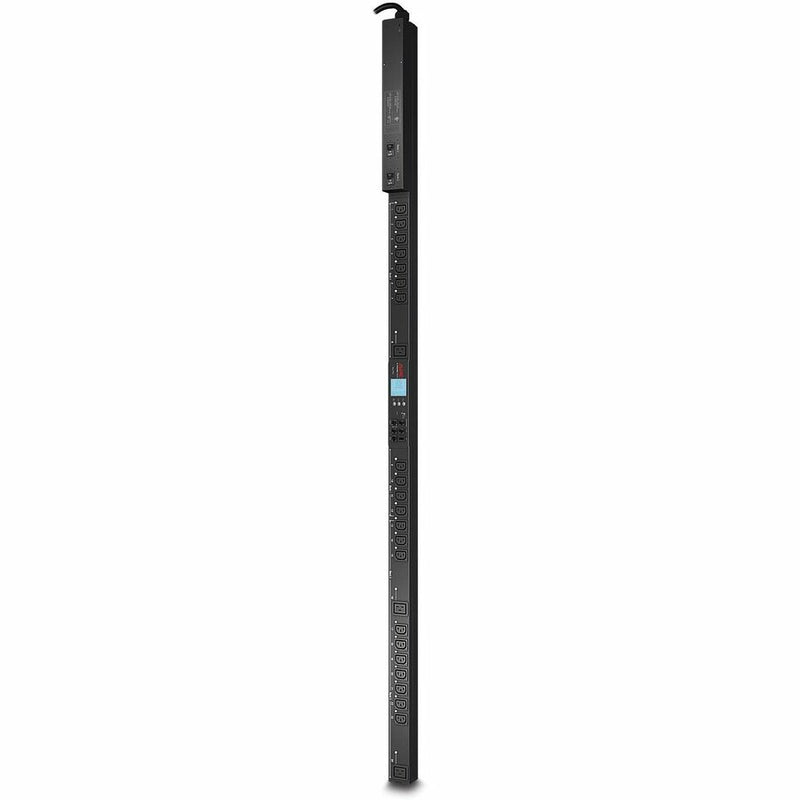

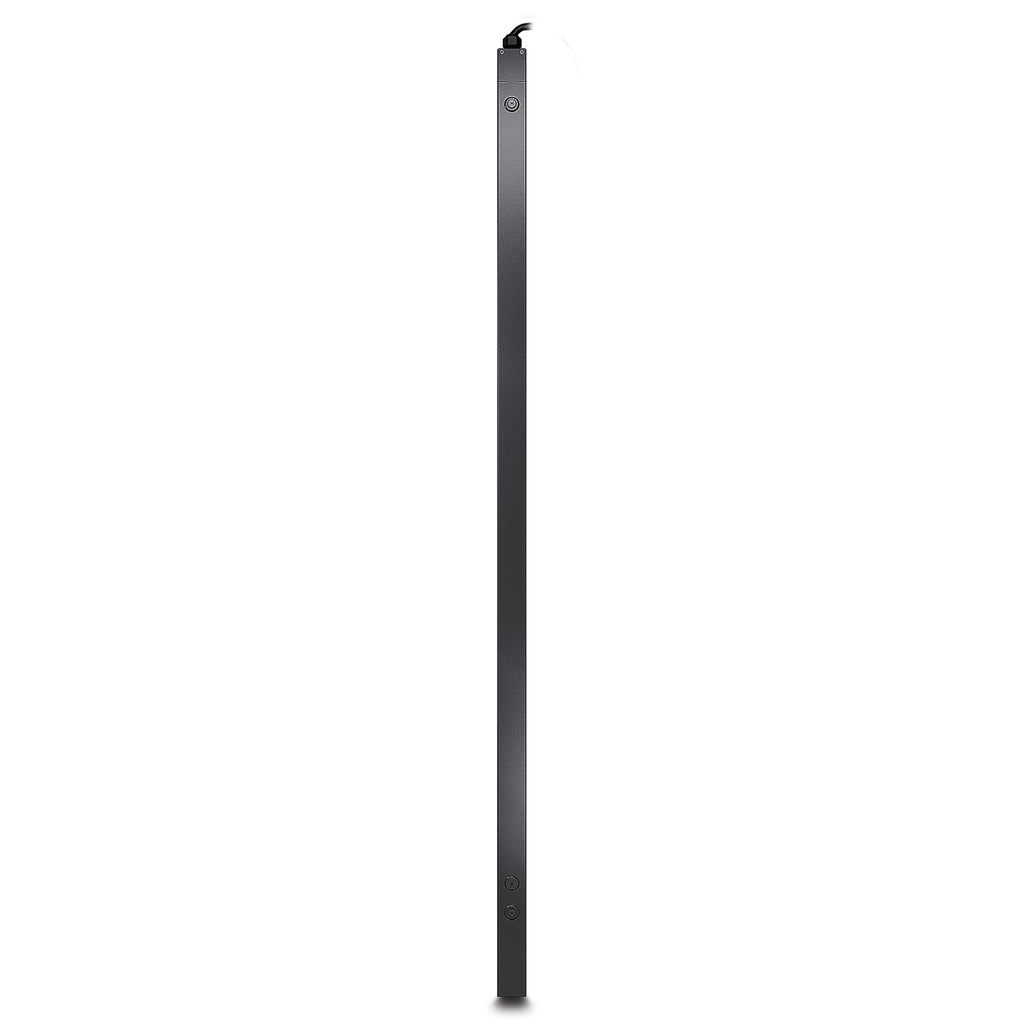

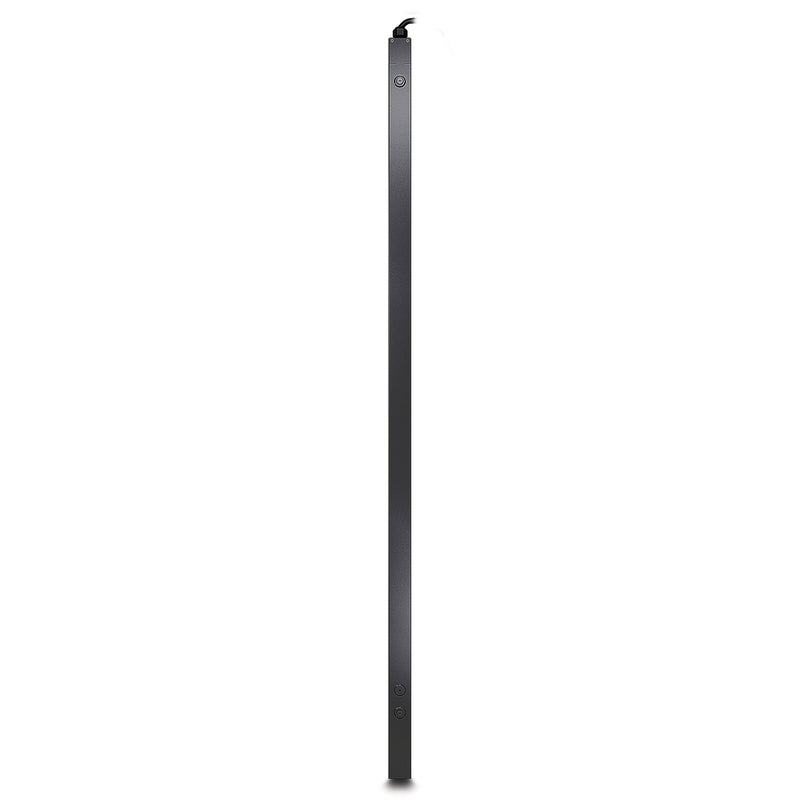

The APC AP8641 is a second-generation Switched Rack PDU that provides intelligent power distribution with real-time remote outlet-level monitoring and control. Designed for colocation, high-density data centers, and enterprise IT environments, it features 21 IEC C13 and 3 IEC C19 outlets, delivering 30A at 200–208V with +/-3% metering accuracy. The zero U vertical design allows toolless installation without sacrificing rack space. Integrated alarm thresholds and EcoStruxure IT compatibility help prevent overloads and enhance energy efficiency. Includes secure access via Web, SNMP, and Telnet.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8641 |
| Form Factor | Zero U Vertical, Toolless Installation |

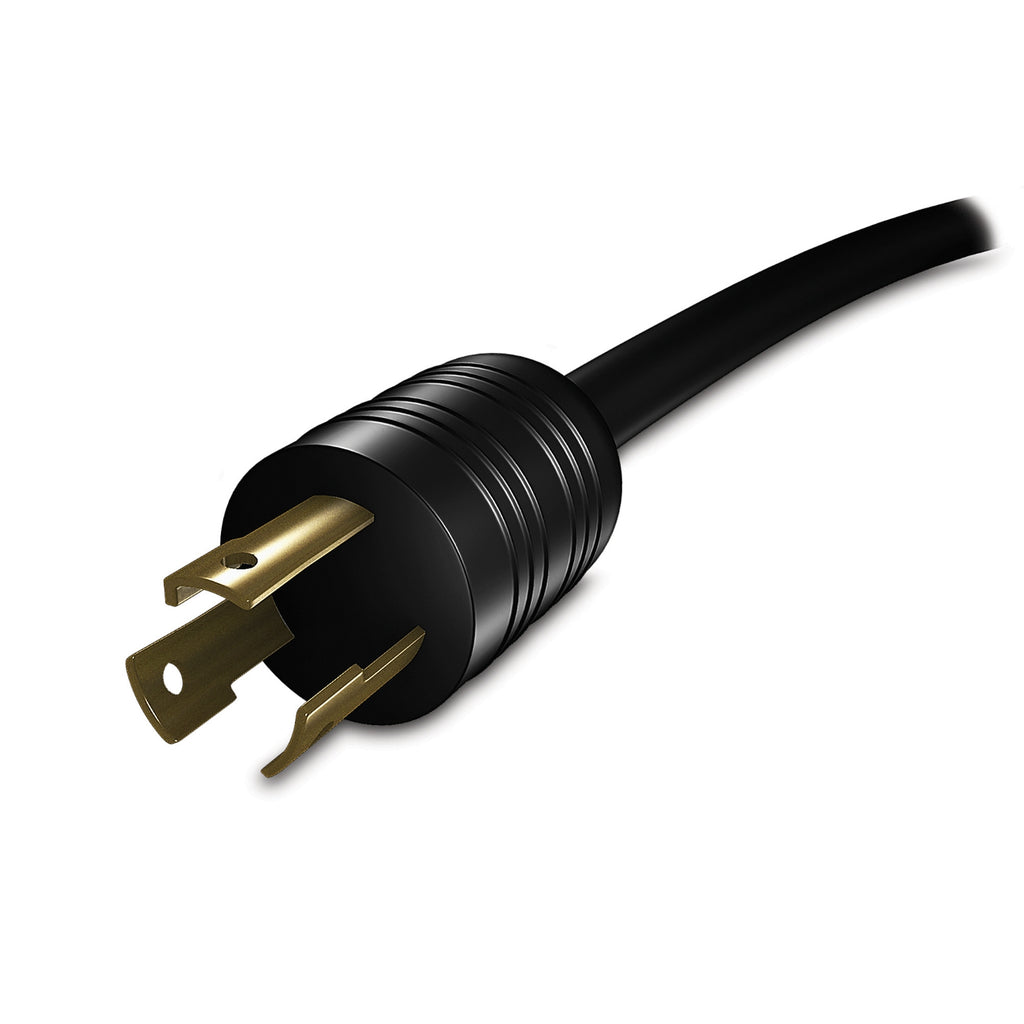

| Input Plug Type | NEMA L6-30P |
| Input Voltage | 200 V / 208 V / 230 V |
| Output Voltage | 200 V / 208 V |
| Output Connections | 21 × IEC 60320 C13, 3 × IEC 60320 C19 |
| Load Capacity | 4992 VA |
| Max Input Current | 30 A |
| Rated Line Current | 24 A |
| Frequency | 50/60 Hz |
| Metering Accuracy | ±3% (Amps, Volts, kW, kWh) |
| Mounting | Rack-Mounted (Vertical) |
| Cord Length | 3.00 m (9.84 ft) |
| Dimensions (H × W × D) | 182.9 × 5.6 × 5.1 cm |
| Weight | 8.23 kg (18.14 lb) |
| Remote Monitoring | Web, SNMP, Telnet; EcoStruxure IT ready |
| Certifications | UL, cUL, VCCI Class A, FCC Part 15 Class A |
| Environmental | -5 to 60°C, 5–95% RH |
| Warranty | 2-Year Repair or Replace |
| GTIN | 731304276975 |
| Country of Origin | India |
