Description

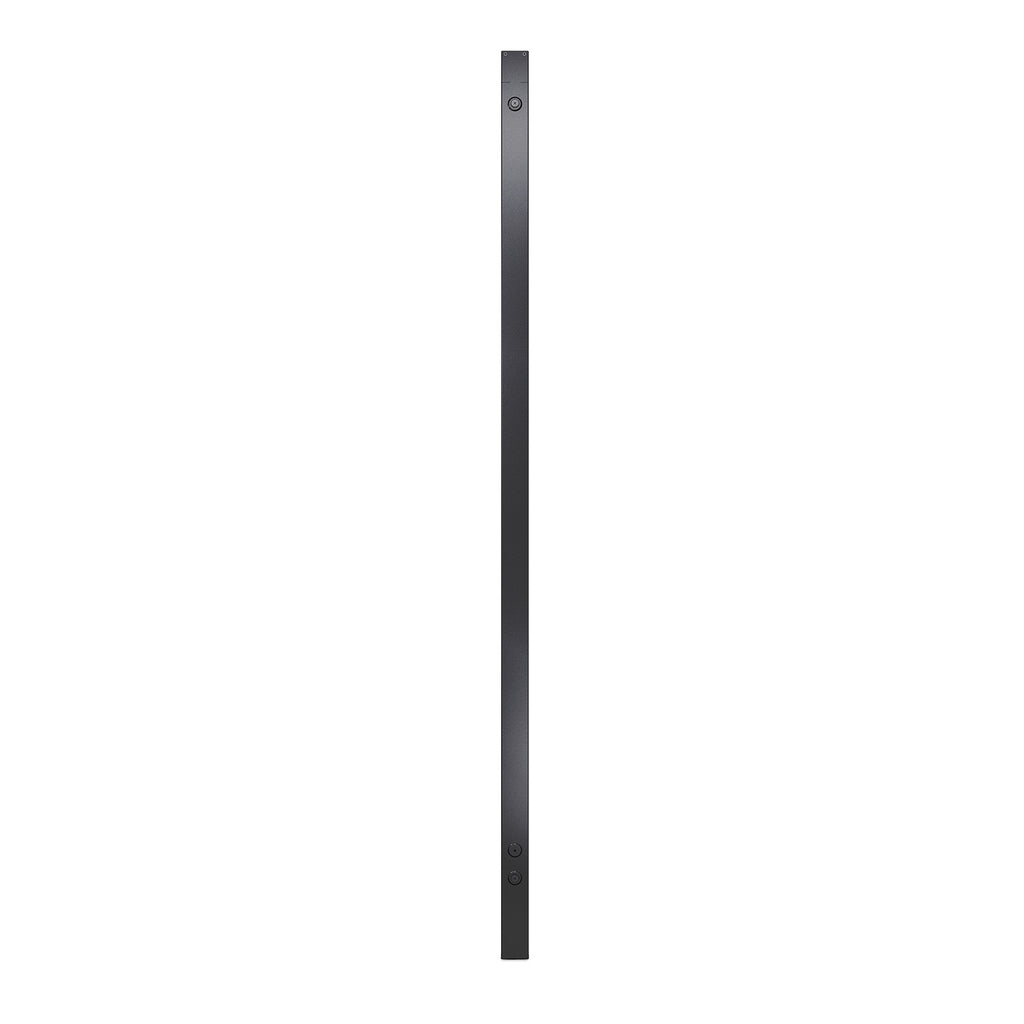

The APC AP8659 Rack PDU 2G provides advanced metering and switching at the outlet level, enabling IT professionals to monitor, control, and manage power distribution with precision. With a compact ZeroU vertical form factor, this switched PDU is ideal for high-density colocation, enterprise data centers, or distributed IT environments.
Key benefits include:
-
Outlet-level power metering with ±3% accuracy for amps, volts, kW, and kWh
-
Remote monitoring and management via EcoStruxure IT, Web, SNMP, or Telnet
-
User-defined alarms to prevent overloads
-
Power sequencing and reboot functionality per outlet
-
Toolless mounting for ZeroU racks
This PDU supports real-time operational insights and helps maintain uptime by proactively managing connected loads.
| Category | Details |
|---|---|
| Product Type | Metered by Outlet with Switching PDU |
| Form Factor | ZeroU, Vertical Rack-mounted |
| Rated Input Voltage | 200V, 208V, 230V |
| Input Plug Type | IEC 60320 C20 |
| Input Frequency | 50/60 Hz |
| Line Rated Current | 16A |
| Max Input Current | 20A |
| Output Voltage | 100–230V |
| Outlet Configuration | 21 × IEC C13, 3 × IEC C19 |
| Load Capacity | 3300 VA |
| Dimensions (HxWxD) | 1829 × 56 × 51 mm (72.01 × 2.2 × 2.01 in) |
| Weight | 6.09 kg (13.43 lb) |
| Certifications | UL Listed, PSE, VCCI Class A, VDE |
| Compliance | EN 55022, EN 61000-3-2/3, FCC Part 15 Class A |
| Operating Temp | -5 to 60°C (23 to 140°F) |
| Humidity Range | 5–95% |
| Mounting Hardware | Included |
| Warranty | 2 Years Repair or Replace |
