Description

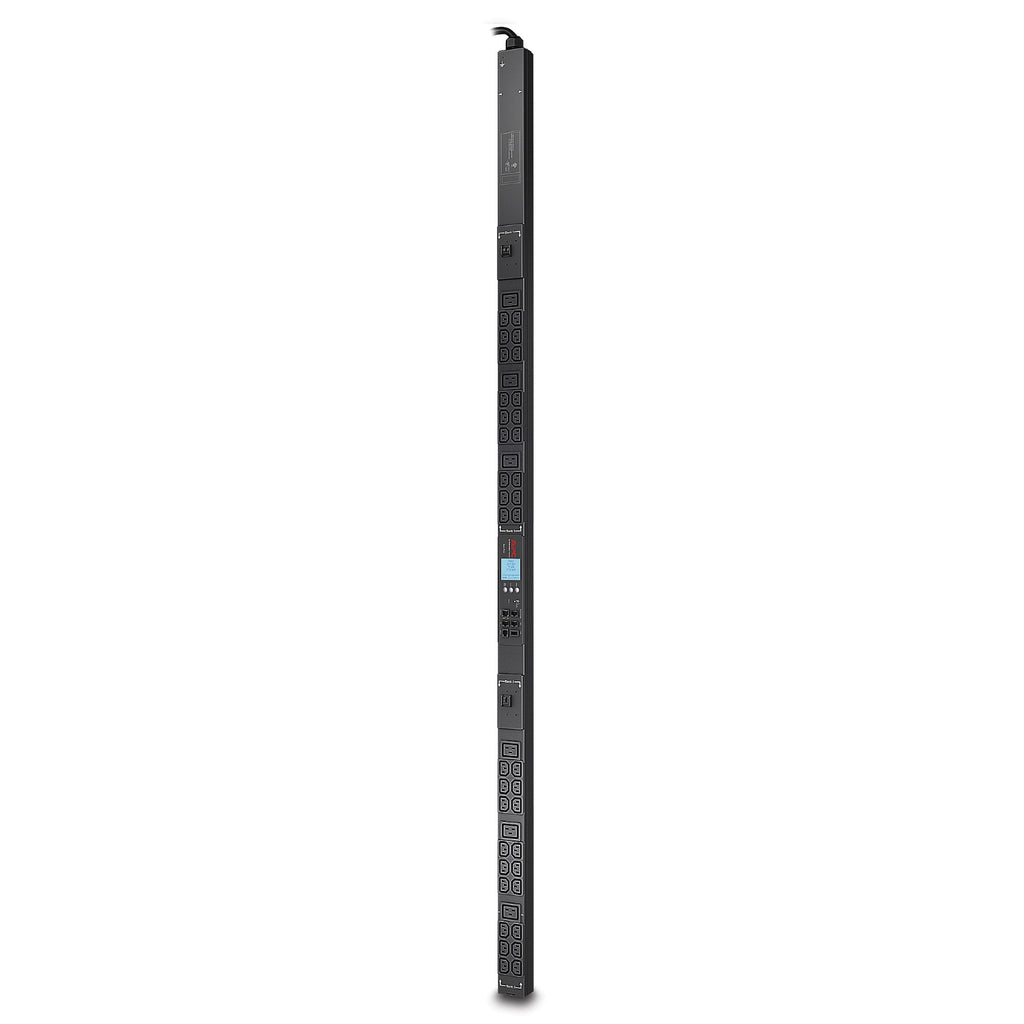

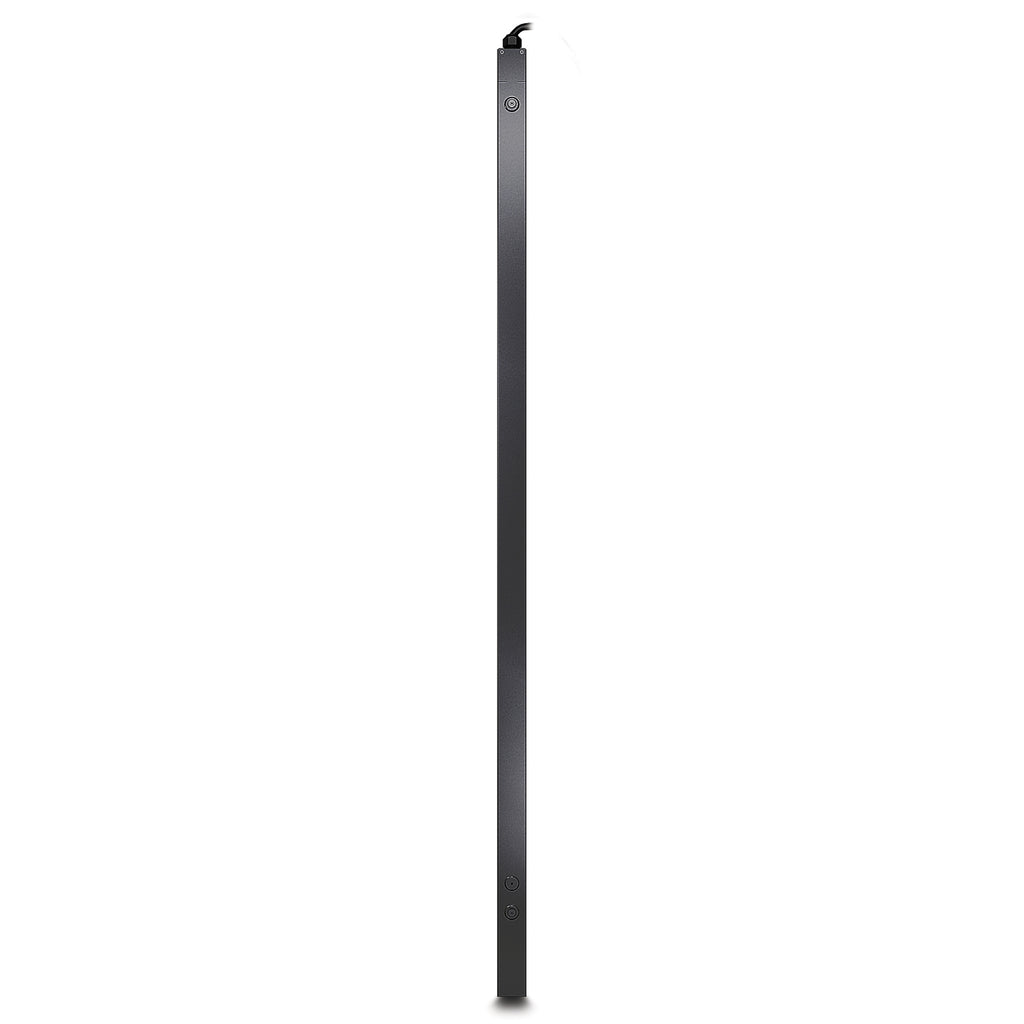

The APC NetShelter AP8841 Metered Rack PDU delivers reliable, high-capacity power distribution for data center and network rack environments. Designed in a vertical 0U form factor, it preserves valuable rack space while supporting high-density IT equipment.
This metered PDU provides real-time visibility into voltage, current, power (kW), and energy consumption (kWh), helping prevent circuit overloads and unplanned downtime. A local display enables at-a-glance monitoring, while remote management via web, SNMP, and command-line interface supports centralized power oversight.
With a 30A NEMA L6-30P input and a total capacity of 5.0kW, the AP8841 features 36 IEC C13 and 6 IEC C19 outlets to accommodate a wide range of rack devices. Locking-compatible IEC outlets reduce the risk of accidental cord disconnections. Tool-less vertical mounting allows fast installation in APC NetShelter enclosures, making this PDU an ideal solution for enterprise, colocation, and edge deployments.
| Specification | Details |
|---|---|
| Brand | APC |
| Manufacturer Part Number | AP8841 |
| Product Type | Metered Rack PDU |
| PDU Form Factor | 0U Vertical |
| Mounting Location | Rack / Enclosure (Tool-less) |

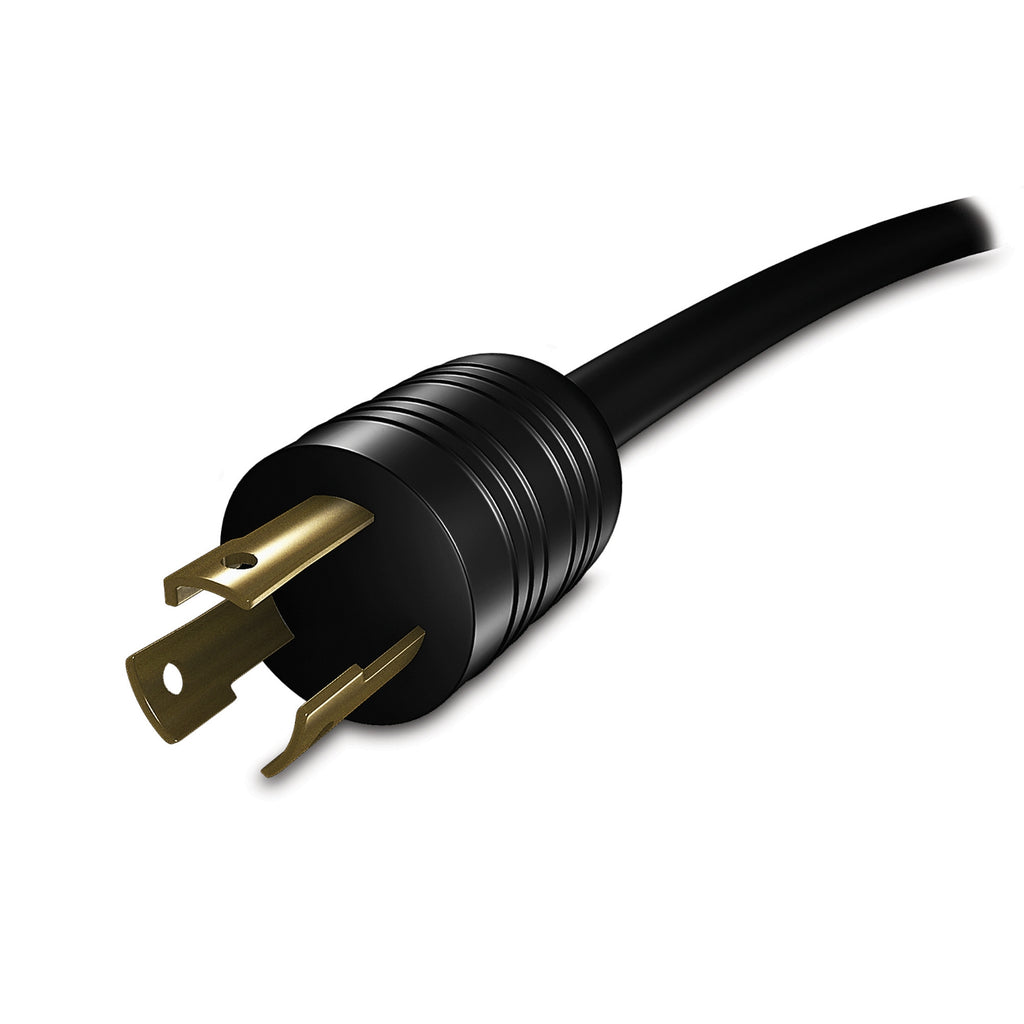

| Input Plug | NEMA L6-30P |
| Input Voltage | 200V / 208V |
| Input Current | 30A |
| Rated Current | 24A |
| Power Capacity | 5.0 kW (4992 VA) |
| Frequency | 50 / 60 Hz |
| Outlet Quantity | 36 × IEC C13, 6 × IEC C19 |
| Outlet Features | Locking-compatible IEC |
| Monitoring | Voltage, Current, kW, kWh |
| Display | Integrated Local Display |
| Remote Management | Web, SNMP, CLI |
| Environmental Monitoring | External sensor support (optional) |
| Cord Length | 9.5 ft (2.9 m) |
| Color | Black |
| Dimensions (H × W × D) | 70.5 × 2.2 × 1.7 in |
| Weight | 15.08 lb |
| Warranty | 2 Years |
