Description

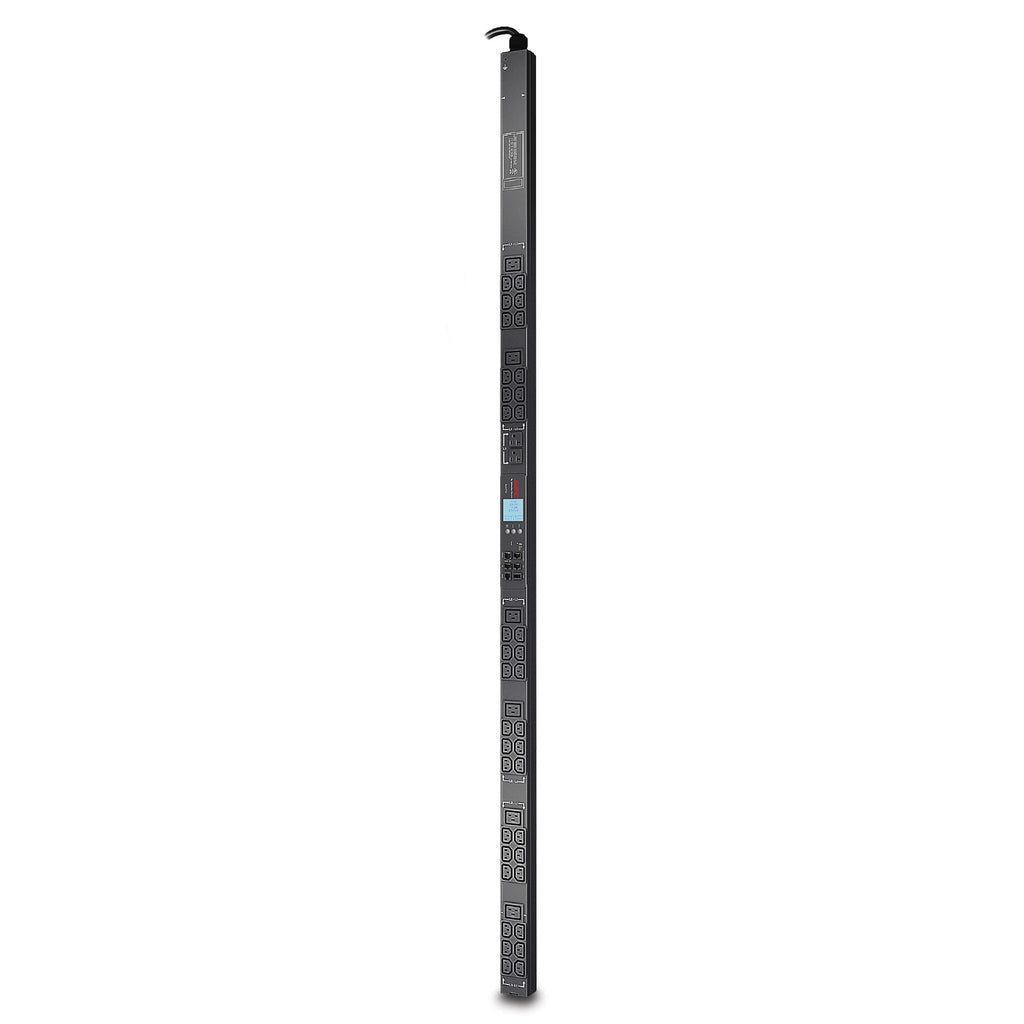

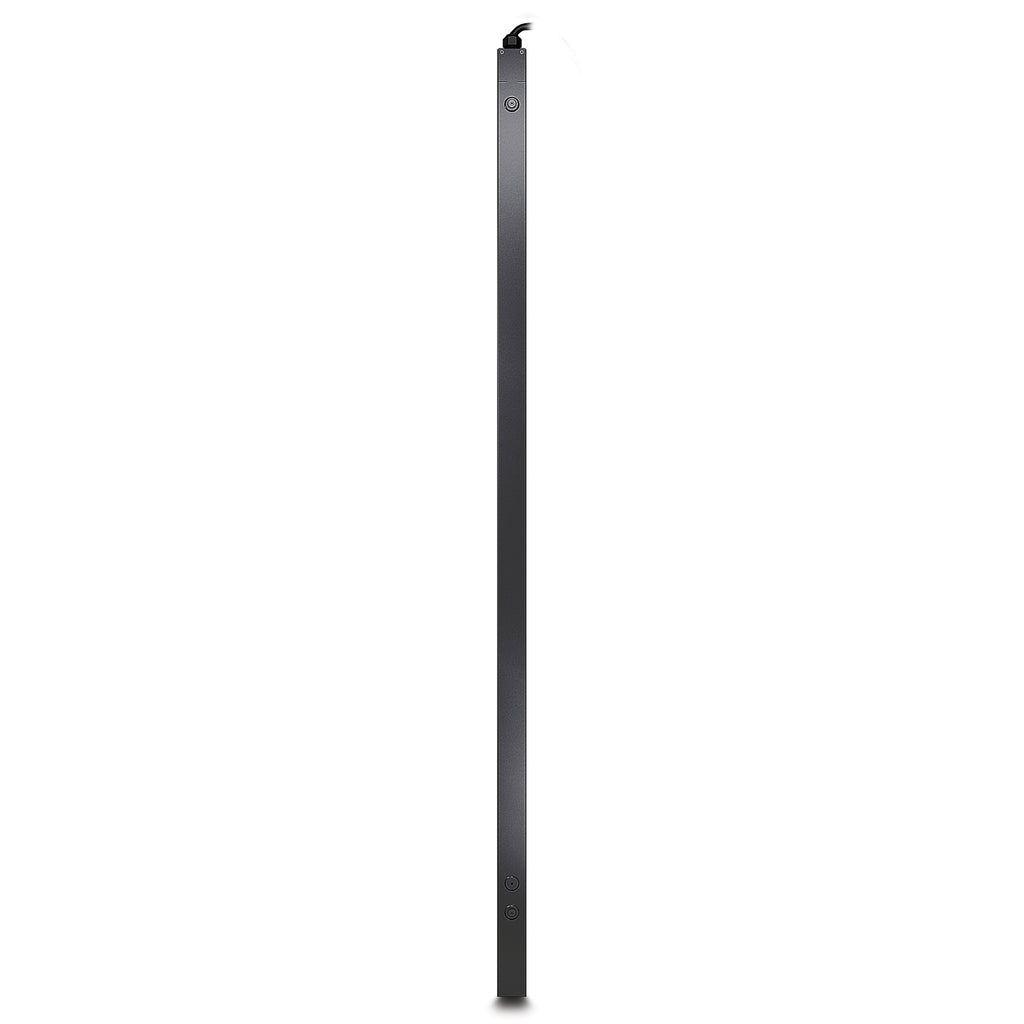

The APC NetShelter AP8861 is a high-density, metered rack power distribution unit designed for enterprise and data center environments requiring reliable three-phase power delivery and real-time monitoring. This 0U vertical PDU distributes up to 5.7kW of power from a single 208V three-phase input, making it ideal for space-constrained racks with high power demands.
Featuring a combination of IEC C13, IEC C19, and NEMA outlets, the AP8861 supports a wide range of IT equipment while enabling balanced load distribution. Integrated metering provides real-time visibility into voltage, current, power, and energy usage, helping prevent overloads and support effective capacity planning.
The PDU includes network-based management for remote monitoring and configuration, along with a local display for quick status checks at the rack. Locking IEC receptacles reduce the risk of accidental disconnections, while the tool-less vertical mounting design preserves valuable rack space and simplifies installation.
| Specification | Details |
|---|---|
| Brand | APC |
| Model | AP8861 |
| Product Type | Metered Rack PDU |
| Form Factor | 0U Vertical |
| Input Voltage | 208V, 3-Phase |

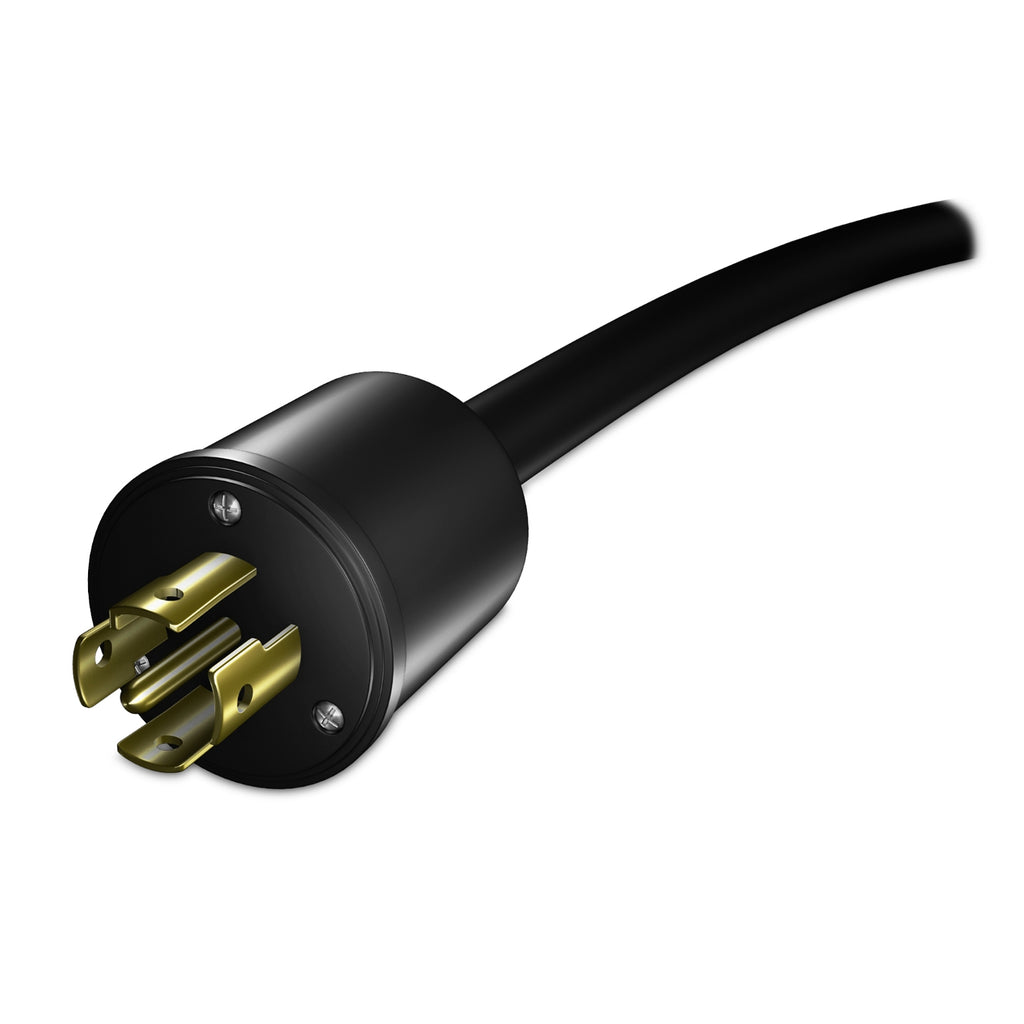

| Input Plug | NEMA L21-20P |
| Rated Power | 5.7 kW |
| Line Rated Current | 16A |
| Maximum Line Current | 20A |
| Input Frequency | 50 / 60 Hz |
| Outlet Configuration | 36 × IEC C13, 6 × IEC C19, 2 × NEMA 5-20R |
| Output Voltage | 120V / 208V |
| Metering | Voltage, Current, Real Power (kW), Energy (kWh) |
| Network Management | Web, SNMP, CLI |
| Mounting | Vertical, Tool-less |
| Rack Compatibility | Standard 19-inch racks |
| Cord Length | 5.97 ft (1.82 m) |
| Color | Black |
| Warranty | 2 Years |
