Description

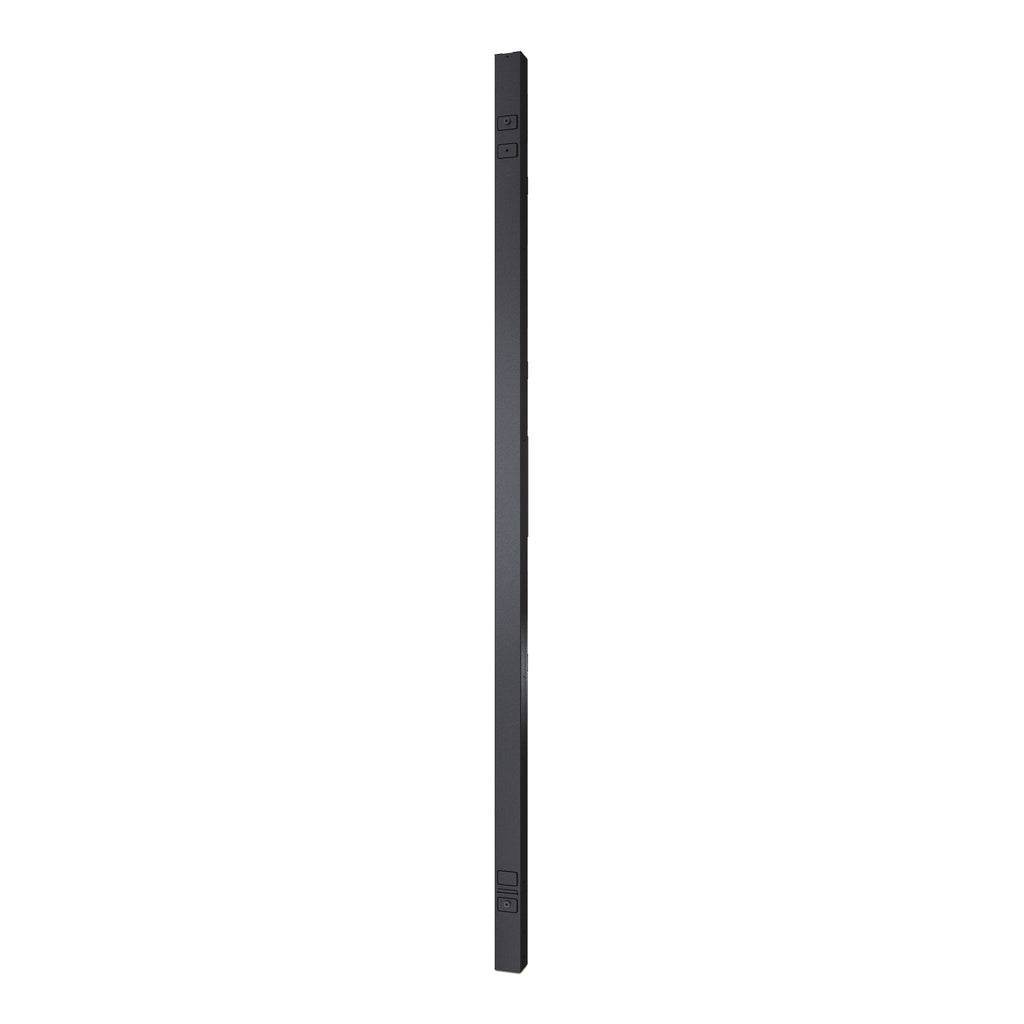

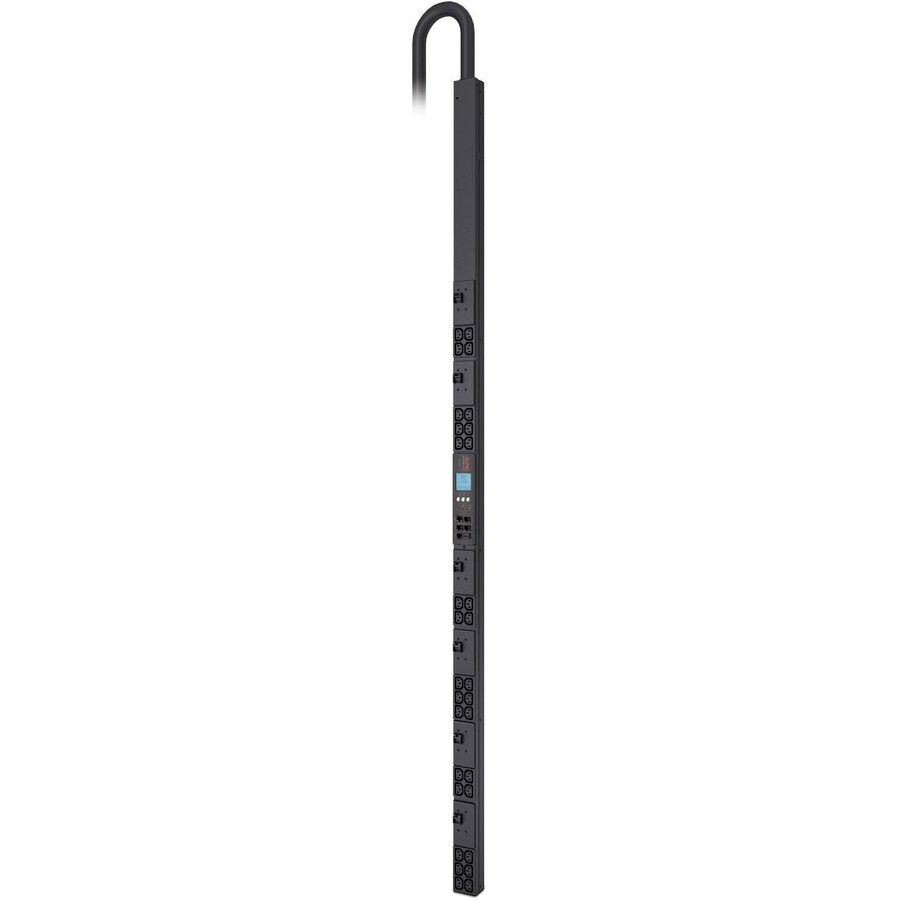

The APC AP8867 Metered Rack PDU delivers reliable, high-density power distribution for colocation facilities, data centers, or distributed IT environments. This 0U vertical PDU provides 30 IEC C13 outlets and is capable of delivering up to 17.3kW at 208V 3-phase. Designed with secure, tool-less Zero U installation and locking IEC receptacles, it minimizes accidental disconnections and load drops.
Real-time remote monitoring via Web, SNMP, CLI, or integration with EcoStruxure™ IT helps prevent overloads, track usage, and optimize energy efficiency. A user-friendly LCD interface and support for daisy-chaining (up to 4 PDUs per IP address) further simplify management. With +/-3% metering accuracy, alarm threshold configuration, and environmental monitoring support, the AP8867 helps you stay in control of your rack power.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8867 |
| Product Type | Metered Rack PDU |
| Rack Units | 0U (Vertical Mount) |
| Outlets | 30 × IEC 60320 C13 |

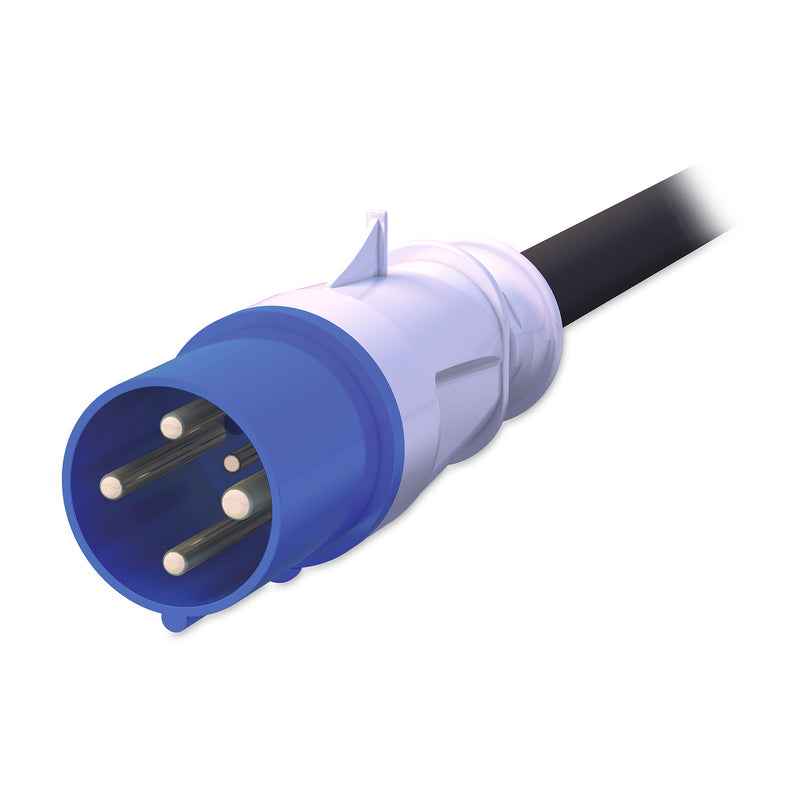

| Input Plug Type | IEC 60309 60A 3P+PE |
| Input Voltage | 208V 3-Phase |
| Load Capacity | 17.3kW (48A max line current) |
| Cord Length | 6 ft (1.8 m) |
| Monitoring Interface | Web, SNMP, CLI, EcoStruxure IT |

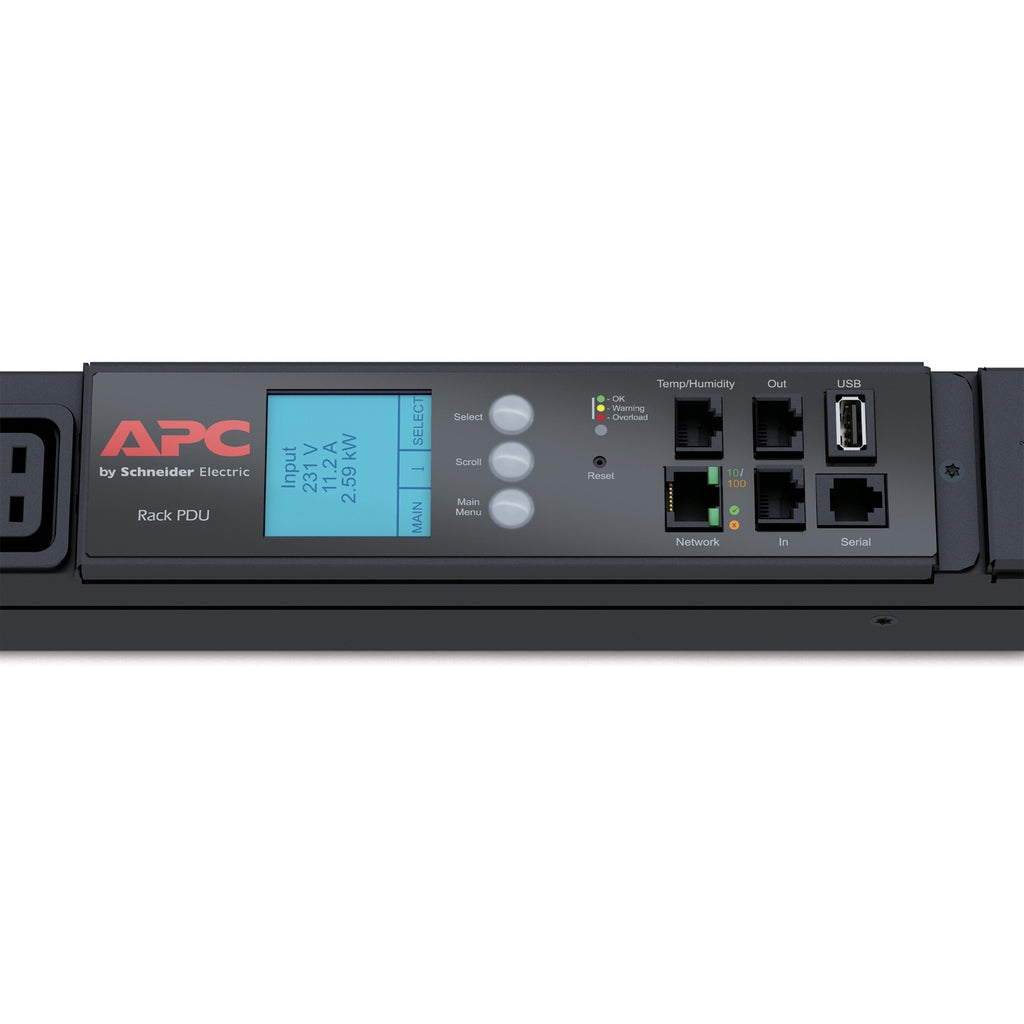

| Display | Local LCD for amps, volts, watts, energy |
| Ambient Operating Temp | -5 to 60 °C (23 to 140 °F) |
| Mounting Type | Rack-mounted (Vertical/Side Mount) |
| Environmental Monitoring | Port available (AP9335T/TH sold separately) |
| Certifications | UL Listed, cUL, FCC Part 15 Class A, VCCI |
| Dimensions (HxWxD) | 72.01 × 2.20 × 2.01 in (182.9 × 5.6 × 5.1 cm) |
| Weight | 22.5 lb (10.2 kg) |
| Warranty | 2-Year Repair or Replace |
