Description

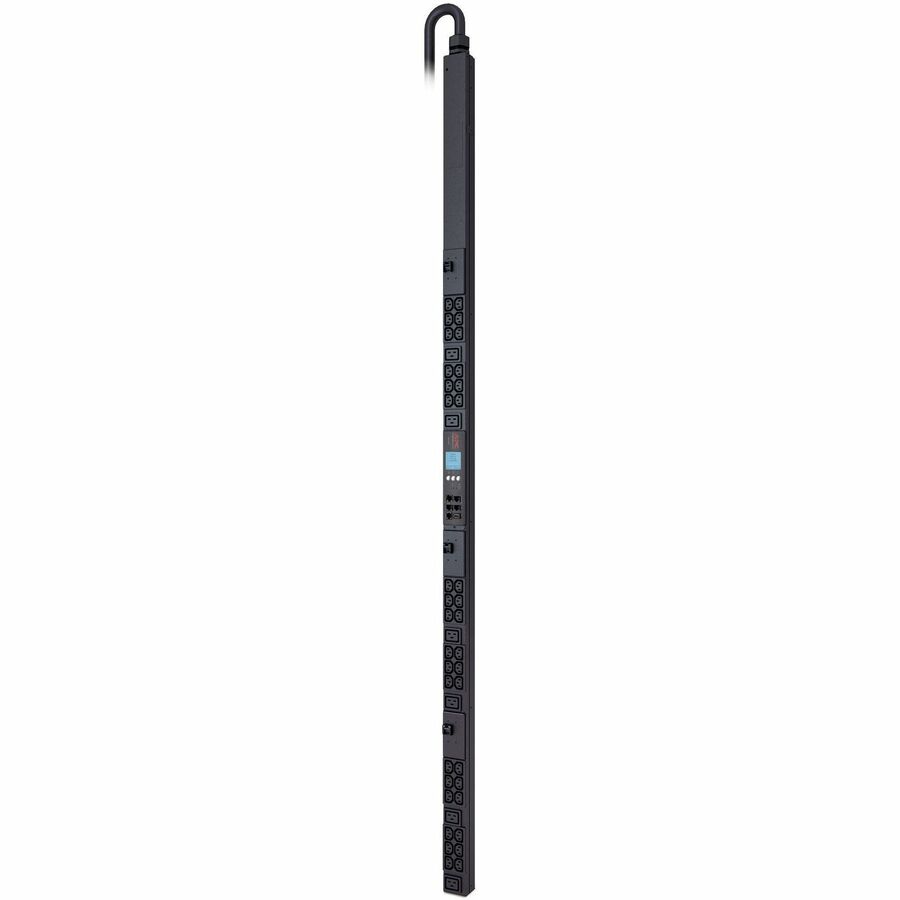

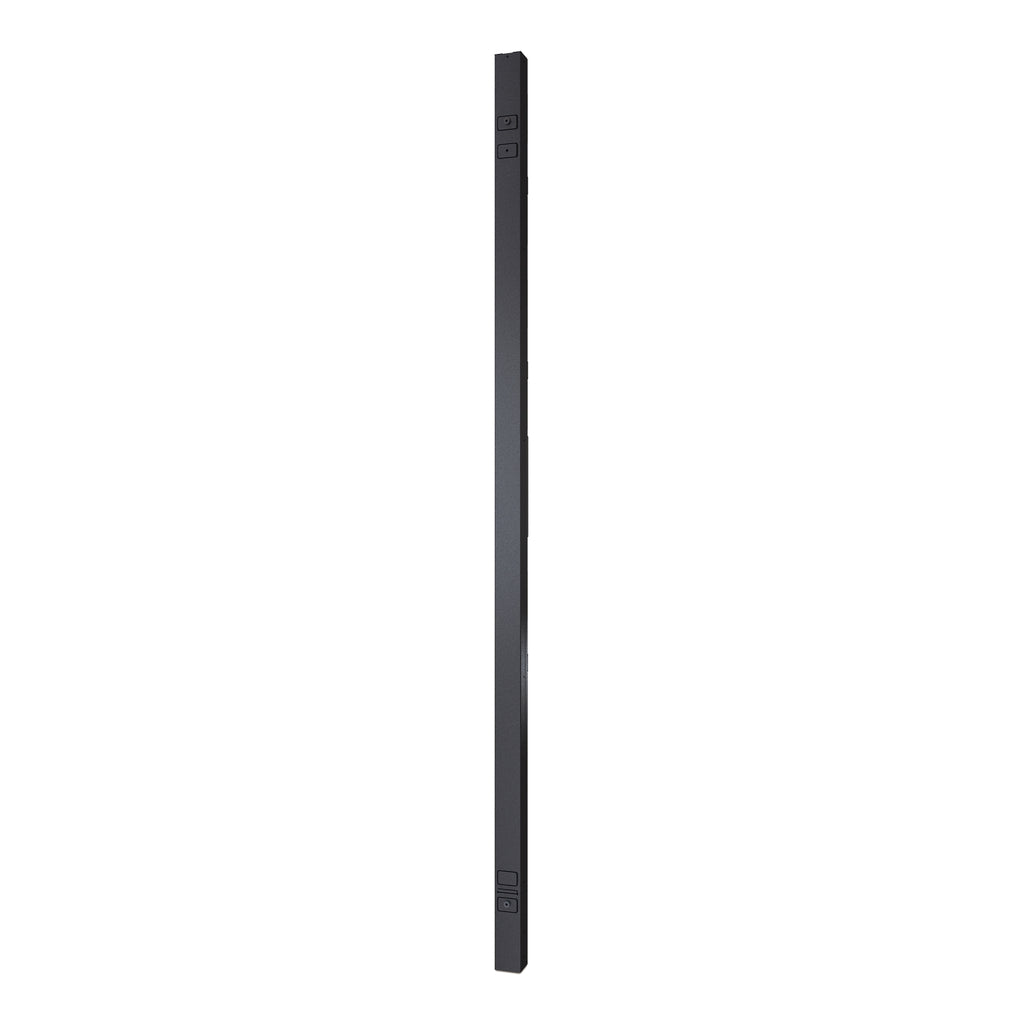

The APC AP8868 is a vertical, zero U metered Rack Power Distribution Unit (PDU) designed to deliver reliable and monitored power distribution for high-density IT environments. It provides remote monitoring of real-time load via a network management interface supporting Web, SNMP, and CLI access. With (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets, this unit ensures sufficient connectivity for servers, switches, and network devices. It supports energy management with detailed metering of volts, amps, kW, and kWh. The vertical design saves rack space, while locking IEC outlets help prevent accidental disconnections. Fully compatible with APC NetShelter enclosures and includes installation hardware.
| Category | Details |
|---|---|
| Brand | APC |
| Model | AP8868 |
| Product Type | Metered Rack PDU |
| Form Factor | 0U Vertical Mount |

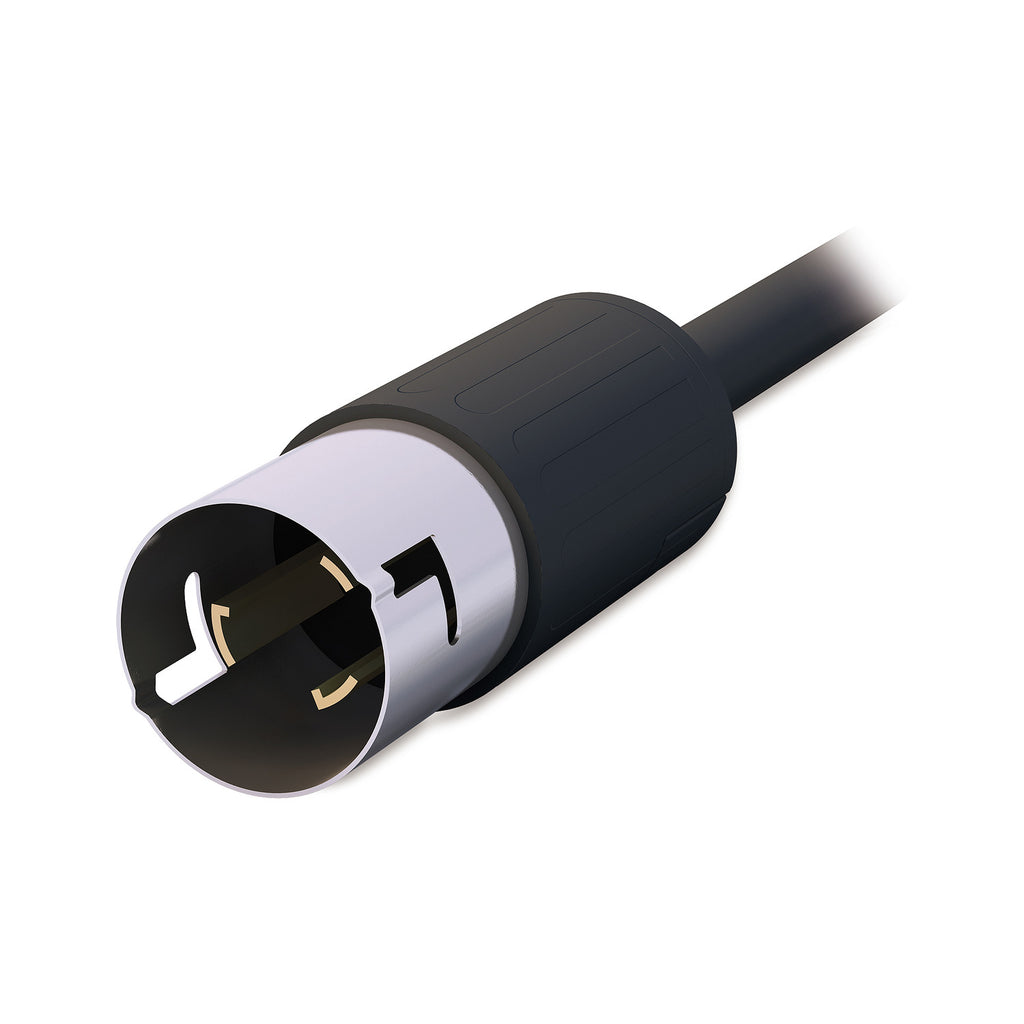

| Input Plug | CS8365 (10.0 kW) |
| Input Voltage | 208V, 3 Phase |
| Max Input Current | 35A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 208V |
| Outlet Types | (36) IEC 60320 C13, (6) IEC 60320 C19 |
| Cord Length | 6 ft (1.8 m) |
| Mounting | Toolless vertical installation in APC NetShelter |
| Dimensions (H x W x D) | 72.01 x 2.20 x 2.01 in (182.9 x 5.6 x 5.1 cm) |
| Weight | 18.78 lbs (8.52 kg) |

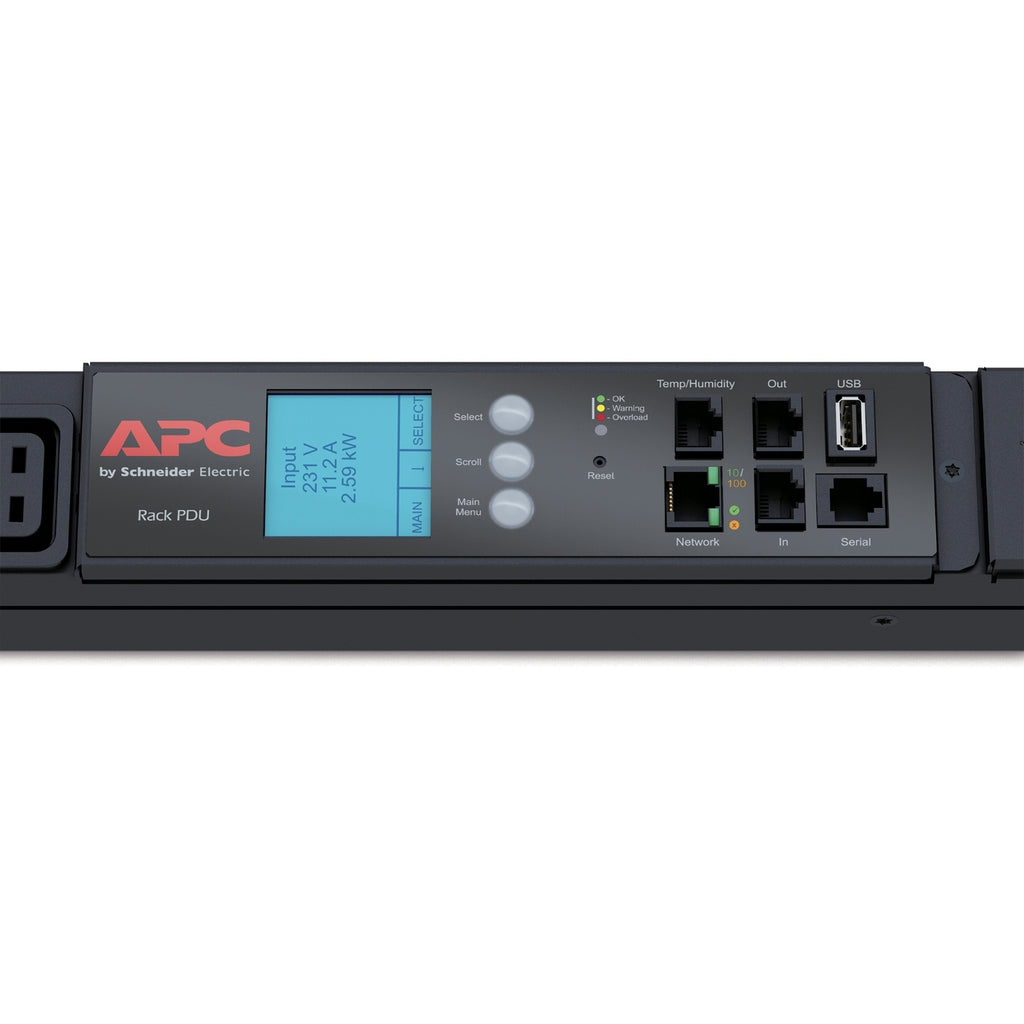

| Monitoring Capabilities | Real-time remote load metering (V, A, kW, kWh) |
| Environmental Sensors | Supported (AP9335T/TH - sold separately) |
| Certifications | UL, cUL, VCCI Class A, FCC Part 15 Class A |
| Operating Temp. | -5 to 60°C (23 to 140°F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Altitude (Op/Storage) | 0–10,000 ft / 0–50,000 ft |
| Warranty | 2-year repair or replace |
