Description

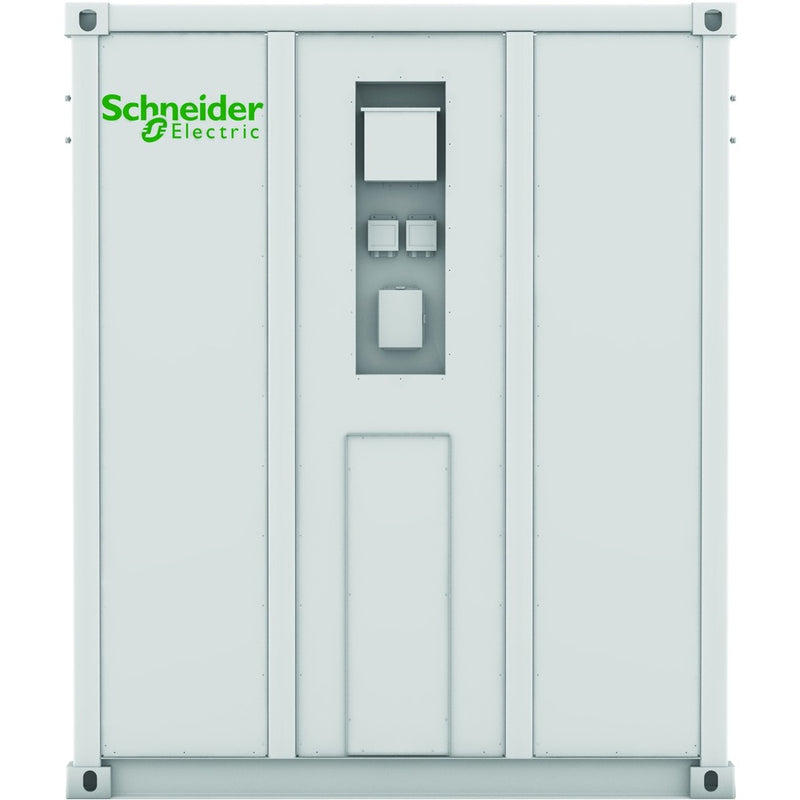

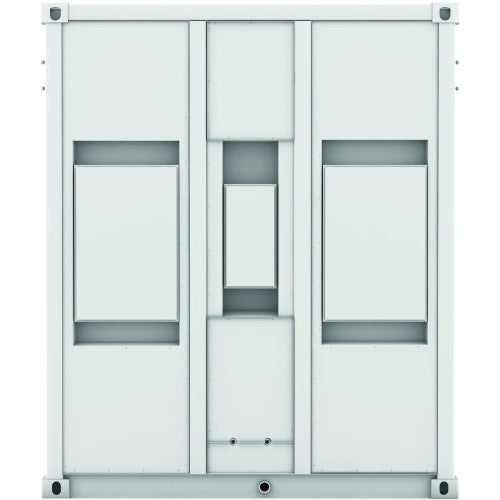

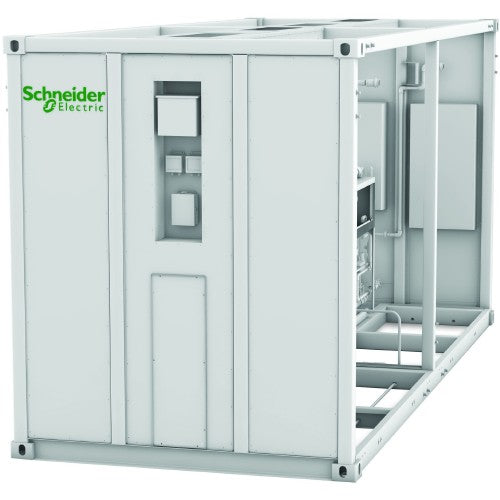

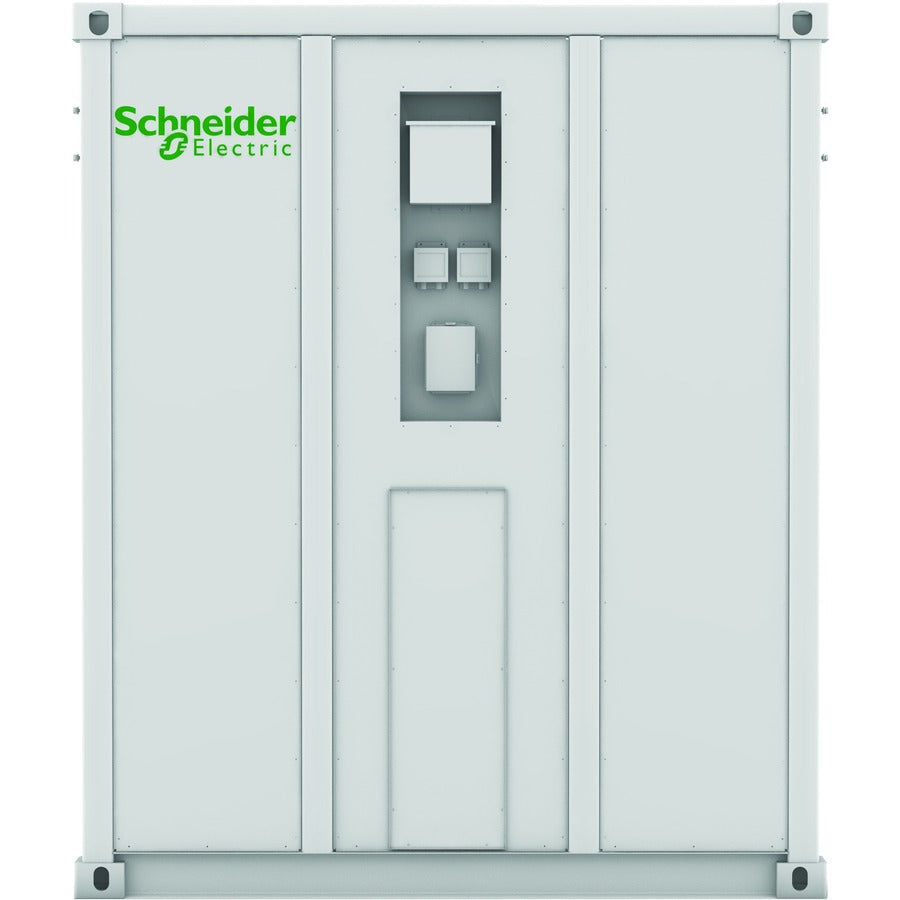

The APC EcoBreeze Frame 20ft (6m) with 2 Modules is a high-efficiency air economizer system designed for modern data center cooling. Engineered by Schneider Electric, this modular solution supports multi-mode economization to lower energy consumption throughout the year. Housed in a 20-foot ISO frame and scalable in 50kW increments, it offers reliable and intelligent cooling up to 400kW capacity. Integrated intelligent controls and redundant systems ensure continuous operation under varying ambient conditions. Ideal for facilities striving for sustainable and scalable thermal management.
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Brand Name | APC by Schneider Electric |
| Product Line | EcoBreeze |
| Model Number | ACECFR20200SE2 |
| Product Type | Cooling System / Air Economizer |
| Frame Size | 20 ft (6 meters) ISO Frame |
| Modules Installed | 2 |
| Input Voltage | 480V AC, 3-Phase, 60Hz |
| Cooling Capacity | Scalable up to 400kW (in 50kW increments) |
| Modes of Operation | Air-Side Economization + Supplemental Mechanical Cooling |
| Color | Gray |
| Weight (Approx.) | 11,800 lbs (5,352 kg) |
| Application | Data Centers |
| Included Accessories | Door Key, Operations & Maintenance Manual, User Manual |
| Warranty | 1 Year Manufacturer Warranty |
| Manufacturer Website | Schneider Electric |
