Description

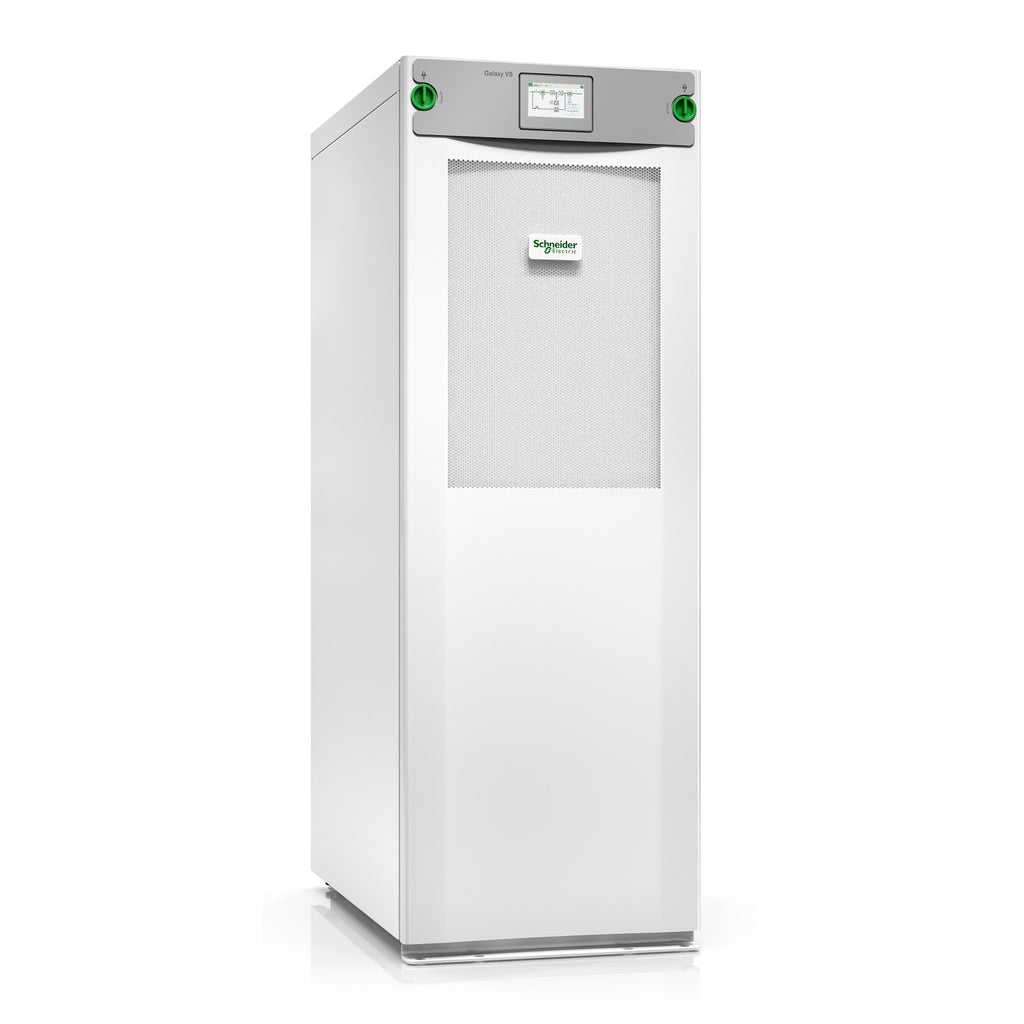

The Schneider Electric Galaxy VS GVSUPS20KGS is a high-efficiency 20kW, 480V 3-phase uninterruptible power supply (UPS) designed for critical infrastructure, edge environments, and medium data centers. This modular and scalable UPS offers external battery support, enabling custom runtime configurations. Engineered for energy savings with up to 99% efficiency in ECOnversion mode, it is also EcoStruxure-ready for remote monitoring. Includes factory-authorized 5x8 start-up service.
| Specification | Details |
|---|---|
| SKU / Model | GVSUPS20KGS |
| Brand | Schneider Electric |
| Power Capacity | 20 kW / 20 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Battery Type | External batteries (VRLA, Li-ion) |
| Battery Voltage Range | 384–576 VDC |
| Start-up Service | Included (5x8) |
| Efficiency | Up to 99% in ECOnversion mode |
| Input Frequency | 40–70 Hz |
| Power Factor | 0.99 at full load |
| Harmonic Distortion (Input) | <3% THDi |
| Waveform Output | Sine wave |
| Bypass | Built-in static bypass |
| Interface | Touch screen LCD |
| Communication Slots | 1 available |
| Certifications | ENERGY STAR V2.0, UL 1778, IEC 62040-3 |
| Dimensions (H x W x D) | 58.46 x 20.51 x 33.35 in (148.5 x 52.1 x 84.7 cm) |
| Weight | 454.2 lb (206 kg) |
| Environmental Conditions | 0–40°C, up to 3281 ft altitude, 0–95% RH |
| IP Rating | IP21 |
| Warranty | 1-year on-site repair or replace |
