Description

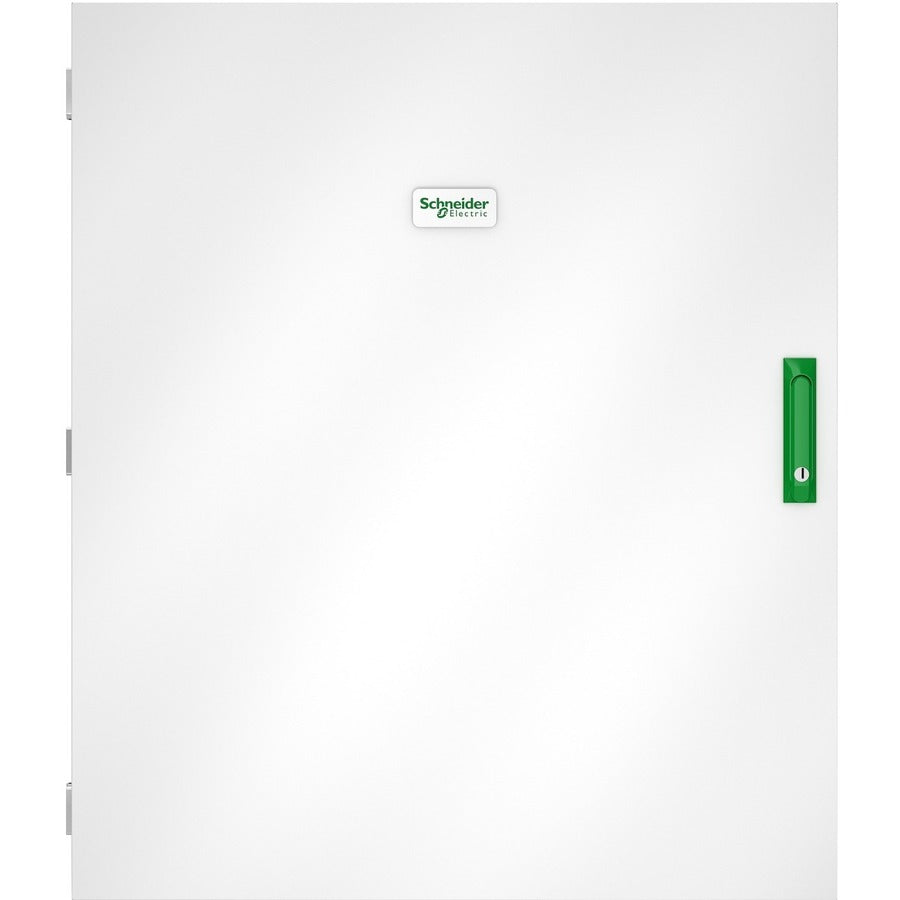

The Schneider Electric GVSBPSU100G-WP is a wall-mounted Galaxy VS maintenance bypass panel designed for complete isolation of UPS systems during service operations. It supports 25–50 kW at 208V and 50–100 kW at 480V, ensuring safe maintenance and seamless integration with Galaxy VS UPS units. Its durable, compact design makes it ideal for edge, commercial, and medium data center applications.
| Specification | Details |
|---|---|
| Part Number | GVSBPSU100G-WP |
| Product Type | Maintenance Bypass Panel |
| UPS Compatibility | Schneider Electric Galaxy VS |
| Supported Power Ratings | 25–50 kW @ 208V, 50–100 kW @ 480V |
| Mounting Type | Wallmount |
| Color | White |
| Height | 39.37 in (100 cm) |
| Width | 33.46 in (85 cm) |
| Depth | 11.02 in (28 cm) |
| Product Weight | 185.2 lb (84 kg) |
| Package Weight | 220.5 lb (100 kg) |
| GTIN | 731304367390 |
| Lead Time | Usually ships within 2 weeks |
| Environmental Compliance | RoHS Compliant, REACh Certified |
