Description

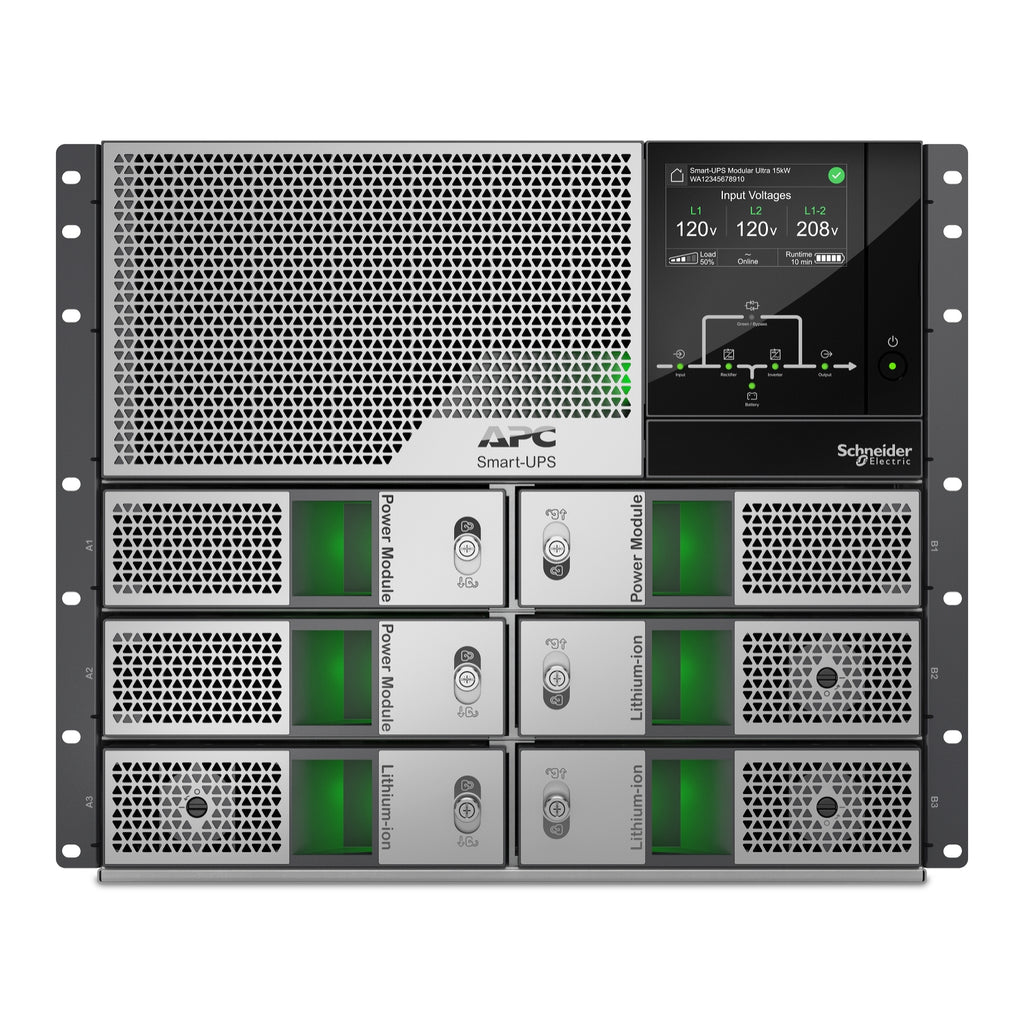

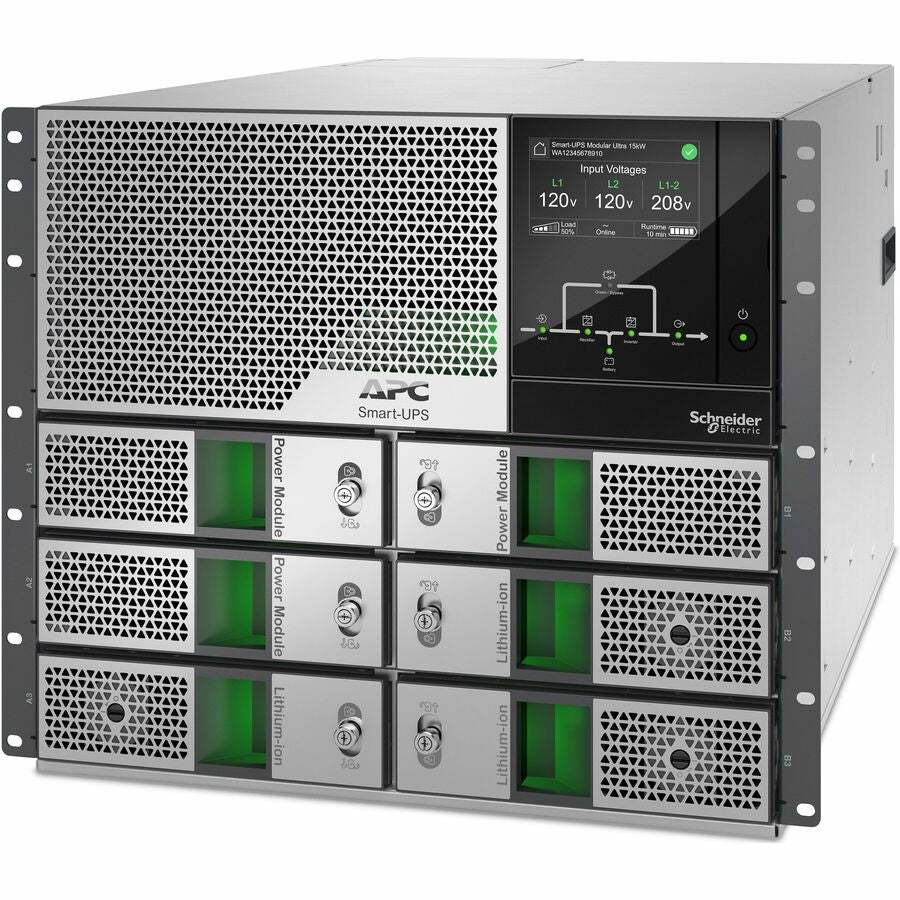

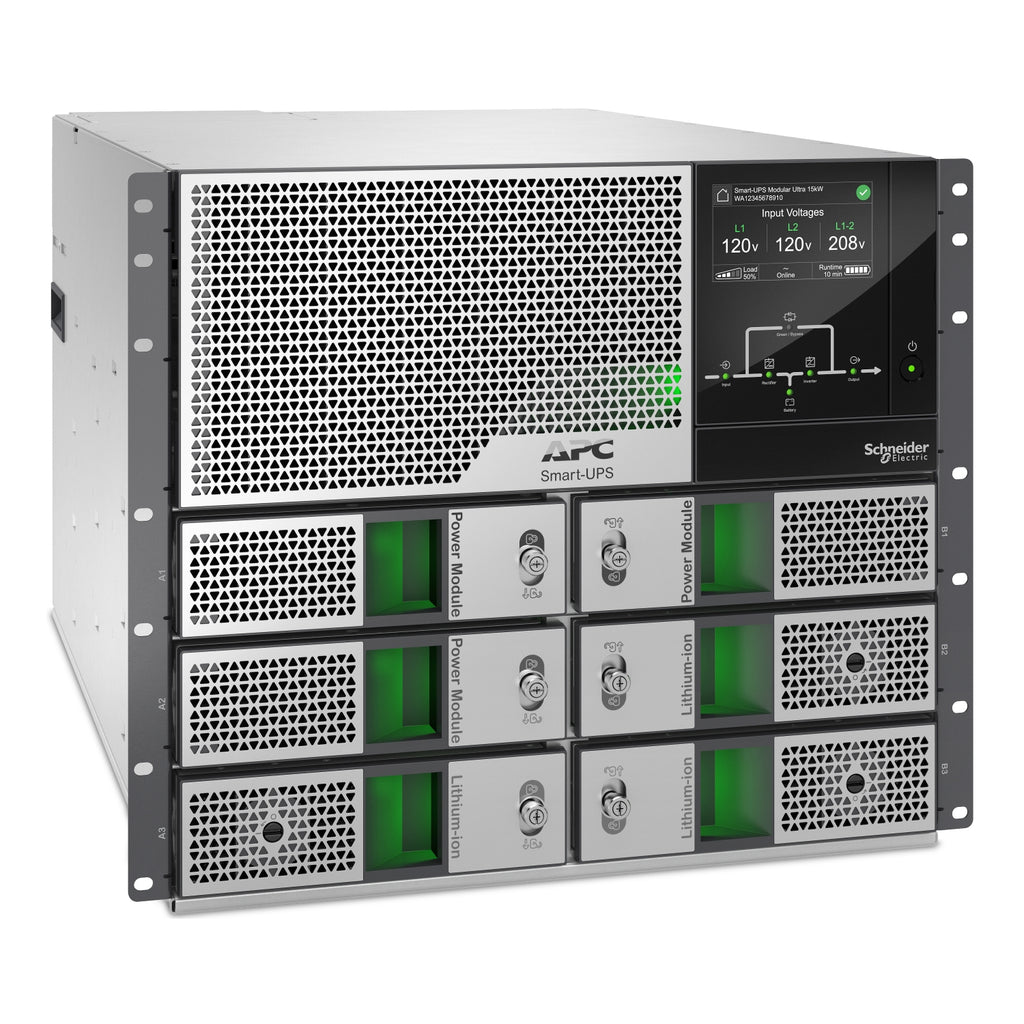

The APC Smart-UPS Modular Ultra (SRYL15K15RMXLT) delivers high-density, sustainable, and scalable power protection in a compact 9U rackmount design. Powered by 3 pre-installed 5kW lithium-ion power modules and 3 battery modules, it supports up to 15kW at 208/240V with built-in redundancy and a 5-year warranty. Ideal for demanding IT environments, this UPS is 50% smaller and 60% lighter than traditional models, and includes a 1-year Secure Network Management Card subscription for remote monitoring. Backward compatible with Symmetra LX wiring.
Key Features
-
9U Rackmount UPS Chassis, scalable to 15kW with 3Ă—5kW power & 3 battery modules
-
100A chassis supports backward compatibility with Symmetra LX wiring
-
Compact & Lightweight: 50% smaller and 60% lighter for easier installation
-
Sustainable Design: Best-in-class embodied carbon reduction
-
Includes: 1-Year Secure Network Management Card subscription
| Specification | Details |
|---|---|
| Model Number | SRYL15K15RMXLT |
| Power Capacity | 15kW / 15kVA |
| Power Modules | 3Ă—5kW (pre-installed) |
| Battery Modules | 3 (Li-Ion, 8–10 year design life) |
| Rack Units | 9U |
| Mounting | Rack-mounted (Front/Rear/Side), 2-post |
| Input Voltage | 208/240V (40–70 Hz), 100A chassis |
| Output Voltage | 120V, 208V, 240V |
| Topology | On-Line, Sine Wave |
| Redundancy | Yes |
| Runtime at Full Load | 5 min 46 sec @ 15kW |
| SmartSlot Card | Included (1-Year Secure NMC subscription) |
| User Interface | Touchscreen LCD |
| Communications | USB, Network Management |
| EPO Support | Yes |
| Certifications | ENERGY STAR V2.0, CULus, FCC |
| Operating Temperature | 0 to 40°C |
| Dimensions (H Ă— W Ă— D) | 15.4 Ă— 17.3 Ă— 27.6 in |
| Weight | 243.6 lbs (110.5 kg) |
| Warranty | 5 Years |
