Description

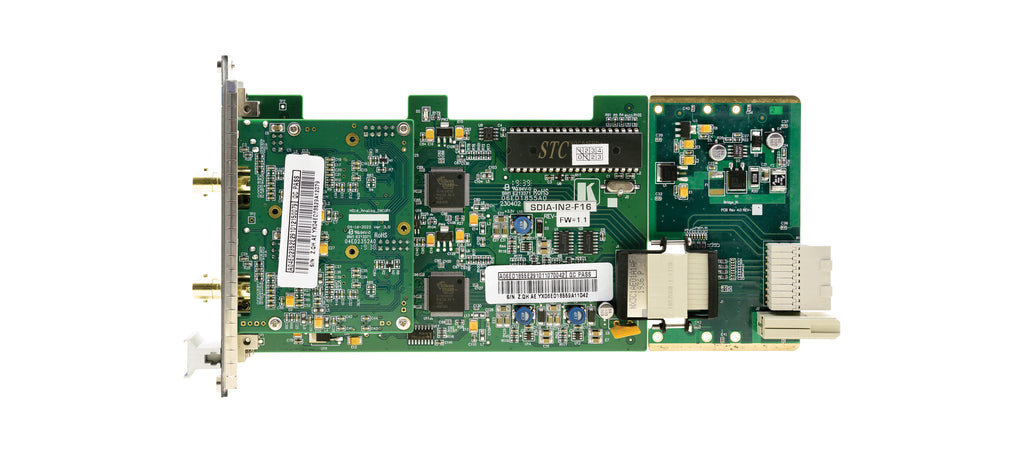

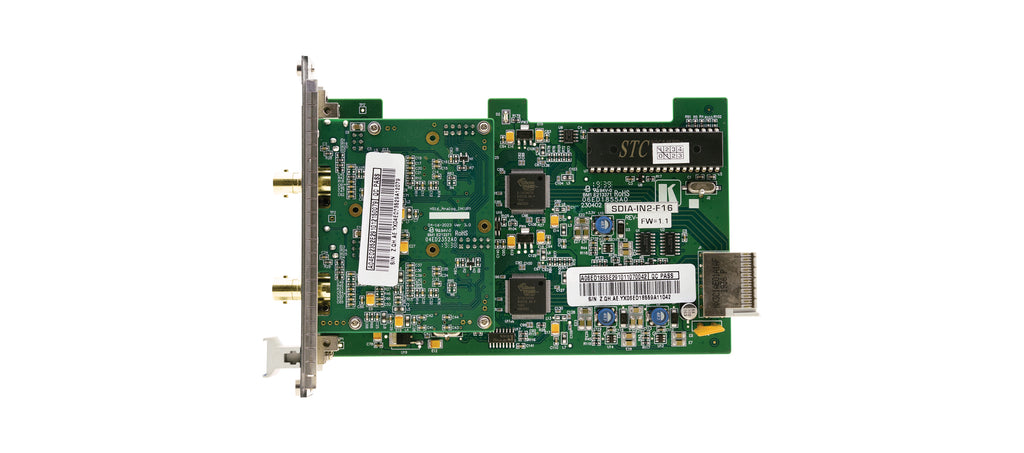

The Kramer SDIA-IN2-F16 is a professional 2-Input SDI with Analog Audio Input Card designed for VS-1616DN-EM modular matrix systems. This module delivers robust SD, HD, and 3Gbps SDI video input support, along with flexible analog or embedded audio handling for high-quality AV routing workflows.
Engineered for broadcast, production, and complex switching environments, the SDIA-IN2-F16 offers customizable color-space conversion, selectable audio sources, and precise control of SDI audio channel mapping. Each port includes fine-tuning controls for volume, balance, bass, treble, and audio muting, enabling optimized sound performance per installation requirements.
This standalone input card slots seamlessly into Kramer F-16 frames, providing reliable signal integrity and professional-grade performance for critical AV routing applications.
| Category | Specification |
|---|---|
| Product Type | 2-Input SDI with Analog Audio Input Card |

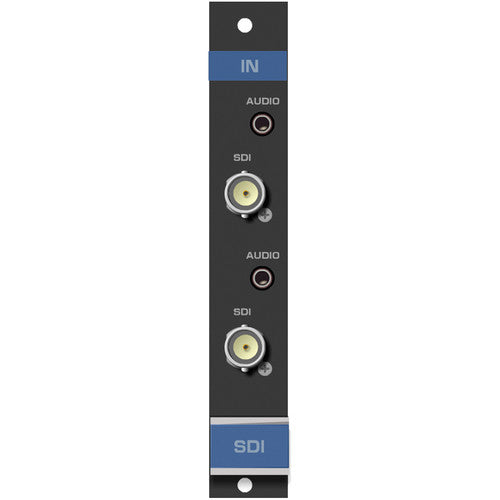

| Inputs | 2 × SDI video + 2 × 3.5mm analog audio ports |
| Supported Video Formats | SD, HD, 3Gbps SDI (No 3D support) |
| Color Space Options | RGB, YUV422, YUV444 (internal processing) |
| Audio Source Selection | Auto, SDI Embedded, Analog (3.5mm) |
| Audio Controls | Volume (0–70), Balance (0–100), Bass (0–15), Treble (0–15), Mute |
| SDI Audio Channel Selection | 0–15 (supports stereo, 4-ch, 5.1, and 7.1 mapped options) |
| Reset Options | Re-power or Factory Default |
| Compliance | CE, FCC; RoHS & WEEE compliant |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | –40°C to +70°C |
| Humidity | 10%–90% (non-condensing) |
| Dimensions (W × D × H) | 19 × 13 × 2 cm (7.5" × 5.1" × 0.8") |
| Product Weight | 0.23 kg (approx.) |
| Shipping Weight | 0.37 kg (approx.) |
| Standard Compliance | DVI 1.0 (internal bus interface) |
