Description

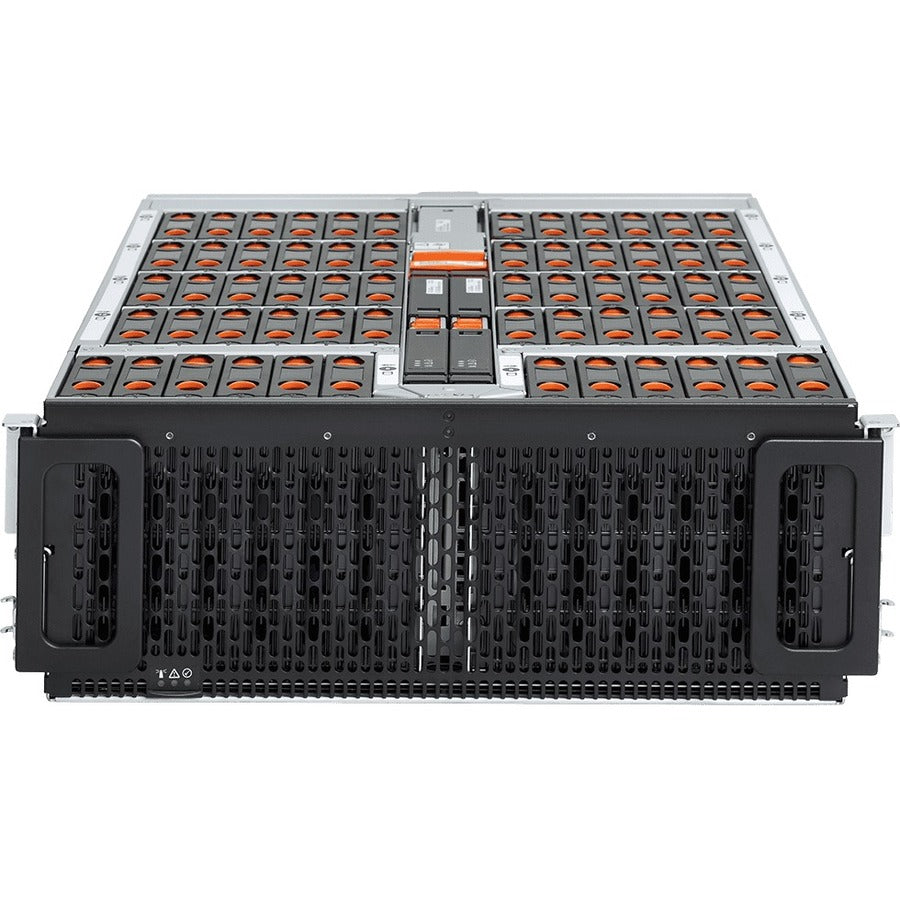

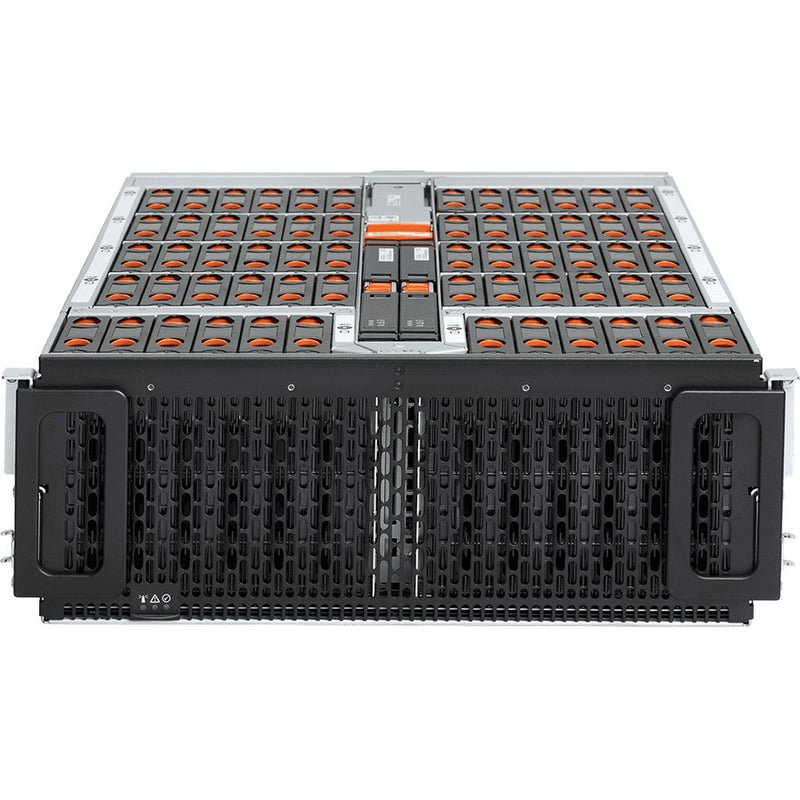

The HGST Ultrastar Data60 SE-4U60-06F05 is a high-density hybrid storage platform engineered to meet the demands of large enterprise data centers, storage OEMs, cloud service providers, and system integrators. Offering up to 60 HDDs and 24 SSDs in a single 4U rack-mount chassis, it delivers exceptional capacity, performance, and flexibility to balance workload requirements.
Equipped with IsoVibe™ technology, the Data60 minimizes vibration-induced performance degradation, while ArcticFlow™ technology introduces cool air into the center of the chassis to improve thermal efficiency and drive reliability. With a robust 12Gb/s SAS host interface, advanced cooling design, and enterprise-grade build quality, the Data60 is ideal for big data, software-defined storage (SDS), and high-capacity applications.
Backed by a five-year limited warranty, the Ultrastar Data60 ensures long-term reliability and operational efficiency.
| Specification | Details |
|---|---|
| Manufacturer | Western Digital Corporation |
| Brand | HGST |
| Product Line | Ultrastar Data60 |
| Model | SE-4U60-06F05 |
| Part Number | 1ES1160 |
| Form Factor | 4U Rack-Mountable |
| Number of HDDs Supported | 60 |
| Number of HDDs Installed | 60 |
| Total HDD Capacity Installed | 360 TB |
| Number of SSDs Supported | 24 |
| Number of SSDs Installed | None |
| Total Bays | 60 |
| Bay Size | 3.5" |
| Host Interface | 12Gb/s SAS |
| Cooling | Yes (ArcticFlow™ Technology) |
| Vibration Control | IsoVibe™ Technology |
| Rack Height | 4U |
| Dimensions (H x W x D) | 6.9" x 17.6" x 28" |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 40 lbs |
| Warranty | 5-Year Limited Warranty |
