Description

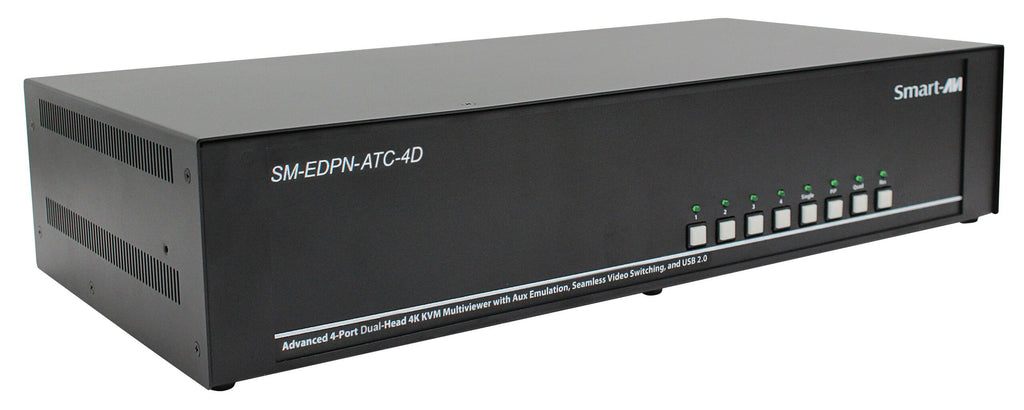

The SmartAVI SM-EDPN-ATC-4D-S is a mission-critical, dual-head DisplayPort KVM switch engineered specifically for air traffic control and other high-reliability command environments. Designed for continuous 24/7 operation, this advanced system enables operators to manage multiple computing sources from a single workstation with zero-latency performance and true seamless switching.
Supporting specialized ATC resolutions up to 2048×2048 and 4K60, the system ensures precise visual clarity for radar, surveillance, weather, and flight data applications. Integrated multiview functionality allows simultaneous monitoring of multiple systems, improving situational awareness without compromising responsiveness.
With full EDID emulation, USB keyboard and mouse emulation, and RS-232 support for legacy devices, the SM-EDPN-ATC-4D-S delivers consistent, uninterrupted control across all connected systems. Flexible switching options via front panel, hotkeys, serial commands, and web interface ensure adaptability across operational workflows. Built with dual power inputs for failover protection, this KVM switch is a dependable backbone for critical infrastructure environments.
| Specification | Details |
|---|---|
| Product Type | Dual-Head DisplayPort KVM Switch for ATC Environments |
| Video Format | DisplayPort 1.2 |
| Maximum Resolution | Up to 3840 × 2160 @ 60Hz |
| Specialized Resolution Support | Supports 2048 × 2048 and other ATC-specific formats |
| Color Support | 24-bit True Color (8-bit per channel) |
| Chroma Sampling | 4:4:4, 4:2:2, 4:2:0 |
| Bandwidth | Up to 21.6 Gbps total |

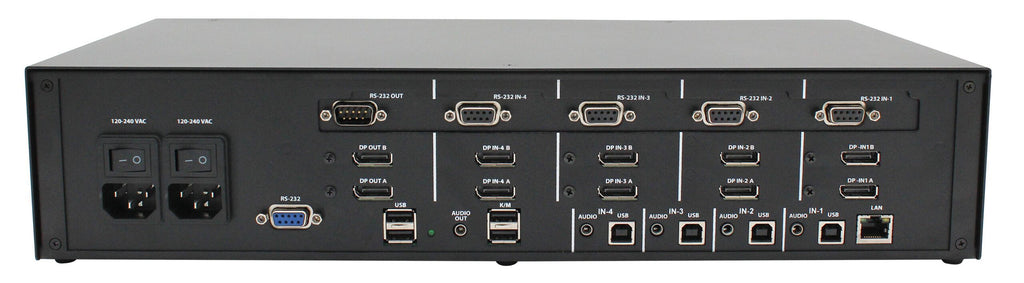

| Input Ports | 8 × DisplayPort (female) |
| Output Ports | 2 × DisplayPort (female) |
| USB Support | USB 2.0, 1.1, 1.0 with integrated hub |
| USB Inputs | 4 × USB Type-B |
| USB Outputs | 2 × USB Type-A (keyboard/mouse), 2 × USB 2.0 transparent |
| Audio Support | Stereo audio (3.5 mm) |
| Audio Input | 4 × 3.5 mm |
| Audio Output | 1 × 3.5 mm |
| RS-232 Support | Yes, for legacy device integration |

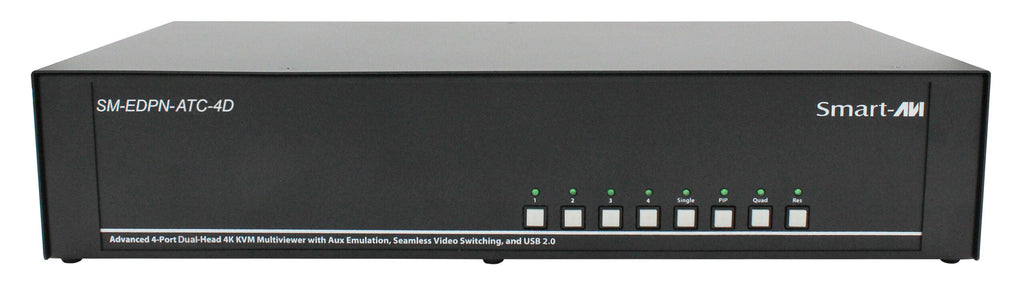

| Switching Methods | Front panel buttons, hotkeys, serial control, web interface |

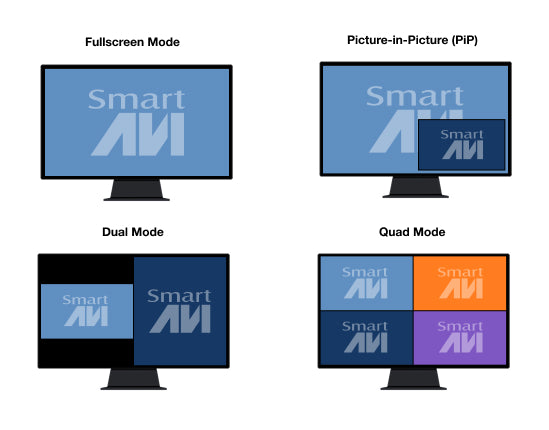

| Multiview Modes | Fullscreen, Dual, Picture-in-Picture, Quad |
| EDID Management | Full emulation with preloaded profiles |
| Latency | Ultra-low latency, real-time switching |
| Power Supply | External 120–240 VAC with dual DC power inputs for failover |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Up to 80% non-condensing |
| Dimensions | 17.0” W × 2.7” H × 8.69” D |
| Weight | 4.4 lbs |
| Compliance | UL, CE, RoHS |
