Description

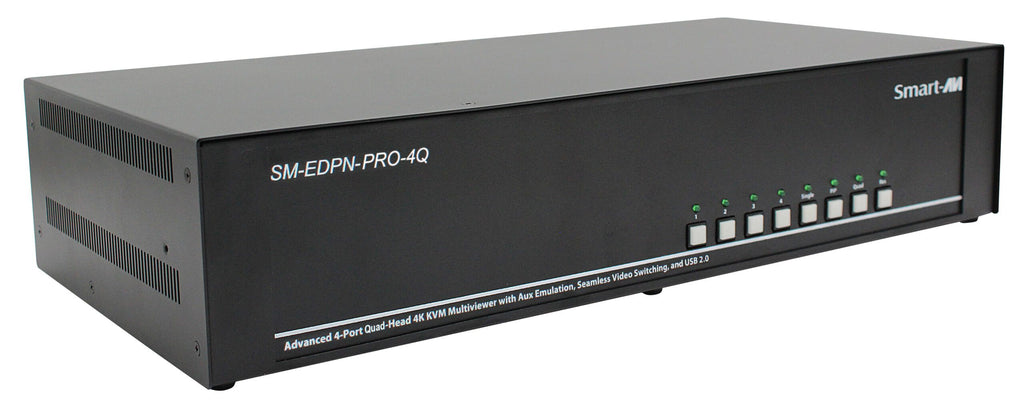

The SmartAVI SM-EDPN-PRO-4Q-S is a high-performance seamless DisplayPort KVM switch engineered for mission-critical environments such as radiology reading rooms, diagnostic imaging centers, and advanced visualization labs. Designed to support demanding medical workflows, this solution enables operators to control multiple imaging systems—including PACS, RIS, CT, MRI, and ultrasound platforms—from a single workstation without interruption.
With true seamless switching, users can transition between systems instantly without video blanking or re-synchronization, preserving full image integrity at resolutions up to 2048×2048 and 4K at 60Hz. Integrated multiview capabilities allow simultaneous monitoring of multiple sources, improving efficiency and clinical decision-making.
Built for precision and reliability, the system features EDID retention to maintain consistent display settings, USB keyboard and mouse emulation for uninterrupted control, and independent USB 2.0 channels for peripheral connectivity. Flexible control options—including front panel, hotkeys, and web interface—ensure intuitive operation in fast-paced environments. The SM-EDPN-PRO-4Q-S is an ideal solution for professionals who demand zero latency, accuracy, and seamless system integration.
| Specification Category | Details |
|---|---|
| Video Format | DisplayPort 1.2 |
| Maximum Resolution | Up to 3840 × 2160 @ 60Hz |
| Supported Resolutions | Includes 2048 × 2048 and 4K UHD |
| Switching Type | True seamless switching with no video interruption |

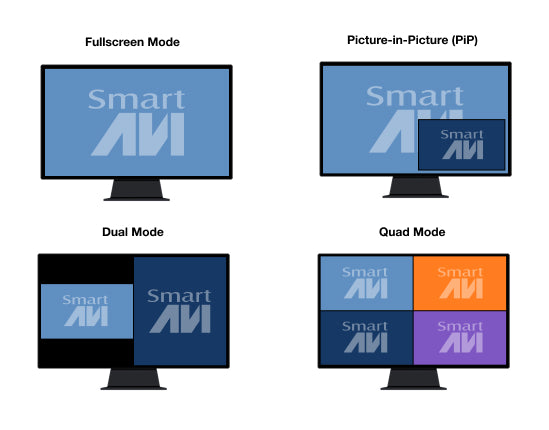

| Multiview Modes | Fullscreen, Dual View, Quad View, Picture-in-Picture |

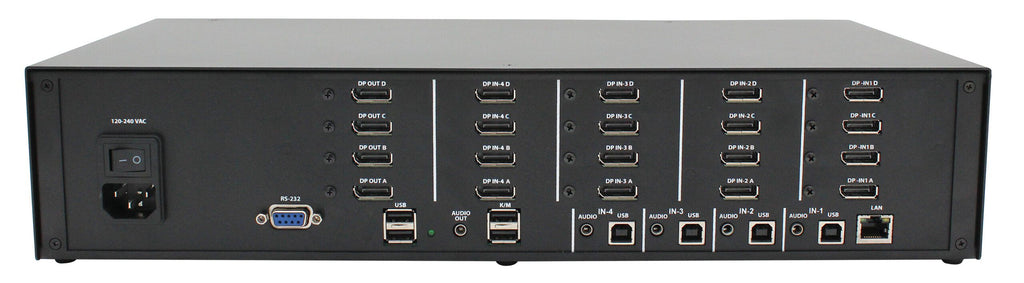

| Input Ports | 16 × DisplayPort (20-pin, female) |
| Output Ports | 4 × DisplayPort (20-pin, female) |
| USB Support | USB 2.0, 1.1, and 1.0 with internal hub |
| USB Inputs | 4 × USB Type B |
| USB Outputs | 2 × USB Type A for keyboard/mouse, 2 × USB Type A for transparent USB |
| Audio Input | 4 × 3.5mm stereo audio |
| Audio Output | 1 × 3.5mm stereo audio |
| EDID Management | Full EDID emulation with preloaded profiles |

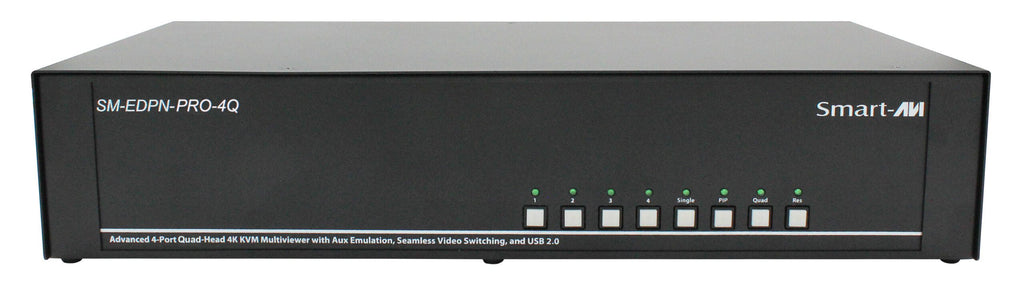

| Control Methods | Front panel buttons, keyboard hotkeys, web interface (LAN RJ45) |
| Latency | Ultra-low latency for real-time responsiveness |
| Data Rate | 1.65 Gbps per color |
| Cable Distance | Up to 20 ft for input and output |
| Power Supply | External 120–240V AC with internal PSU |
| Dimensions | 17.0" W × 2.7" H × 8.69" D |
| Weight | 4.4 lbs |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Up to 80% non-condensing |
| Compliance | UL, CE, RoHS compliant |
| Emulation | Keyboard and mouse emulation supported |
