Description

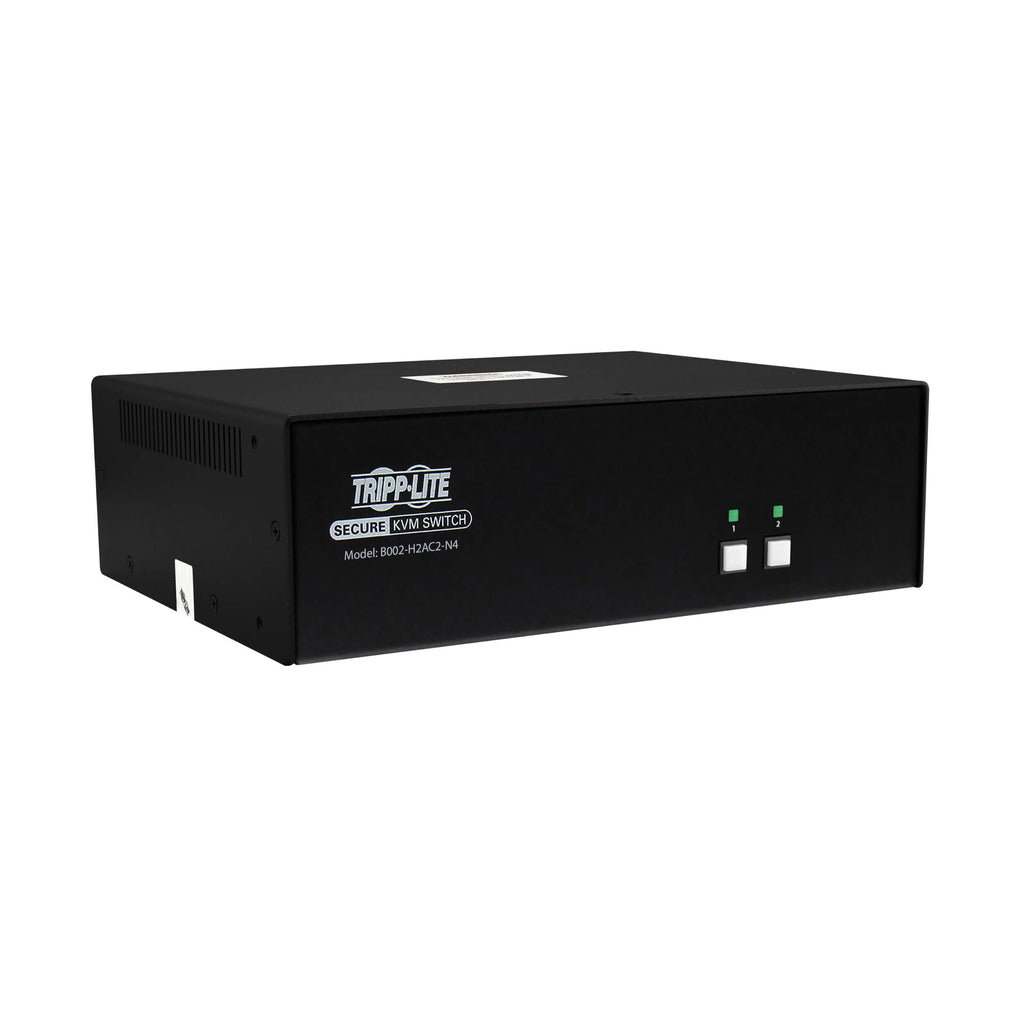

The Eaton Tripp Lite B002-H2AC2-N4 is a 2-port NIAP PP4.0-certified secure HDMI KVM switch designed for environments requiring the highest data protection—ideal for government, military, financial, healthcare, and educational networks. It allows users to safely switch between two isolated computers with different security levels using one console, while ensuring complete data separation and protection against unauthorized information transfer.
Each KVM channel is electronically isolated, and firmware tampering is prevented with anti-tamper protection and automatic keyboard buffer clearing. The dual-head HDMI interface supports 4K UHD (3840 x 2160 @ 60Hz) with 36-bit color depth and 4:4:4 chroma, ensuring crisp, secure visuals. A Common Access Card (CAC) port supports biometric and smart card readers for user authentication.
The switch features secure video emulation, EDID learning, constant keyboard/mouse emulation, and TAA compliance for government procurement. It includes a universal power supply with interchangeable plug heads for US, UK, EU, and AU regions.
| Category | Specification |
|---|---|
| Model | B002-H2AC2-N4 |
| Type | Secure 2-Port Dual-Head HDMI KVM Switch |
| Video Resolution | Up to 3840 × 2160 @ 60 Hz (4K UHD) |
| Color Depth / Chroma | 36-bit Deep Color, 4:4:4 |

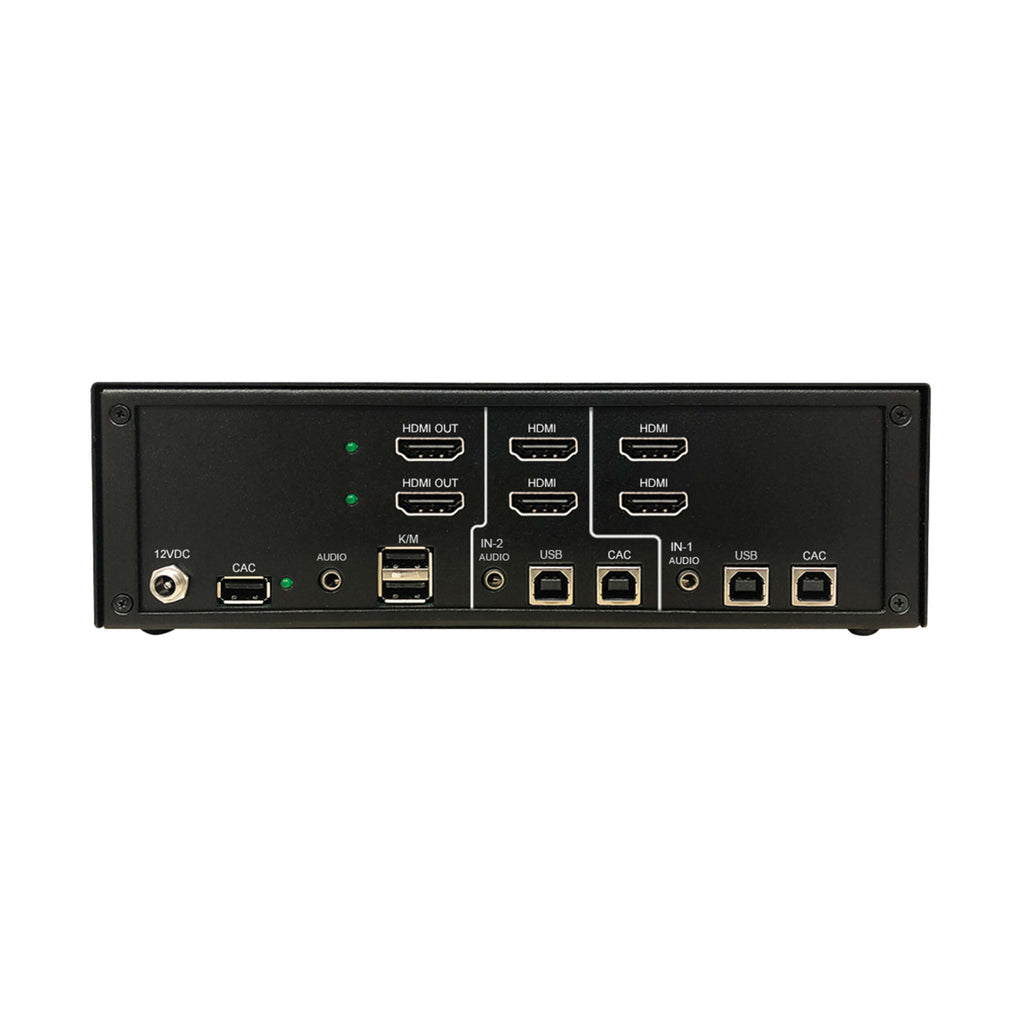

| Ports | 2 × HDMI (per computer), 2 × USB (per computer), 3.5 mm audio, CAC port |
| Video Interface | HDMI |
| Keyboard/Mouse Interface | USB |

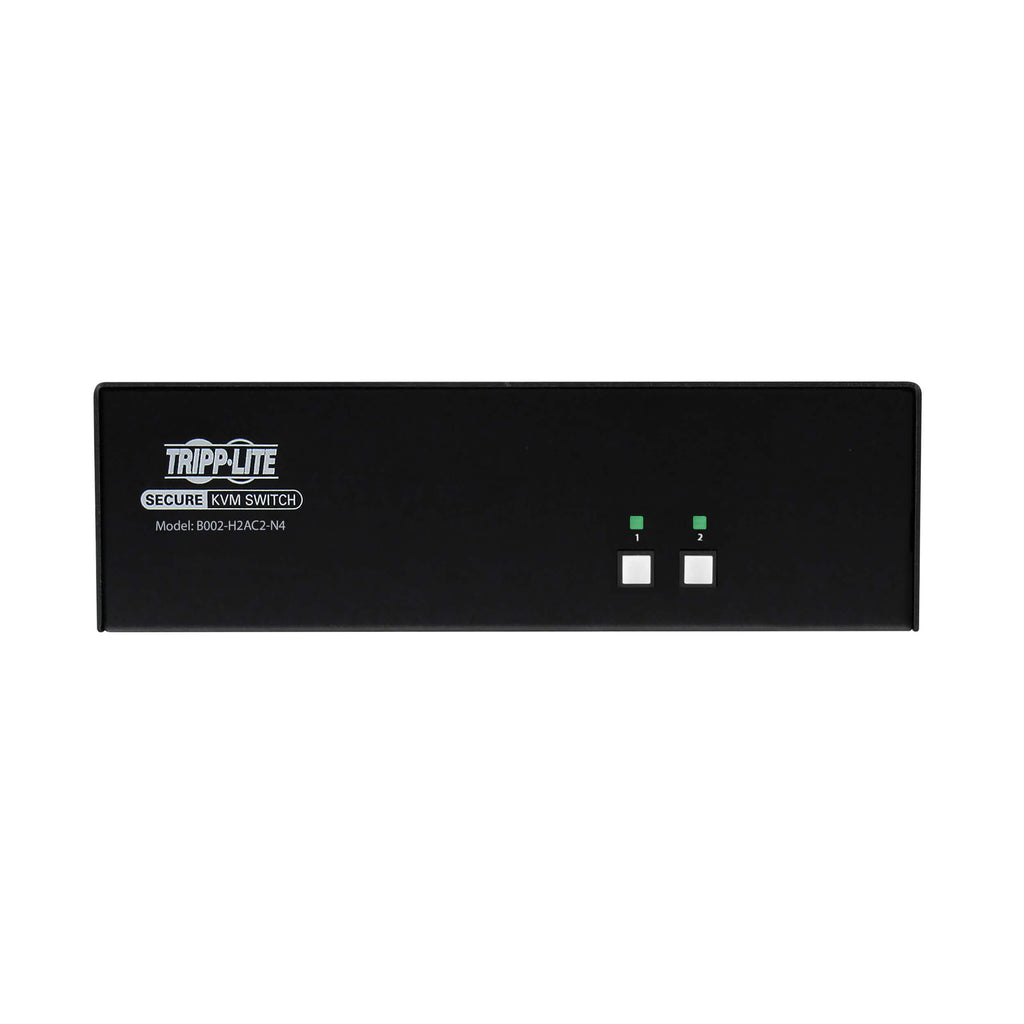

| Port Selection | Front-panel push buttons only |
| NIAP Certification | Common Criteria Protection Profile v4.0 (NIAP PP4.0) |
| Security Features | Isolated data channels, anti-tampering switch, automatic keyboard buffer clearing, CAC authentication |
| USB Support | USB 1.1 / 2.0 (up to 480 Mbps) |
| Audio Support | 3.5 mm stereo |
| Video Emulation | Secure EDID learning, prevents DDC data leakage |
| Power Input | 100–240V AC, 50/60Hz, 1.3A |
| Power Output | 12V DC, 3A |

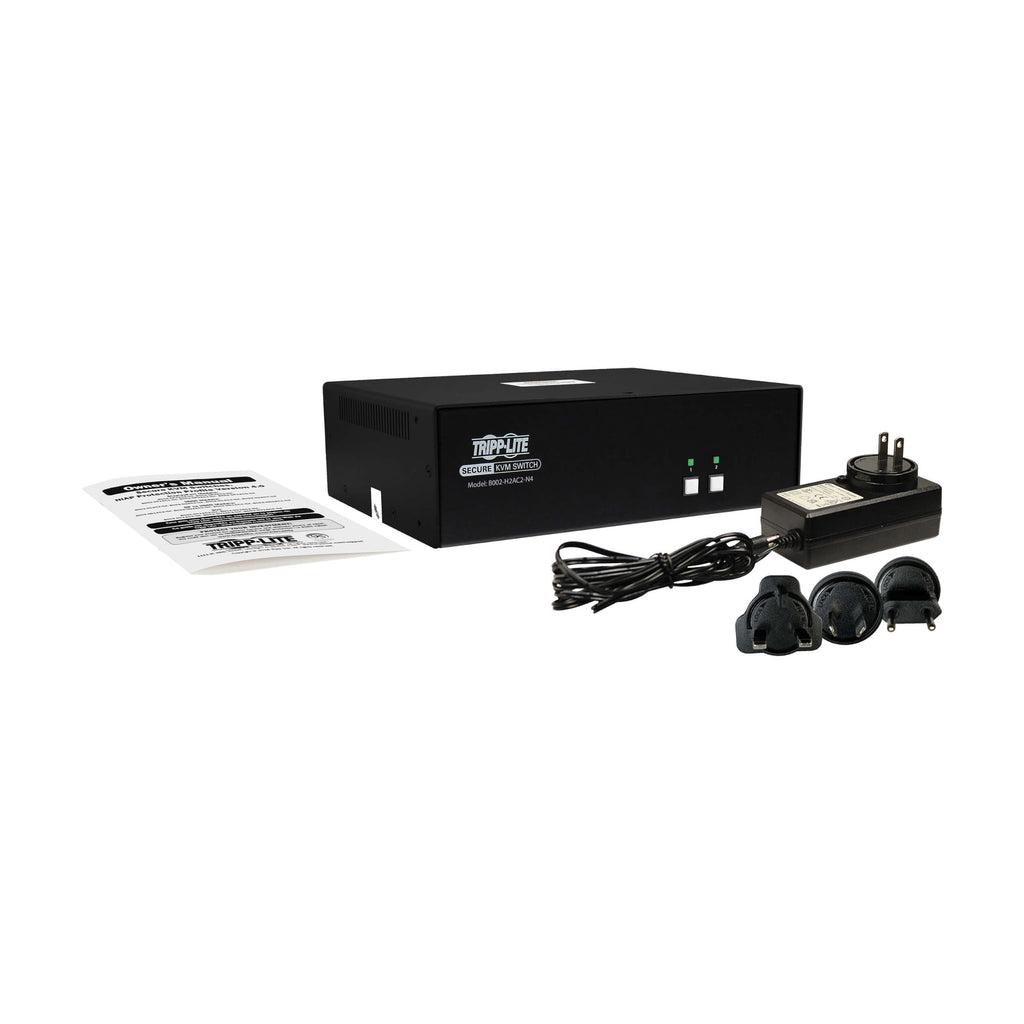

| Power Supply | External AC adapter (with US, UK, EU, AU heads) |
| Dimensions (H × W × D) | 2.63 × 8.8 × 6.69 in (6.7 × 22 × 16.9 cm) |
| Weight | 3.85 lbs (1.75 kg) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0–80% non-condensing |
| Material | Metal housing |
| Rackmountable | No |
| Compliance | NIAP PP4.0, TAA, CE, FCC, UKCA, RoHS, NOM |
| Warranty | 3-Year Limited Warranty |
