Description

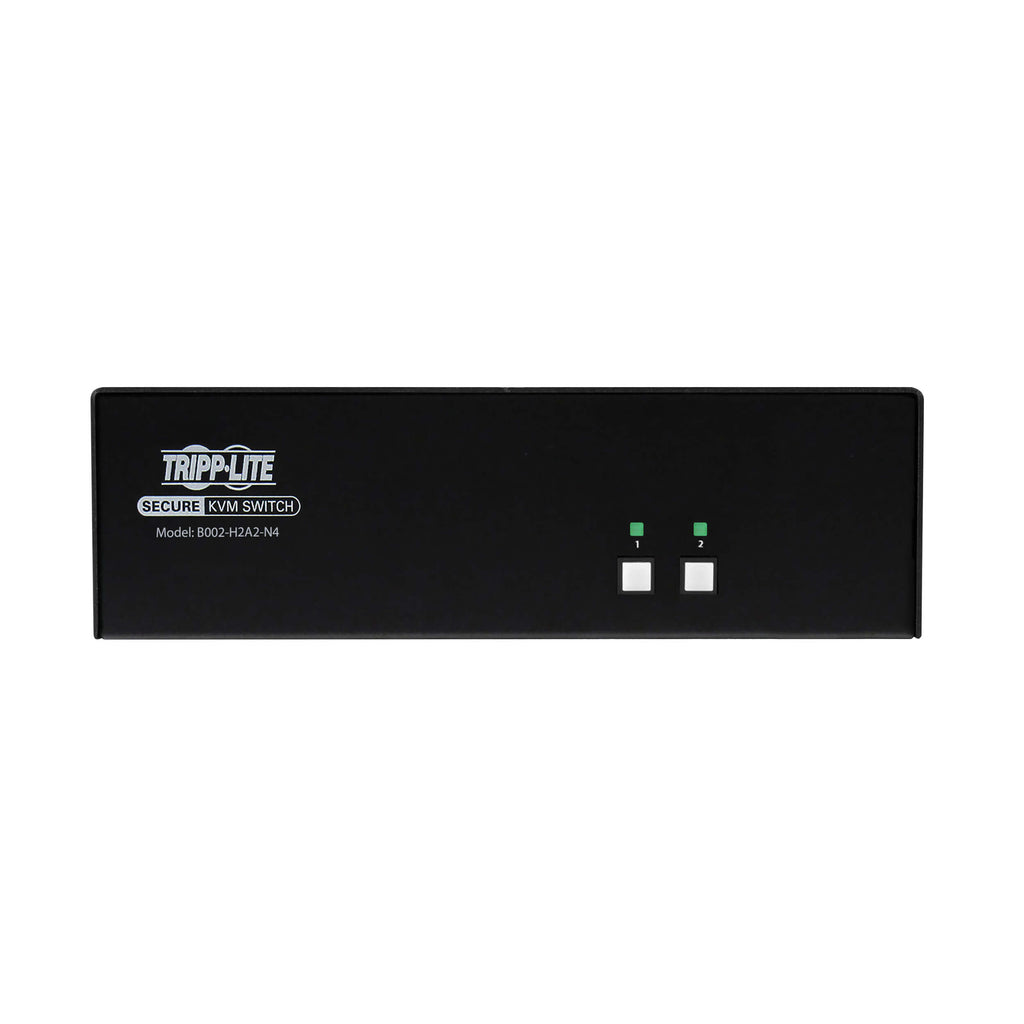

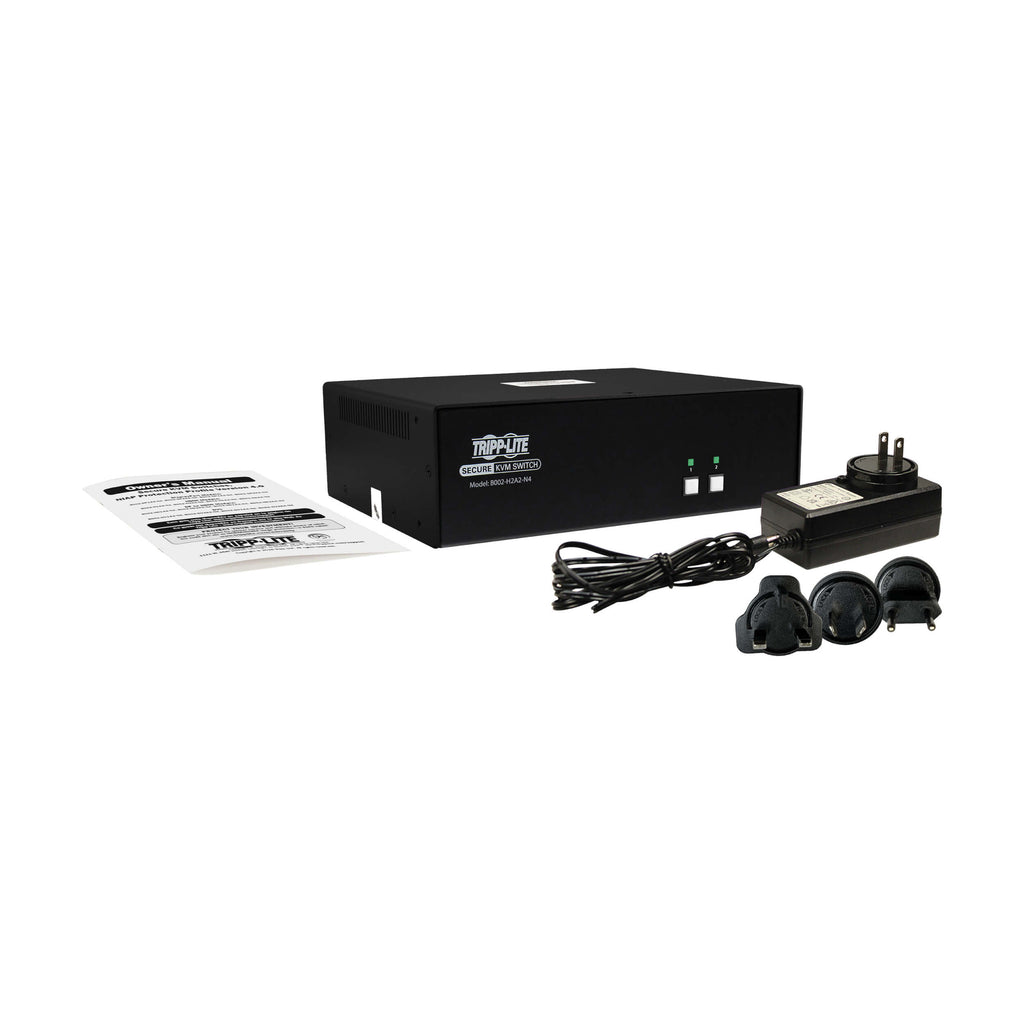

The B002-H2A2-N4 Secure KVM Switch is a NIAP PP4.0-certified solution designed for environments that require the highest level of data protection. Ideal for government, military, financial, healthcare, and enterprise applications, this 2-port dual-head HDMI KVM enables secure access to two isolated computers from a single keyboard, mouse, and dual-monitor console.
Each port operates as a fully isolated channel, preventing data leakage, crosstalk, or unauthorized transfer between connected systems—even across different security levels. The switch supports crystal-clear Ultra HD video resolutions up to 4K @ 60 Hz, ensuring uncompromised visual performance alongside uncompromising security.
Advanced protections include tamper-resistant housing, non-reprogrammable firmware, automatic keyboard buffer clearing, and push-button-only port switching to eliminate potential attack vectors. USB filtering restricts connectivity to keyboard and mouse devices only, while secure video emulation and EDID management preserve system integrity during switching.
Fully TAA-compliant and certified to the NIAP Common Criteria Protection Profile v4.0, the B002-H2A2-N4 meets stringent federal procurement and cybersecurity requirements.
| Category | Specification |
|---|---|
| Product Type | Secure KVM Switch |
| Model | B002-H2A2-N4 |
| Number of Ports | 2 |
| Monitor Support | Dual-Head |
| Video Interface | HDMI |
| Max Video Resolution | 3840 × 2160 (4K) @ 60 Hz |
| Color Depth | 36-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| Keyboard / Mouse Interface | USB (wired only) |
| USB Filtering | Keyboard & mouse only (no storage devices) |
| Port Switching Method | Push-button only |
| On-Screen Display (OSD) | No |
| NIAP Certification | PP4.0 |
| Secure Peripheral Isolation | Yes |
| Firmware Protection | Non-reprogrammable |
| Anti-Tamper Protection | Yes (unit disables if opened) |
| EDID Emulation | Yes |
| Audio Support | 3.5 mm analog audio |
| Power Supply | External AC adapter (100–240V input, 12V output) |
| Material | Metal enclosure |
| Color | Black |
| Rackmountable | No |
| Operating Temperature | 0°C to 40°C |
| Compliance | NIAP PP4.0, TAA, RoHS, FCC, CE, UKCA |
| Warranty | 3-Year Limited |
