Description

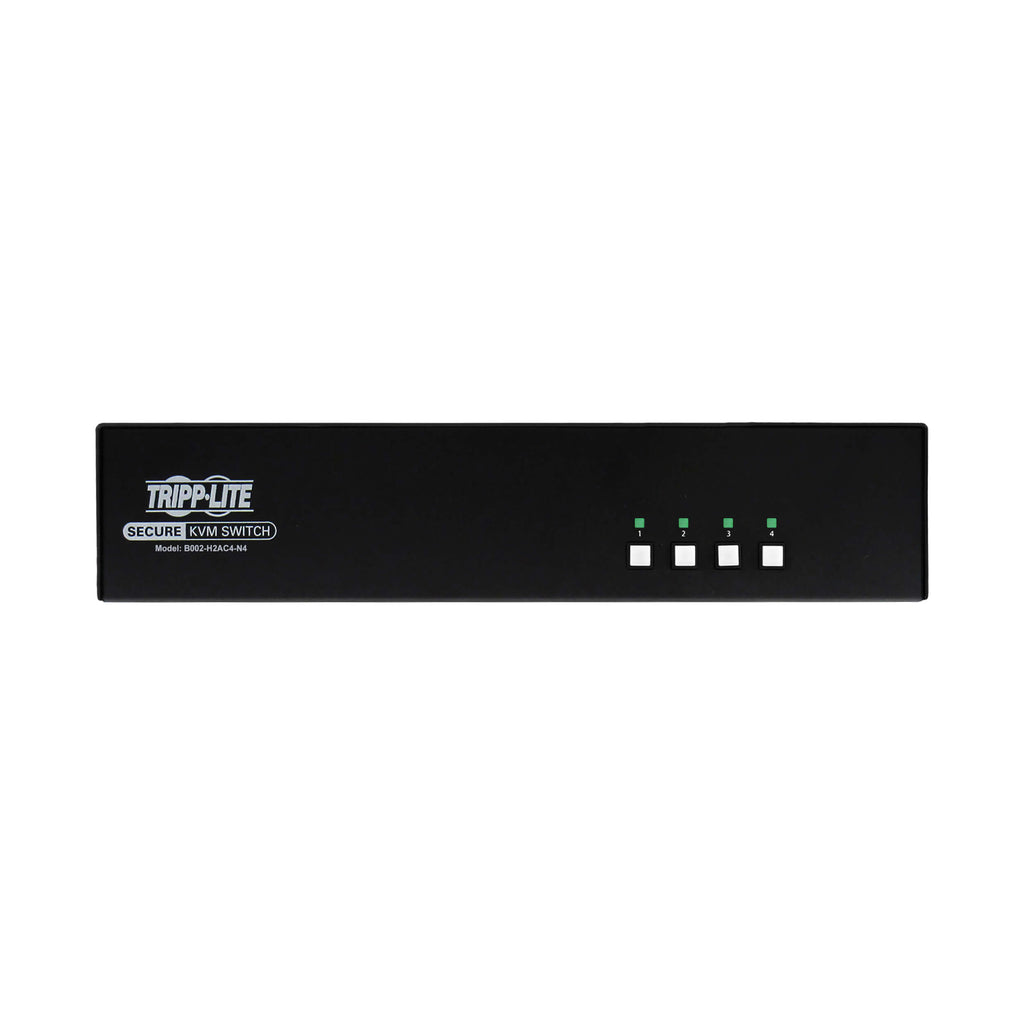

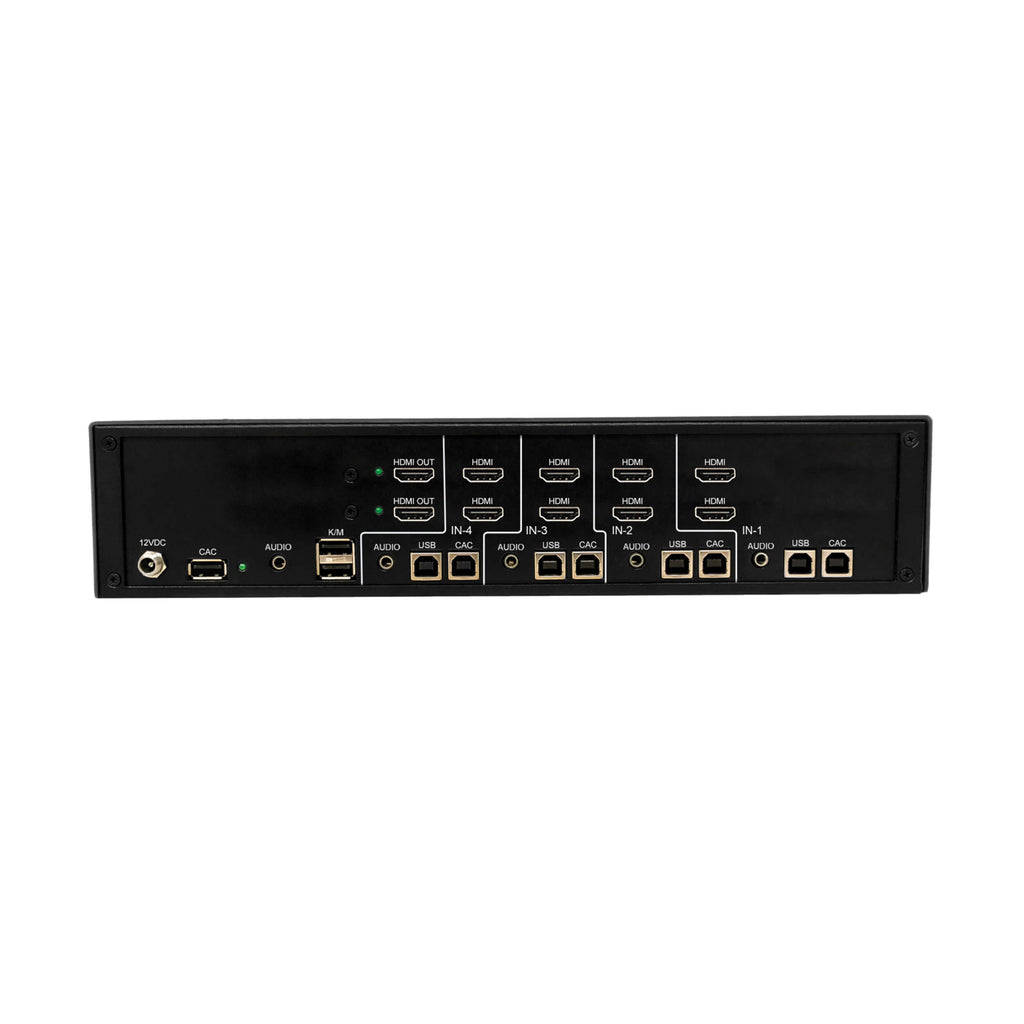

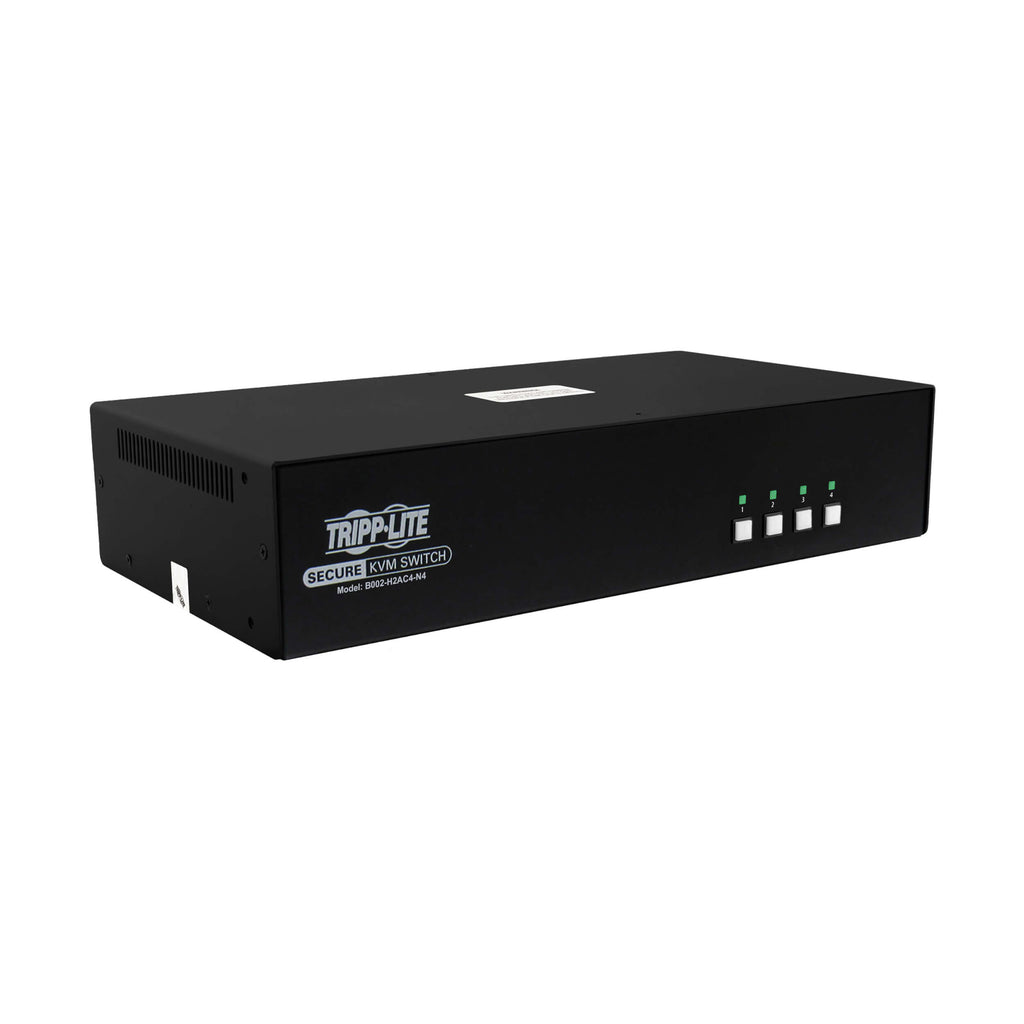

The Eaton Tripp Lite B002-H2AC4-N4 is a 4-port dual-monitor HDMI KVM switch designed for the highest levels of security and performance. NIAP PP4.0-certified and TAA-compliant, it allows secure access to up to four isolated computers from one keyboard, mouse, and dual 4K display setup. Ideal for military, government, finance, education, and healthcare applications, each port is electronically isolated to prevent unauthorized data transfer across systems of different security levels.
This switch delivers crystal-clear 4K UHD video (3840 × 2160 @ 60 Hz), supports smart card and biometric readers via CAC, and offers firmware protection and anti-tampering safeguards for uncompromised data assurance. USB filtering ensures only authorized peripherals operate, while automatic keyboard buffer clearing and EDID emulation maintain smooth and secure operation.
| Category | Details |
|---|---|
| Model | B002-H2AC4-N4 |
| Type | 4-Port Dual-Head HDMI NIAP PP4.0 Secure KVM Switch |
| Video Resolution | Up to 3840 × 2160 @ 60 Hz (4K UHD) |
| Color Depth | 36-bit Deep Color, 4:4:4 Chroma Subsampling |
| Video Interface | HDMI (Dual-Monitor) |
| Peripheral Interface | USB Keyboard/Mouse, CAC Smart Card |
| Port Selection | Pushbutton (No OSD or Hotkey) |
| Security Certification | NIAP PP4.0 (Common Criteria), TAA-Compliant |
| Additional Features | CAC/Smart Card Support, Firmware Lockout, Anti-Tampering, USB Device Filtering, EDID Learning |
| Number of Computers Supported | 4 |
| Number of Users | 1 |
| Audio Support | 3.5 mm Stereo Audio |
| Power Supply | External 12 V 3 A AC Adapter (100-240 V, 50/60 Hz, 1.3 A) with US/UK/EU/AU plugs |
| Construction | Metal Enclosure |
| LED Indicators | Port Selection, CAC/EDID, Video Console |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | –20 °C – 60 °C (–4 °F – 140 °F) |
| Relative Humidity | 0–80% non-condensing |
| Dimensions (H × W × D) | 6.86 × 31.93 × 17.02 cm |
| Weight | 1.91 kg (4.2 lb) |
| Compliance | NIAP PP4.0, CE, UKCA, FCC, RoHS, NOM (Mexico), TAA |
| Warranty | 3-Year Limited Warranty |

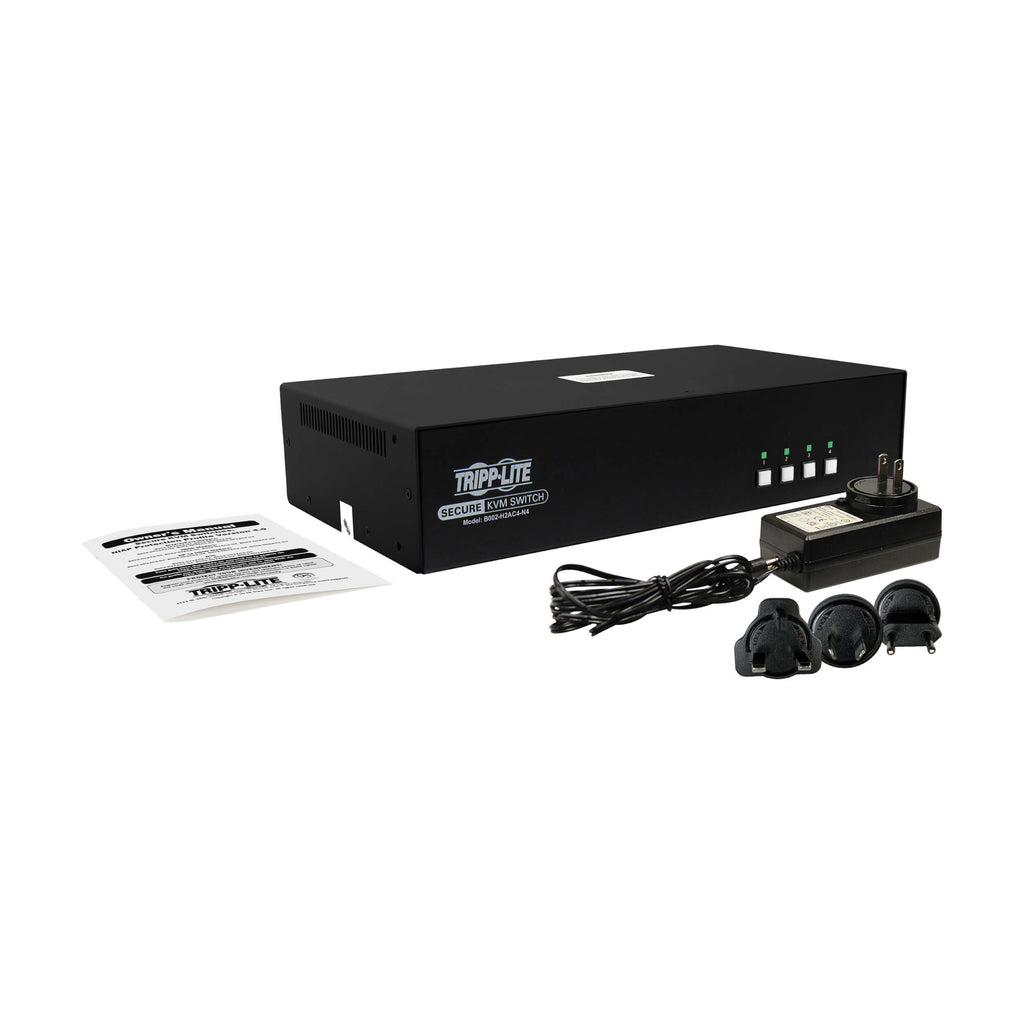

| Included Accessories | External Power Adapter, 4 Plug Heads (US, UK, EU, AU), Owner’s Manual |
