Description
The Eaton Tripp Lite B002-H2A4-N4 Secure KVM Switch provides high-assurance data protection for environments that demand absolute security and reliability. Designed for government, military, finance, and healthcare networks, this NIAP PP4.0-certified KVM allows users to securely access up to four isolated computers from a single dual-monitor console, preventing data leakage or unauthorized transfer between connected systems.
Supporting Ultra HD 4K @ 60Hz video and 36-bit Deep Color, the B002-H2A4-N4 delivers crisp, clear display output ideal for mission-critical visualization. Hardware-based port switching ensures no software vulnerabilities, while automatic keyboard buffer clearing and firmware reprogramming prevention enhance security. Anti-tamper protection disables the unit if the enclosure is compromised, providing visual and operational deterrents against tampering.
The switch supports HDMI and USB interfaces, constant keyboard/mouse emulation for lag-free switching, and EDID learning to maintain optimal display performance. Fully TAA-compliant, it is approved for GSA Schedule purchases and government procurement programs.
| Category | Specification |
|---|---|
| Model Number | B002-H2A4-N4 |
| Product Type | 4-Port Dual-Head HDMI Secure KVM Switch |
| Certification | NIAP PP4.0, TAA Compliant |
| Video Resolution | Up to 3840 x 2160 @ 60Hz (4K UHD) |
| Color Depth | 36-bit Deep Color, 4:4:4 Chroma Subsampling |
| Video Interface | HDMI (Dual Head) |
| Keyboard/Mouse Interface | USB (USB 1.1 up to 12 Mbps) |
| Audio Support | 3.5mm stereo input/output |
| Number of Ports | 4 computers |
| Port Selection | Front-panel push buttons (no OSD or hotkey) |
| Security Features | NIAP PP4.0 certified, anti-tamper protection, firmware lock, automatic keyboard buffer clearing, isolated data paths |
| Operating Systems Supported | Any major OS (Windows, macOS, Linux) |
| Management Utility | Admin & Security Management 1.2 (Windows only) |
| Power Input | 100–240V AC, 50/60Hz, 1.3A |
| Power Output | 12V DC, 3A |

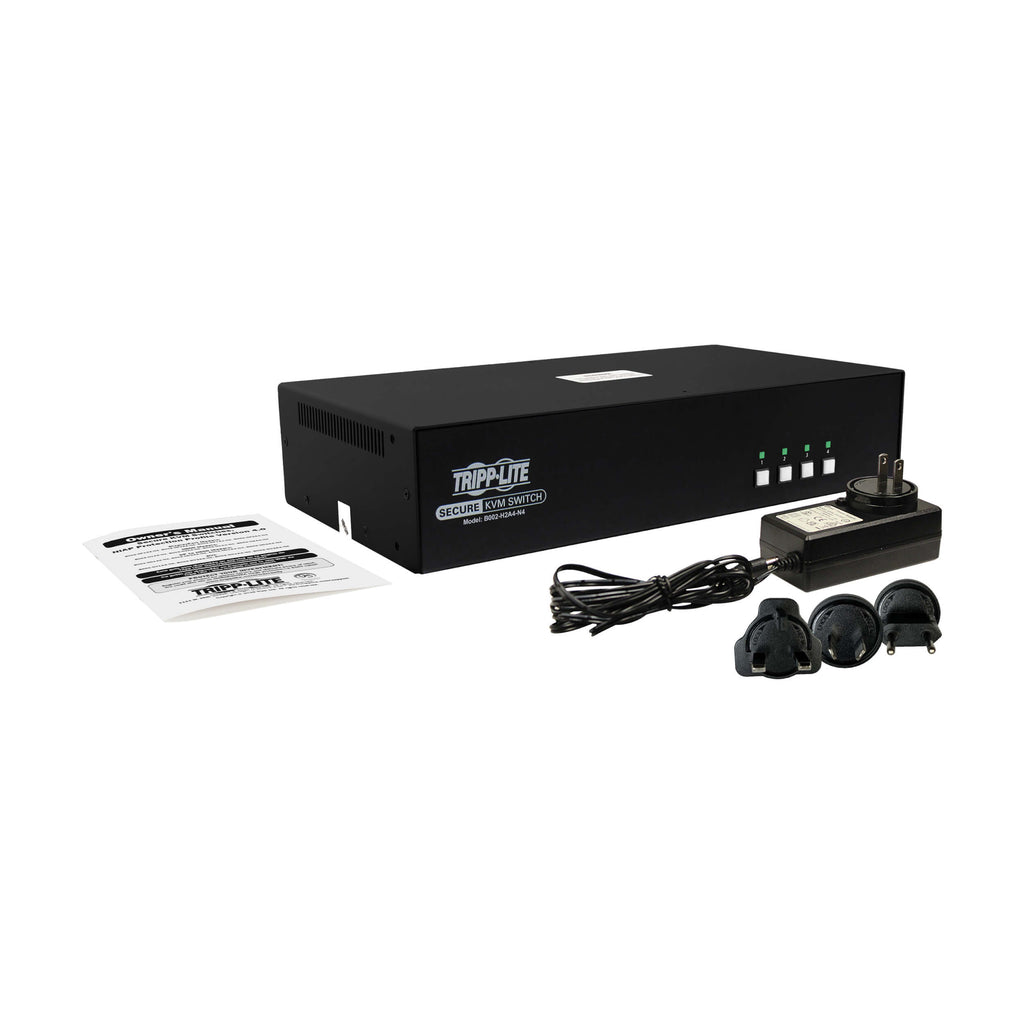

| Power Supply | External adapter with US, UK, EU, AU interchangeable plugs |
| Unit Dimensions (H x W x D) | 6.85 x 31.7 x 16.9 cm |
| Unit Weight | 1.91 kg (4.2 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0–80% non-condensing |
| Compliance | NIAP PP4.0, RoHS, CE, FCC, UKCA, NOM (Mexico) |
| Warranty | 3-year limited warranty |
