Description
The Tripp Lite B002-HD2AC4 is a high-security, NIAP PP3.0–certified KVM switch designed for government, military, healthcare, and financial environments where data isolation is critical. It securely controls up to four computers from a single dual-monitor HDMI console while preventing data leakage between systems.
Each port is electronically isolated to eliminate crosstalk, ensuring data flows only from peripherals to host systems. The switch supports dual-monitor 4K video at 3840 x 2160 (30 Hz) with secure video emulation and EDID learning for seamless switching without signal interruption. For enhanced authentication, a dedicated Common Access Card (CAC) port supports smart cards, scanners, and biometric devices.

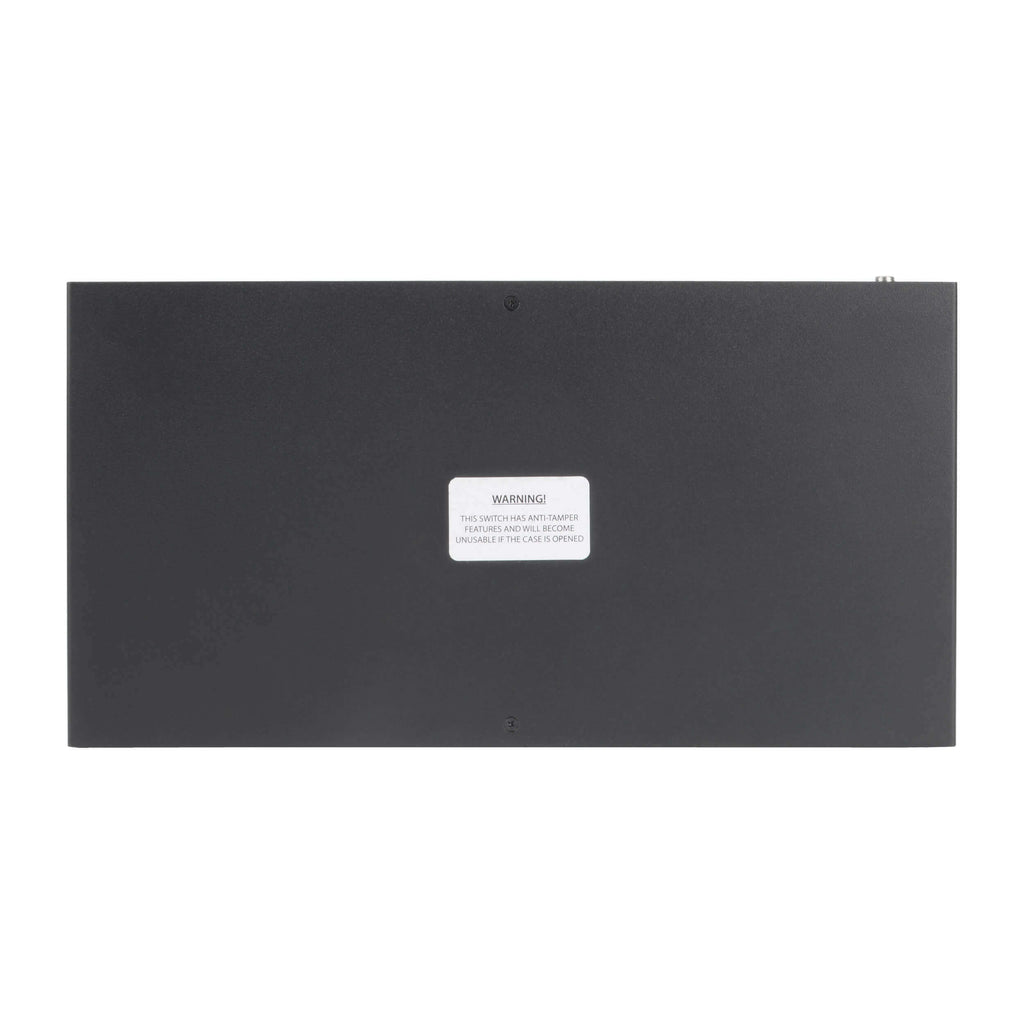

Anti-tamper protection disables the unit if the enclosure is breached, while restricted push-button switching (no hotkeys or OSD) further safeguards sensitive environments. TAA compliance makes this secure KVM switch suitable for federal procurement and regulated installations.
| Specification | Details |
|---|---|
| Brand | Tripp Lite by Eaton |
| Model Number | B002-HD2AC4 |
| KVM Type | Secure, NIAP PP3.0 Certified |
| Number of Computers Supported | 4 |
| Monitor Support | Dual Monitor |
| Console Video Interface | HDMI |
| Computer Video Interface | DisplayPort |
| Maximum Video Resolution | 3840 × 2160 @ 30 Hz |
| Color Depth | 36-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| Keyboard / Mouse Interface | USB |
| CAC / Smart Card Support | Yes |
| Port Switching Method | Push-button only |
| On-Screen Display (OSD) | No |
| USB Support | USB 1.1 / USB 2.0 |
| Audio Support | 3.5 mm analog audio |
| Anti-Tamper Protection | Yes |
| Operating Systems Supported | Windows, macOS, Linux |
| Power Input | AC Adapter (100–240V, 50/60 Hz) |
| Enclosure Material | Metal |
| Color | Black |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Compliance | NIAP PP3.0, TAA, FCC, CE, UKCA, RoHS |
| Warranty | 3-Year Limited Warranty |
