Description

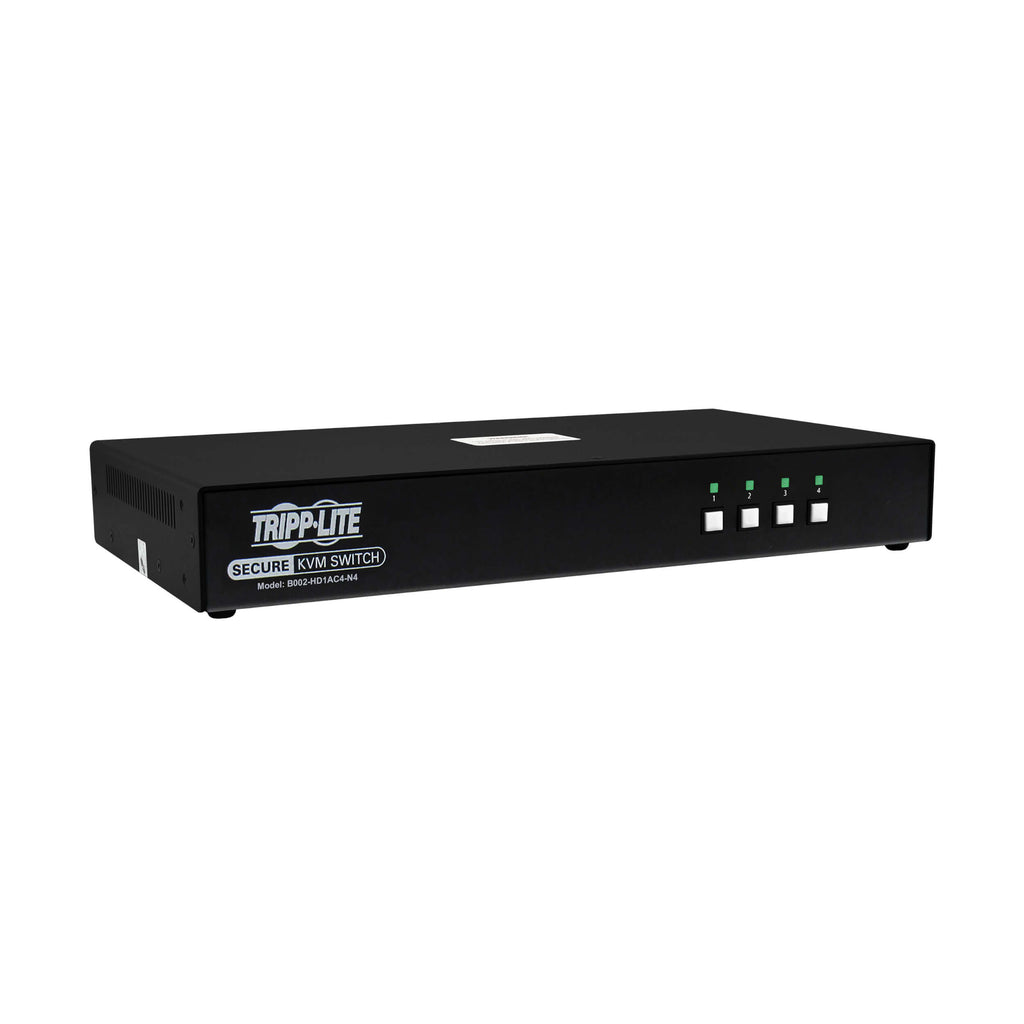

The Eaton Tripp Lite B002-HD1AC4-N4 is a 4-port secure KVM switch designed for highly sensitive environments that require strict data protection and isolation between connected systems. Certified to NIAP PP4.0 standards, this DisplayPort-to-HDMI switch enables users to safely manage up to four isolated computers using a single monitor, keyboard, and mouse — without any risk of cross-domain data leakage.
Featuring 4K UHD resolution support at 60Hz, this secure KVM is ideal for government, military, finance, and healthcare applications. It includes a Common Access Card (CAC) port for biometric and smart card authentication, automatic keyboard buffer clearing, and full USB device filtering to block unauthorized peripherals. Anti-tampering mechanisms disable the device if the housing is opened, ensuring the integrity of critical operations.
Compliant with the Trade Agreements Act (TAA), the B002-HD1AC4-N4 supports global deployment and comes with a 3-year limited warranty for long-term reliability and compliance.
| Category | Specification |
|---|---|
| Model Number | B002-HD1AC4-N4 |
| Type | 4-Port NIAP PP4.0-Certified Secure KVM Switch |
| Video Input / Output | DisplayPort (Input) to HDMI (Output) |
| Max Video Resolution | 3840 × 2160 @ 60Hz (4K UHD) |
| Color Depth / Chroma | 36-bit Deep Color / 4:4:4 Subsampling |

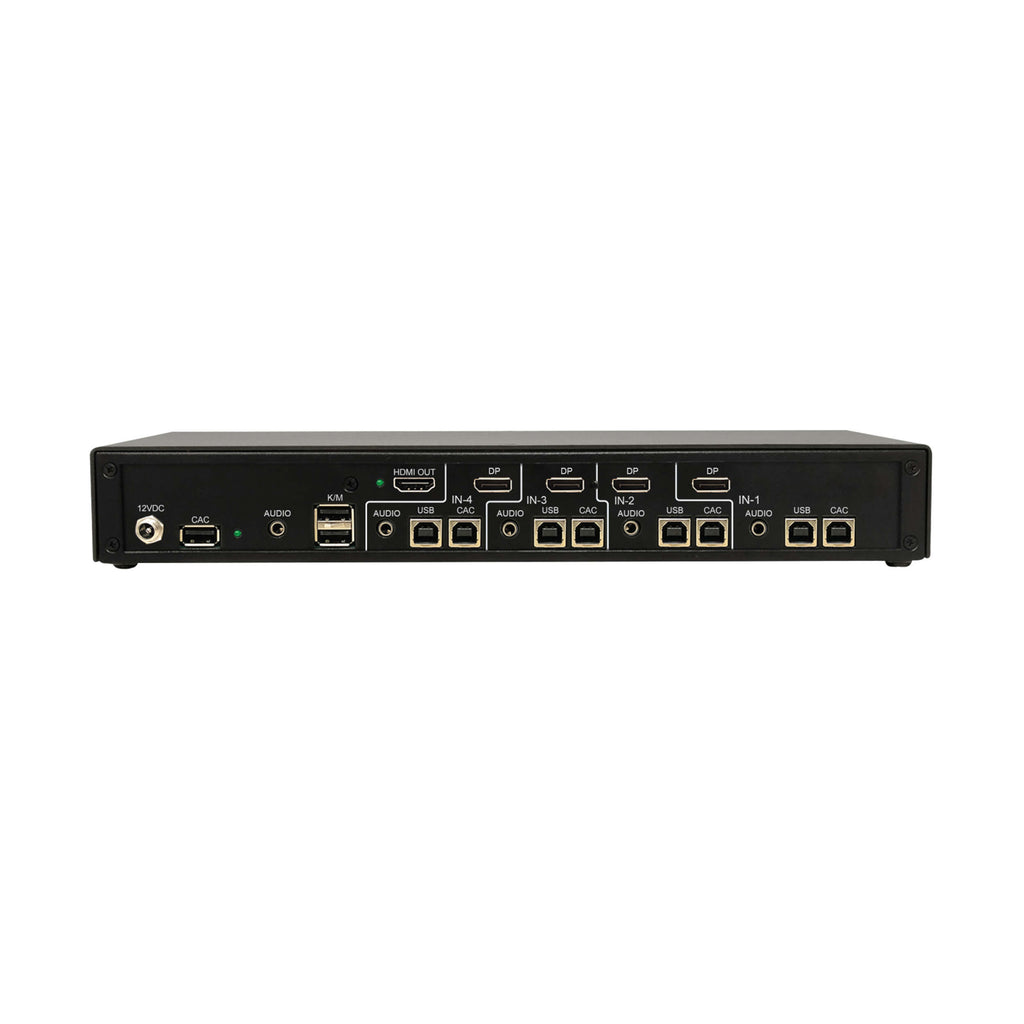

| Ports | 4 x HDMI (PC Input), 4 x USB Type-B, 4 x Audio 3.5mm |
| Console Ports | 1 x HDMI, 3 x USB Type-A, 1 x 3.5mm Audio |

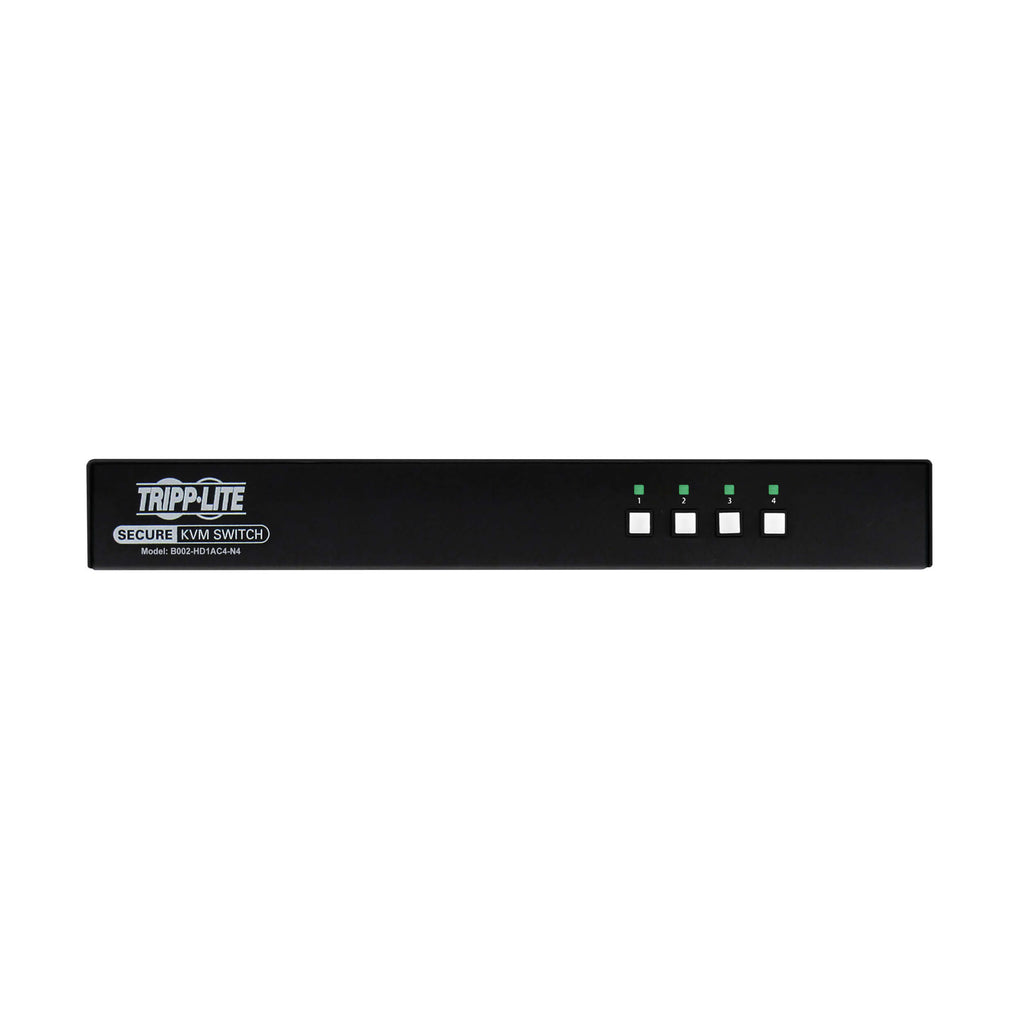

| Port Selection | Pushbutton Only (No OSD or Hotkeys) |
| Common Access Card (CAC) | Supported (for biometric and smart card readers) |
| Security Certification | NIAP PP4.0 / Common Criteria |
| Isolation Features | Discrete processing paths; keyboard buffer auto-clear; firmware lock |
| Anti-Tampering Protection | Internal tamper detection disables unit if opened |
| USB Support | USB 1.1 / 2.0 (up to 480 Mbps) |
| Audio Support | 3.5mm Stereo (input/output) |
| Power Input | 100–240V AC, 50/60Hz, 1.3A (External Adapter, 12V 3A Output) |
| Power Supply Heads Included | US, UK, EU, AU |
| Dimensions (H × W × D) | 4.47 × 31.92 × 17.02 cm |
| Weight | 4.2 lbs (1.91 kg) |
| Material | Metal (Black Finish) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Compliance | NIAP PP4.0, TAA, CE, FCC, UKCA, RoHS |
| Warranty | 3-Year Limited Warranty |

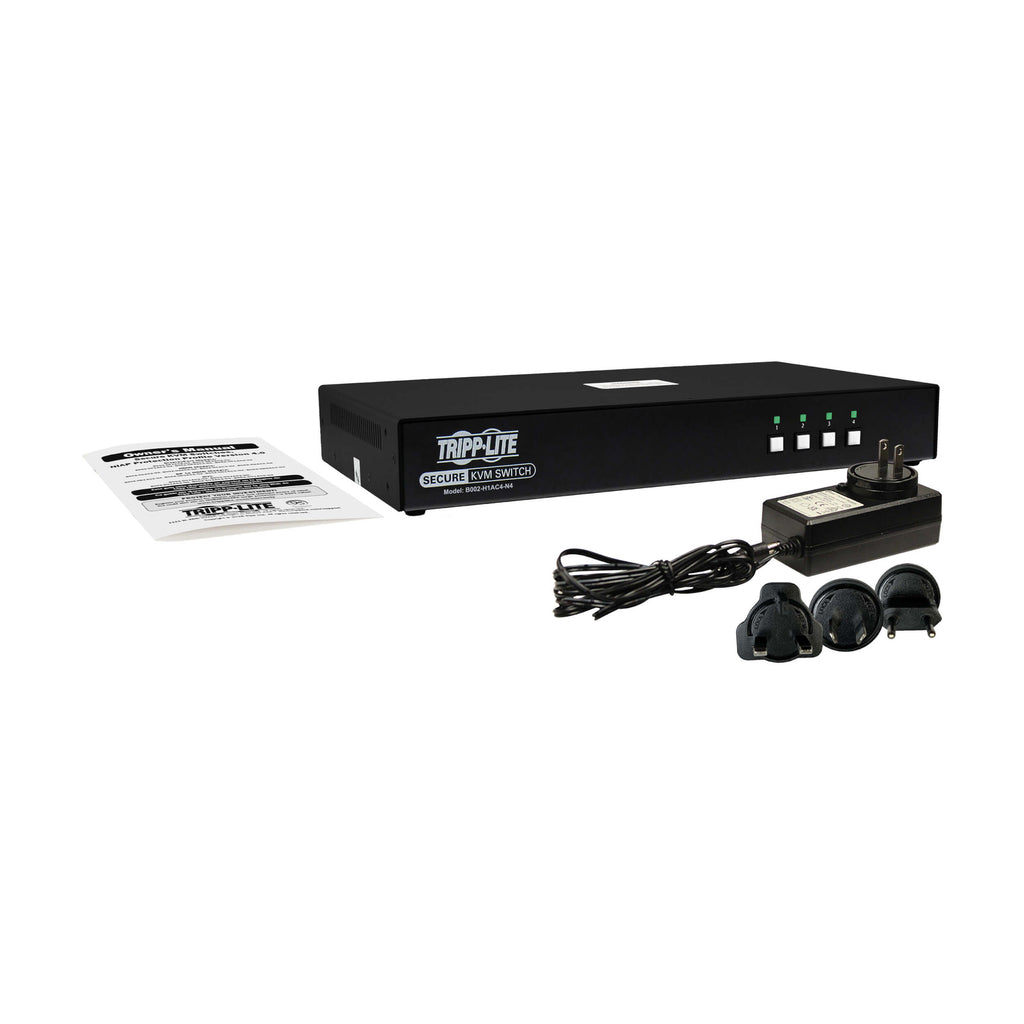

| Package Includes | B002-HD1AC4-N4 KVM Switch, Power Adapter (w/ 4 regional heads), Owner’s Manual |
