Description

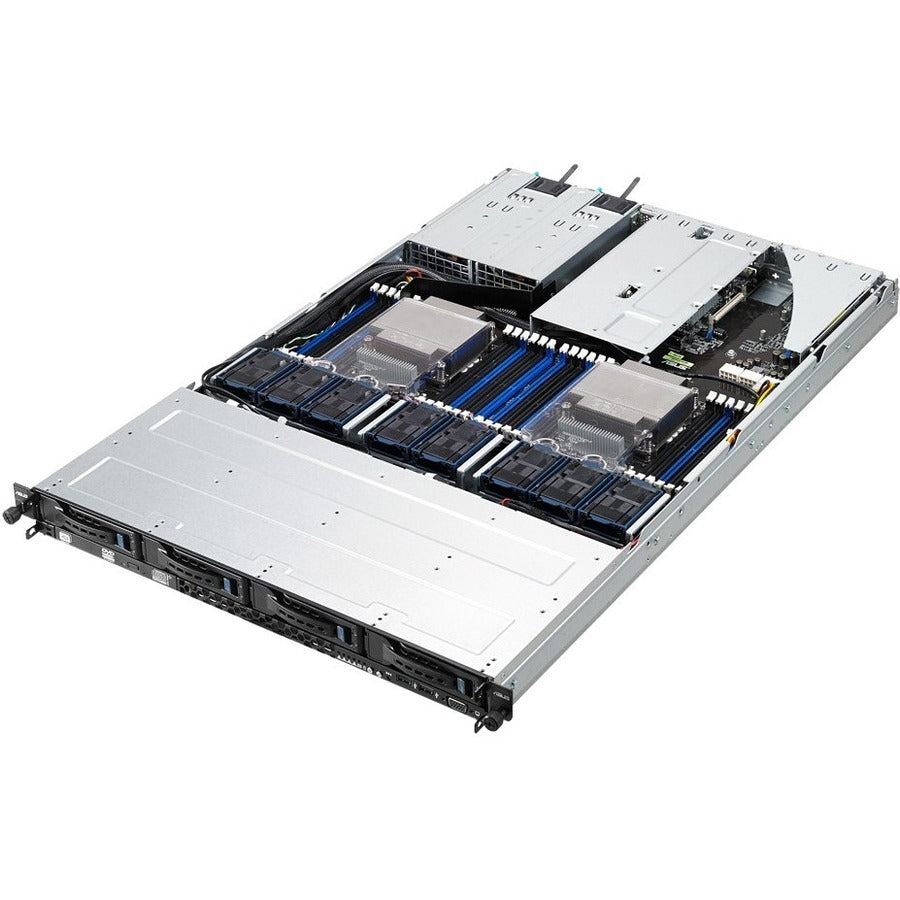

The ASUS RS700-E8-RS4 is a powerful 1U rack-mountable barebone server designed for high-density datacenter performance and efficiency. Featuring the Intel® C612 chipset and dual LGA 2011-v3 sockets supporting Intel® Xeon® processors, it delivers exceptional scalability and reliability for compute-intensive workloads. The server supports up to 1.5 TB of DDR4 2133 MHz memory across 24 DIMM slots, ensuring outstanding multitasking capability.
Its optimized airflow design ensures superior thermal efficiency, while integrated ASPEED AST2400 graphics, Gigabit Ethernet, and redundant 800 W power supplies provide enterprise-grade manageability and uptime. With support for both SATA and SAS RAID controllers, the RS700-E8-RS4 is built to handle demanding virtualization, database, and HPC applications with ease.
| Category | Specification |
|---|---|
| Model | ASUS RS700-E8-RS4 |
| Manufacturer Part Number | 90SV021A-M01LE0 |
| System Type | Server Barebone |
| Form Factor | Rack-mountable (1U) |
| Chipset | Intel® C612 |
| Processor Support | Dual Intel® Xeon® Processors |
| Processor Socket | LGA 2011-v3 |
| 64-bit Processing | Yes |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133 / PC4-17000 |
| Total Memory Slots | 24 DIMM slots |
| Storage Controller | Serial ATA / Serial Attached SCSI (SAS) |
| RAID Support | Yes |
| Graphics Controller | ASPEED AST2400 32 MB |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Bays | 4 × 3.5″ Bays + 1 × 5.25″ External Bay |
| Expansion Slots | 1 × PCIe x16, 3 × PCIe x8 |
| USB Ports | 2 × USB 3.0 |
| SATA Interfaces | 2 |
| SAS Interfaces | 2 |
| Operating System Support | Windows Server 2012 R2 / 2012 / 2008 R2, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Ubuntu Server |
| Power Supply | 2 × 800 W Redundant |
| Dimensions (H × W × D) | 1.7″ × 17.5″ × 27″ |
| Weight | Approx. 39.7 lb (Shipping: 42 lb) |
| Environmentally Friendly | Yes |
| Condition | New and Factory Fresh |
