Description

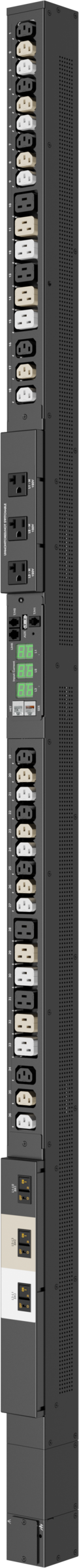

The Server Technology® PRO2 C2WG36TE-YCMFAM66 Switched POPS PDU delivers advanced outlet-level power control and monitoring to ensure reliable, efficient, and secure power distribution in high-density data centers. Featuring HDOT Cx hybrid outlets, it supports both C14 and C20 plugs in a single receptacle for maximum flexibility.
Equipped with PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing), it provides billing-grade accurate measurement of current, voltage, active power, apparent power, crest factor, power factor, and energy at both the inlet and outlet level. IT teams gain valuable visibility and control through network monitoring protocols (HTTP/HTTPS, SSH, Telnet, SNMP, LDAP, Syslog, etc.) and can receive real-time alerts via SNMP or email.
The hot-swappable network card, alternating-phase outlets for load balancing, UL/IEC-compliant branch circuit protection, and support for temperature/humidity monitoring make this PDU ideal for mission-critical IT environments. With its Star Multi-Linking capability, a single IP address can manage up to four PDUs, optimizing rack management and scalability.
Built for data center reliability, this PDU is rated for 60°C operation, includes flexible mounting options, and comes with Server Technology’s 2-year limited warranty, with extended support available.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Model | C2WG36TE-YCMFAM66 |
| Product Type | Switched POPS PDU |
| Outlets | 36 total outlets:• (24) x IEC 60320/C13 (≤ 12A @208V)• (12) x Cx hybrid C13/C19 (≤ 16A @208V)• (3) x NEMA 5-20R utility (≤ 16A @120V) |
| Input Voltage | 208V |
| Input Plug | NEMA L21-30P |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 8.6 kW |
| Phase | Three-phase |
| Branch Protection | UL 489 circuit breakers (20A trip, 3 branches, ≤16A each) |
| Measurement | PIPS® per inlet, POPS® per outlet; ±1% accuracy for current, voltage, power, and energy |
| Networking | 10/100/1000 Mbps Ethernet (RJ-45), RS-232, SNMPv2/v3, HTTPS, SSH, Telnet, Syslog, LDAP(S), RADIUS, TACACS+ |
| Environmental Support | 32°F to 140°F (0°C to 60°C), 8–90% RH non-condensing, ≤6,500 ft elevation |
| Dimensions | 70.0 in (H) x 2.2 in (W) x 2.5 in (D) / 1778 x 56 x 64 mm |
| Power Draw | < 10W unloaded |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Class A, CAN ICES-003 Class A |
| Color Options | Black, White, Red, Green, Blue, Yellow (for circuit designation) |
| Warranty | 2-Year Limited (Extended options available) |
