Description

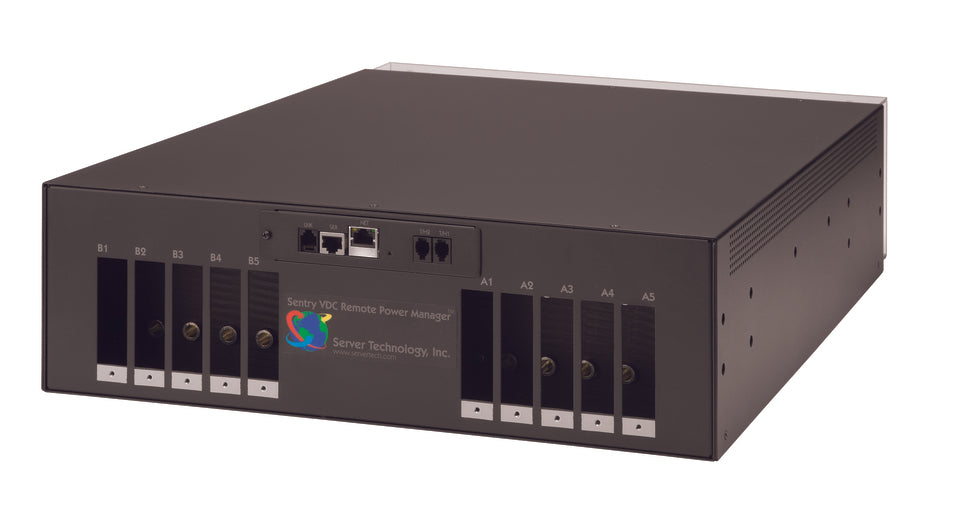

The Server Technology 48DCWC-10-2X300-E0NB -48VDC Switched PDU (Primary) delivers reliable DC power distribution with advanced outlet-level monitoring and control for critical infrastructure. Designed for high-density data centers, this -48VDC PDU provides 28.8kW power capacity, per-outlet current measurement, and secure remote management through web, CLI, and SNMP interfaces.
Built with hot-swappable network cards, star multi-linking for up to four circuits, and temperature/humidity monitoring via optional probes, this PDU ensures uptime, scalability, and operational efficiency. Each output is individually protected with fuse or breaker options and supports hot disconnect for safety. With NEBS Level 3 compliance, robust branch circuit protection, and a wide range of certifications, it is ideal for demanding telecom and enterprise environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (a Legrand brand) |
| Model / SKU | 48DCWC-10-2X300-E0NB (Primary) |
| Product Type | -48VDC Switched PDU |
| Input Voltage | -48V DC |

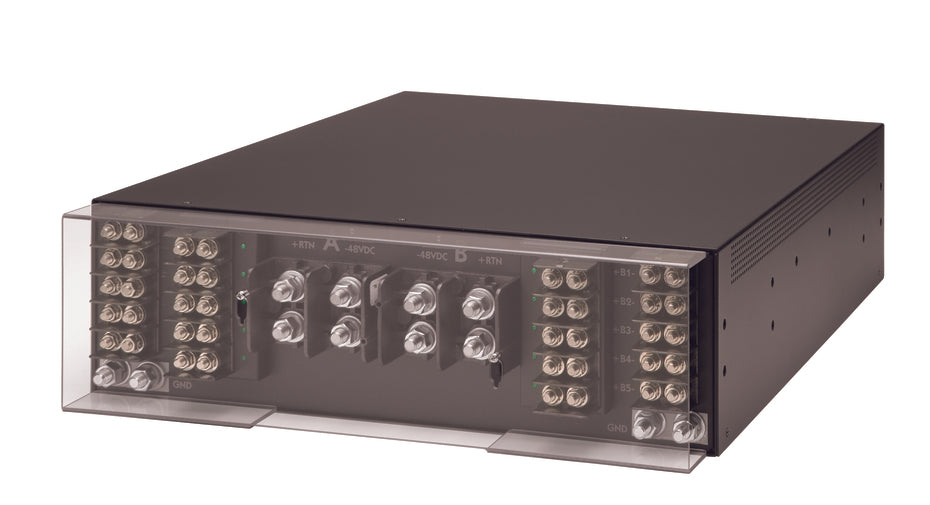

| Input Terminals | (2) x 3/8-16 dual-studs on 1 in. centers (300A max each) |
| Input Current | 600A rated |
| Power Capacity | 28.8 kW |
| Outputs | (10) x 1/4-20 dual-studs on 5/8 in. centers (125A max each) |
| Branch Circuit Protection | User-selectable Telpower fuses (10A–125A) or Carling bullet breakers (30A–100A) |
| Output Control | Per-outlet on/off switching; cycle power for rebooting devices |
| Output Monitoring | Per-outlet current measurement; alerts for overload conditions |
| Networking & Security | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial, SNMPv2/v3, SSHv2, HTTPS, LDAP, RADIUS, TACACS+ |
| Environmental Range | Operating: 32°F–122°F (0°C–50°C), 8–90% RH non-condensing; up to 6,500 ft elevation |
| Storage Range | -22°F–176°F (-30°C–80°C), 8–90% RH, up to 50,000 ft elevation |
| Power Consumption | < 10W unloaded |
| Physical Dimensions | 5.25 in H × 17.0 in W × 22.0 in D (134 × 432 × 559 mm) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CE, UKCA, RoHS, NEBS Level 3 |
| Warranty | 2-year limited parts & labor; extended support available |
| Optional Accessories | EMTH-2-10 probes, EMCU-1-1C environmental monitor, EMWS-1-1 water sensor, StartUp Stick™ |
| Series Support | Compatible with 48DCXC-10-2X300-E0NB (Link) PDU for redundant power feed |
