Description

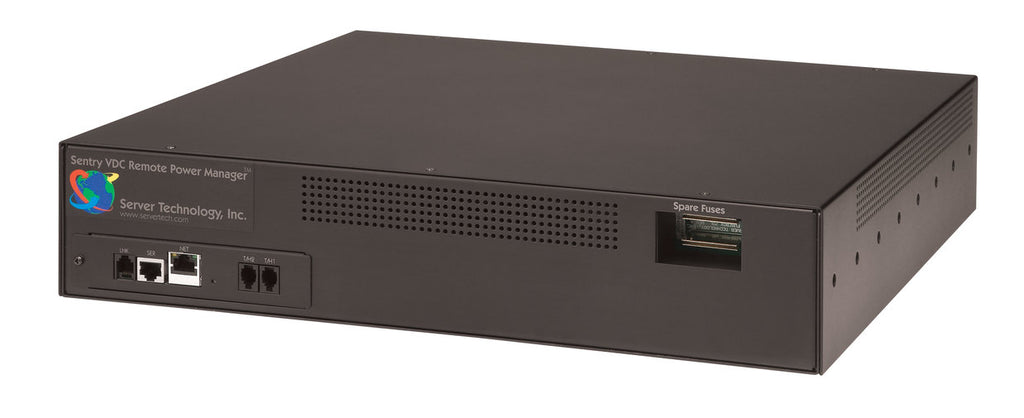

The Server Technology® PRO2 48DCWC-12-2X100-A1NB -48VDC Switched PDU delivers reliable DC power distribution with advanced outlet-level control and monitoring. Designed for telecom and data center environments, this unit enables secure access through Web, CLI, and SNMP interfaces, ensuring precise outlet power control and current measurement.
Featuring hot-swappable network cards for uninterrupted access, Star Multi-Linking to connect up to four circuits with one IP, and robust temperature/humidity monitoring via optional probes, it supports high-availability operations. Each outlet is fuse or breaker-protected with disconnect-rated circuit protection for safe hot disconnect.
With 12 output terminals supporting both low (10A) and high (70A) current loads, branch circuit protection options, and advanced communications security, this PDU is engineered to meet stringent global safety and EMC standards, including NEBS Level 3 compliance.
Ideal for demanding infrastructure, the 48DCWC-12-2X100-A1NB ensures scalable, monitored, and secure DC power distribution.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO2 |
| Model / SKU | 48DCWC-12-2X100-A1NB (Primary) |
| Product Type | -48VDC Switched PDU |
| Input Voltage | -48 VDC |
| Input Terminals | (2) x 1/4-20 dual-studs on 5/8 in. centers (100A max each) |
| Input Current | 200A (Rated 200A) |
| Input Power Capacity | 9.6 kW |

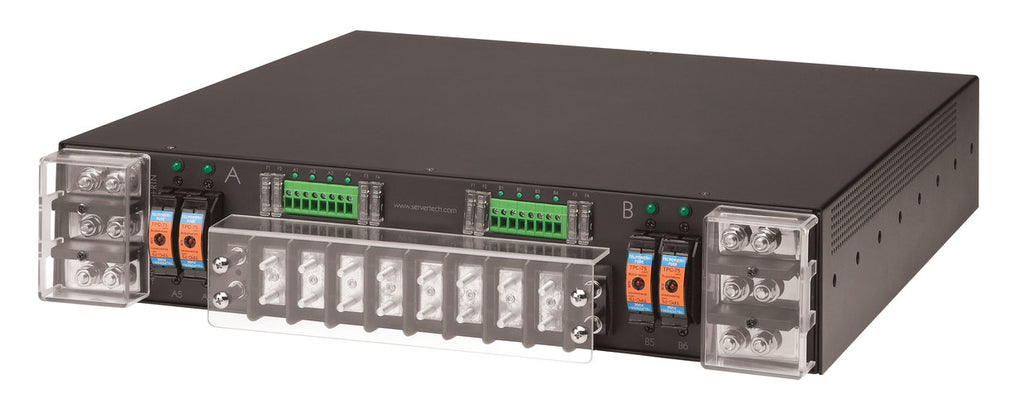

| Outputs | (8) x screw-down terminals (10A max)(4) x #10 dual-studs (70A max) |
| Branch Circuit Protection | GMT fuses included; user-selectable TPC fuses (10A–125A) |
| Network & Monitoring | HTTP/HTTPS, SSH, Telnet, SNMP, FTP/SFTP, SMTP, Syslog, LDAP(S), RS-232 |
| Hot-Swap Network Card | Supported; backup power via linked PDU |
| Environmental Monitoring | 2 external 10 ft (3m) T/H probes (optional), SNMP alerts & email notifications |
| Physical Dimensions | 3.5" H x 17.0" W x 16.0" D (89mm x 432mm x 407mm) |
| Operating Environment | 32°F to 122°F (0°C to 50°C), 8–90% RH, up to 6,500 ft / 2 km |
| Storage Environment | -22°F to 176°F (-30°C to 80°C), up to 50,000 ft / 15 km |
| Power Draw (Idle) | < 10W |
| Communications Ports | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial (RJ-45), Link (RJ-12) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CE, UKCA, RoHS, NEBS Level 3 |
| Measurement Accuracy | 10A outputs: ±5% (0.01 resolution)70A outputs: ±5% (0.1 resolution) |
| Optional Accessories | EMTH-2-10 T/H probe, EMCU-1-1C environmental monitor, EMWS-1-1 water sensor, KIT-SUS-01 StartUp Stick, mounting brackets |
| Warranty | Standard 2-year limited parts & labor (extended options available) |
