Description

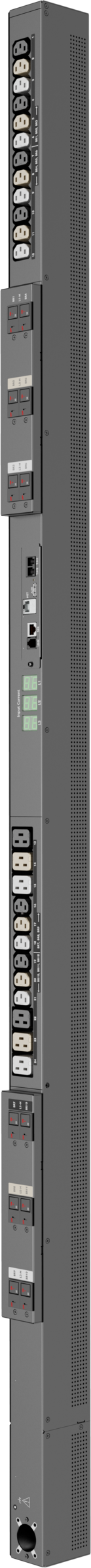

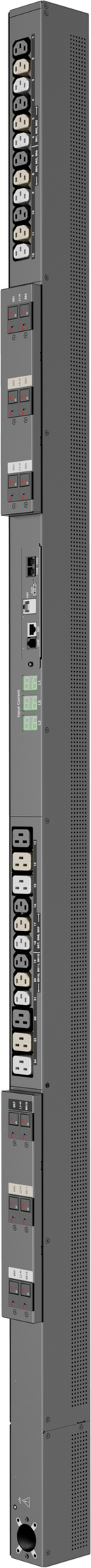

The Server Technology PRO1 Smart PDU C1S24TB-5QAE2566 delivers advanced power monitoring and reliable distribution for high-density data centers. Featuring 24 outlets (12 x IEC C13, 12 x HDOT Cx), it combines flexibility with future-ready hybrid C13/C19 outlets. With integrated PIPS® per-inlet power sensing, users gain precise billing-grade measurements of current, voltage, power, and energy.
Engineered for resiliency, the PDU supports star multi-linking, allowing up to four power circuits to be controlled with a single IP address. Network connectivity is seamless with hot-swappable cards and secure access via HTTPS, SSH, SNMP, LDAP, TACACS+, and RADIUS. The alternating-phase outlet layout optimizes load balancing and airflow, while built-in circuit breakers ensure UL-rated branch protection.
Ideal for modern data centers, this PDU also supports temperature and humidity monitoring, providing real-time environmental data to maintain uptime and prevent overloads.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO1 Smart |
| Model / SKU | C1S24TB-5QAE2566 |
| Form Factor | Vertical, 0U rack-mountable |
| Outlets | 12 × IEC 60320 C13 12 × HDOT Cx (C13/C19 hybrid) |
| Input Voltage | 415V, 3-phase |
| Input Plug | IEC 60309, 240/415V Wye, 60A, 3P+N+G, 6Hr |
| Input Current | 60A (48A rated) |
| Power Capacity | 34.5 kW |
| Branch Circuit Protection | UL 489 circuit breakers, 20A trip, 10 kAIC interrupt rating |
| Monitoring | PIPS® per-inlet power sensing (Current, Voltage, Power, Energy, Crest Factor, PF) |
| Network Interfaces | 10/100/1000 Mbps Ethernet, RS-232, Link Port (RJ-12) |
| Protocols Supported | HTTP/HTTPS, SNMPv2/v3, SSH, Telnet, LDAP/LDAPS, TACACS+, RADIUS, FTP/SFTP |
| Environmental Sensors | Supports up to 2 temperature/humidity probes (10ft) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Dimensions (HxWxD) | 70.0 in × 2.2 in × 3.0 in (1778mm × 56mm × 77mm) |
| Power Draw (Idle) | < 10W |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, ICES-003 Class A |
| Warranty | Standard 2-year limited (extended support available) |
