Description

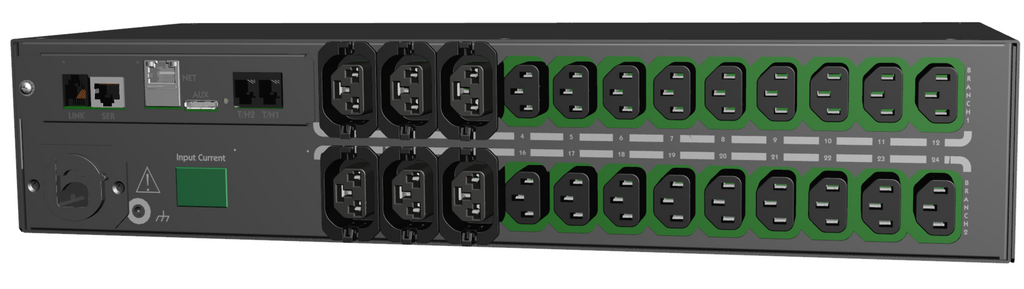

The Server Technology® PRO1 Smart PDU C1S24SP-EPAA4A6 delivers intelligent power distribution with advanced monitoring and protection for demanding data center environments. Featuring 24 outlets (18 x IEC C13 and 6 x hybrid Cx), this primary PDU offers reliable per-inlet power sensing (PIPS®) with billing-grade accuracy, hot-swappable network access, and support for environmental monitoring via optional probes.
With integrated network connectivity (HTTP/S, SNMP, SSH, Telnet, Syslog, and more), administrators gain real-time visibility into current, voltage, power, and environmental metrics. Its auto-flip LED current display, high-retention locking outlets, and compliance with UL/IEC 62368-1 branch circuit protection standards ensure safe and efficient operation. Rated for 60°C environments, this PDU is built for high-density, mission-critical deployments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc |
| Product Line | PRO1 |
| Product Model | C1S24SP-EPAA4A6 |
| Product Type | Smart PDU (Primary) |
| Input Voltage | 230V |
| Input Current | 32A |
| Frequency | 50/60 Hz |
| Input Plug | IEC 230V/32A 2P+PE 6Hr |
| Power Capacity | 7.3 kW |
| Outlets | 18 × IEC 60320 C13 (≤10A @ 230V), 6 × Cx hybrid C13/C19 (≤16A @ 230V) |

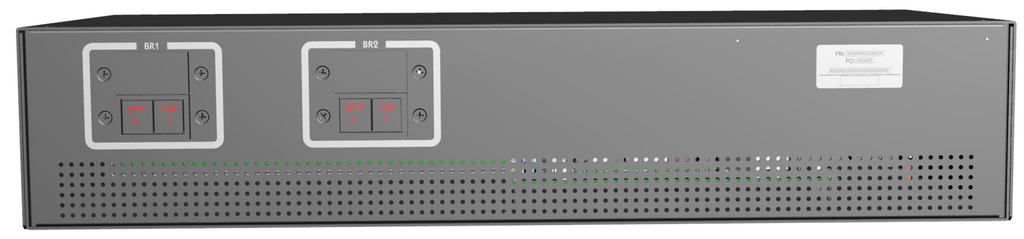

| Branch Circuit Protection | 2-pole, 20A trip circuit breakers (UL 489 compliant) |
| Monitoring | PIPS® (Per Inlet Power Sensing), Auto-flip LED current display |
| Network Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial |
| Protocols Supported | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, Syslog, FTP/SFTP, LDAP(S), RADIUS, TACACS+, IPv4/IPv6 |
| Environmental Support | 2 × Temperature/Humidity sensor inputs (optional probes) |
| Operating Range | 0°C to 60°C (32°F to 140°F), 8–90% RH, up to 6,500 ft elevation |
| Storage Range | -30°C to 80°C (-22°F to 176°F), 8–90% RH, up to 50,000 ft elevation |
| Dimensions (HxWxD) | 3.5 in × 17.2 in × 7.0 in (89 mm × 437 mm × 178 mm) |
| Certifications | EN/IEC 62368-1, CE, RoHS, EMC compliant |
| Warranty | 2-year limited parts & labor (extended options available) |
| Optional Accessories | EMTH-2-10 Temp/Humidity Probe, EMCU-1-1C Environmental Monitor, StartUp Stick™, mounting brackets |
