Description

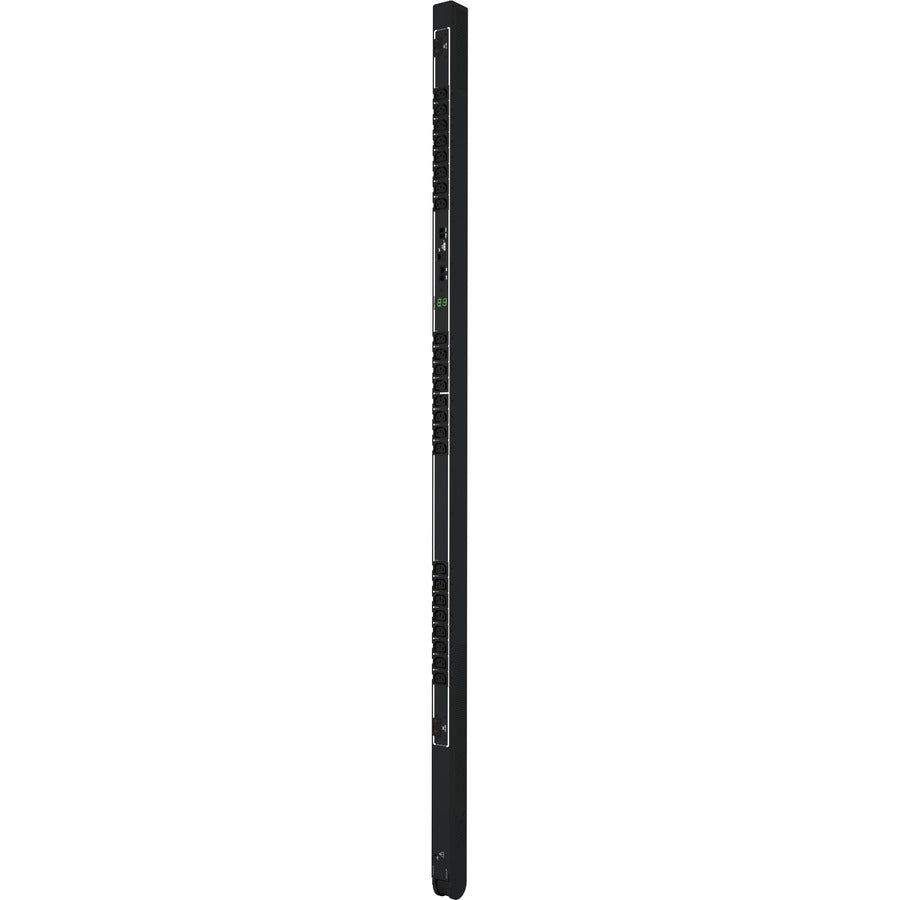

The Server Technology® PRO1 STV-4540K Switched PDU delivers advanced power distribution, monitoring, and control for high-density data center environments. Equipped with 24 IEC C13 outlets, this intelligent PDU provides billing-grade accurate Per Inlet Power Sensing (PIPS®) to track current, voltage, power, and energy. IT personnel gain full visibility and control with outlet-level switching, temperature/humidity monitoring (via optional probes), and networked access through HTTP(S), SNMP, SSH, and more.
Designed for maximum uptime and safety, the STV-4540K supports branch circuit protection, high retention locking outlets, and operation in environments up to 60°C. Its rotatable Power Pivot™ input cord, flexible mounting options, and color-coded circuit identifiers simplify deployment and cable management.
This model functions as a Primary unit and can link to up to three SEV-4540K expansion PDUs for redundant feeds, providing scalable, reliable power distribution without daisy-chain risks. Backed by Server Technology’s 2-year limited warranty, it is an ideal solution for enterprise data centers seeking precision, safety, and operational efficiency.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Series | PRO1 |
| Model | STV-4540K |
| Product Type | Switched PDU (Primary) |
| Outlets | 24 × IEC 60320 C13 (≤10A @230V L-N) |
| Input Voltage | 230V |
| Input Plug | IEC 230V/32A 2P+PE 6Hr |
| Input Current | 32A |
| Power Capacity | 7.3 kW |
| Branch Circuit Protection | 2 × 20A trip magnetic-hydraulic breakers (UL 489 compliant) |
| Monitoring | PIPS® Per Inlet Power Sensing (current, voltage, power, energy) |
| Control | Outlet-level switching, reboot, group control |
| Network Interfaces | 10/100/1000 Mbps Ethernet, RS-232 serial |
| Protocols Supported | HTTP/HTTPS, SSH, Telnet, SNMP v2c/v3, LDAP(S), RADIUS, TACACS+, Syslog |
| Environmental Range | Operating: 0°C to 60°C / Storage: -30°C to 80°C |
| Dimensions (H×W×D) | 69.0" × 1.75" × 2.25" (1753 × 45 × 58 mm) |
| Mounting | Standard button mounts + custom bracket support |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-Year Limited Parts & Labor (Extended support optional) |
