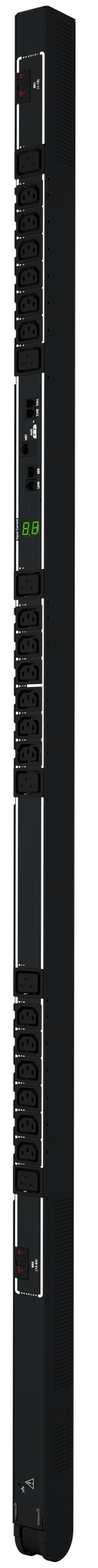

Description
The Server Technology® PRO1 STV-4541C Switched Primary PDU delivers advanced outlet-level control and real-time monitoring to optimize power management in data centers. Featuring PIPS® (Per Inlet Power Sensing) technology, it provides billing-grade accurate measurements of current, voltage, power, and energy consumption. With support for temperature and humidity probes, auto-flip current displays, and network monitoring through HTTP(S), SSH, SNMP, and more, this PDU ensures safe, efficient, and scalable power distribution.
Its Star Multi-Linking capability allows linking of up to four circuits under a single IP address, while hot-swappable network cards ensure redundancy. High-retention locking outlets, branch circuit protection, and a 60°C operating rating make it ideal for high-density rack deployments. Designed with flexible mounting options and a rotatable Power Pivot™ cord, the STV-4541C enables consistent, reliable power delivery with maximum deployment flexibility.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO1 Switched PDU |
| Model / SKU | STV-4541C (Primary) |
| Input Voltage | 208V, 50/60Hz |
| Input Plug / Connector | NEMA L6-30P |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 5.0 kW |
| Outputs | (18) IEC 60320 C13 (≤12A @208V, 15A Peak) (6) IEC 60320 C19 (≤16A @208V, 20A Peak) |
| Branch Circuit Protection | UL 489 2-pole, 20A magnetic-hydraulic breakers (2x branch), ≤16A |
| Network & Monitoring | HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, Syslog, LDAP(S), RADIUS, TACACS+, RS-232 serial |
| Environmental Monitoring | Supports up to 2x temperature/humidity probes (10 ft) |
| Physical Dimensions | 69.0 in H × 1.75 in W × 2.25 in D (1753 × 45 × 58 mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (Extended options available) |
| Special Features | Hot-swap network card, Auto-flip current display, High-retention locking outlets, Power Pivot™ cord, Flexible mounting |
| Optional Accessories | EMTH-2-10 Temp/Humidity probe, EMCU-1-1C Environmental Monitor, StartUp Stick™, mounting brackets, cable retention devices |
