Description

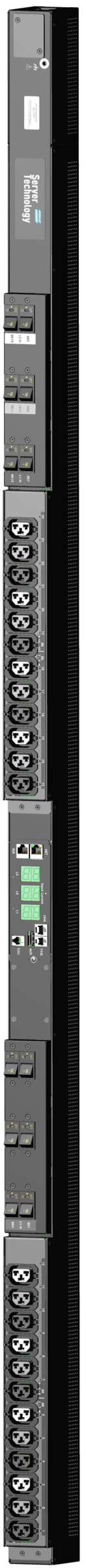

The Server Technology® PRO2 C2WG24TB-5QCD27T0 is a high-density, intelligent Switched POPS PDU designed for modern data centers requiring reliable power distribution, advanced monitoring, and precise control. Featuring 24 HDOT Cx outlets, this hybrid design accommodates both C14 and C20 plugs, ensuring maximum flexibility.
Built with PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) technology, the unit delivers billing-grade measurement accuracy at both inlet and outlet levels. IT teams can monitor current, voltage, power, crest factor, and energy usage with precision.
The PRO2 PDU supports network monitoring through HTTP(S), SNMP, SSH, LDAP(S), Syslog, and more. With outlet-level switching, administrators can remotely power cycle servers or disable unused receptacles. Enhanced with temperature/humidity monitoring, branch current monitoring, and circuit protection, this PDU offers enterprise-class power control.
Its 60A 3-phase IEC 60309 input plug supports up to 34.5 kW of power, while alternating-phase outlet distribution simplifies load balancing and improves airflow. Designed for high-density racks, it is UL tested for safe operation in 60°C environments and supports flexible mounting options.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Product Line | PRO2 |
| Model / SKU | C2WG24TB-5QCD27T0 |
| PDU Type | Switched POPS (Per Outlet Power Sensing) |
| Input Voltage | 415V, 50/60Hz |
| Input Plug | 240/415V Wye 60A IEC 60309, 3P+N+G, 6Hr |
| Input Current | 60A (48A rated) |
| Power Capacity | 34.5 kW |
| Outlets | 24 × HDOT Cx (≤16A @240V L-N, 20A Peak) |
| Branch Circuit Protection | 12 × 20A 1-pole breakers (UL 489, CSA C22.2 No. 5, IEC/EN 60947-2) |
| Network Monitoring | HTTP(S), SSH, Telnet, SNMPv2c/v3, Syslog, LDAP(S), RS-232, FTP/SFTP, SMTP |
| Communications Ports | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial, link port, dual T/H sensor inputs |
| Dimensions | 70.0 in (H) × 2.2 in (W) × 3.0 in (D) (1778 × 56 × 77 mm) |
| Environmental | Operating: 0°C to 60°C, Storage: –30°C to 80°C |
| Mounting Options | Standard button mounts, custom brackets available |
| Certifications | UL 62368-1, CSA 62368-1, FCC Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended options available) |
