Description

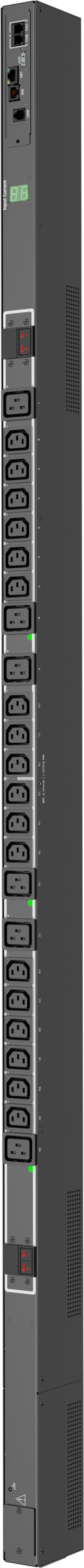

The Server Technology® PRO2 Switched POPS PDU (C2WG24VT-2CBA1MC1) delivers advanced outlet-level monitoring, control, and protection for high-density data centers. Designed with integrated PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) technology, it provides billing-grade accurate measurements of current, voltage, power, crest factor, and energy usage at both inlet and outlet levels.
Built for reliability and scalability, this Primary PDU can connect up to three linked units, offering centralized management via a single IP address. Featuring outlet-level control, branch current monitoring, hot-swap network cards, and support for temperature and humidity probes, it enables IT teams to optimize rack power distribution while reducing risks of overloads.
With a 5.0 kW power capacity, 24 total outlets (18 x C13, 6 x C19), and high retention locking receptacles, this PDU is ideal for enterprise and colocation environments seeking efficiency, visibility, and uptime assurance.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Product Type | Switched POPS PDU (Primary) |
| Model / SKU | C2WG24VT-2CBA1MC1 |
| Input Voltage | 208V |
| Input Plug | NEMA L6-30P |
| Input Current | 30A (24A rated) |
| Power Capacity | 5.0 kW |
| Outlets | 18 × IEC 60320 C13, 6 × IEC 60320 C19 |
| Receptacle Features | High retention locking outlets, P-Lock cord compatible |
| Branch Protection | UL 489 compliant magnetic-hydraulic breakers, 20A trip |
| Monitoring Technologies | PIPS® per inlet, POPS® per outlet, branch monitoring |
| Network Access | Ethernet (10/100/1000 Mbps), RS-232 serial, SNMP v2/v3, HTTP/HTTPS, SSH, Telnet |
| Environmental Monitoring | Supports up to 2 temperature/humidity probes (optional) |
| Dimensions (H × W × D) | 64.0 in × 1.75 in × 3.5 in (1626 × 45 × 89 mm) |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Storage Temperature | -22°F to 176°F (-30°C to 80°C) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (extended options available) |
