Description

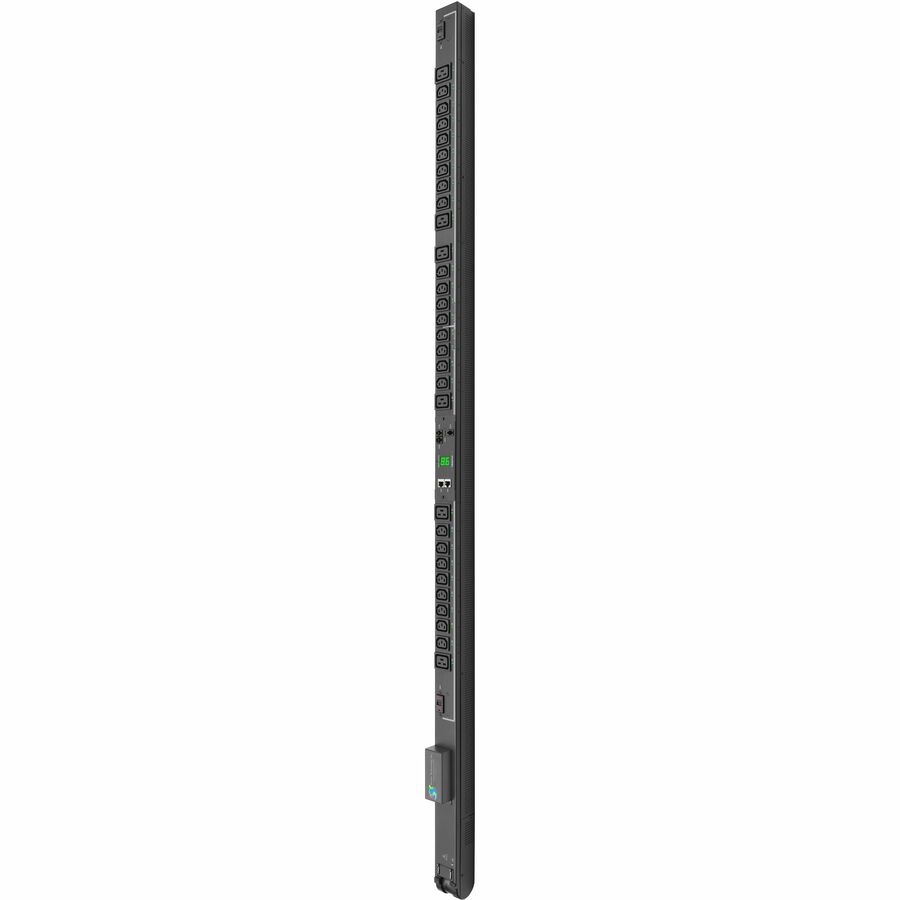

The Server Technology® PRO2 STV-4501K Switched PDU (Primary) delivers advanced power distribution, monitoring, and control for high-density data center environments. Equipped with PIPS® (Per Inlet Power Sensing) technology, it provides accurate billing-grade measurement of current, voltage, active power, power factor, and energy usage. This unit allows IT teams to manage power safely and efficiently, prevent overloads, and optimize load balancing.
With features such as network monitoring, hot-swap network cards, outlet-level switching, and support for up to three linked expansion PDUs, the STV-4501K ensures scalability and redundancy. Built for reliability, it operates in temperatures up to 60°C, includes high retention locking outlets, and supports SNMP-based alerts for proactive power management. Flexible mounting and multiple color-coded chassis options simplify deployment and circuit identification in any facility.
Ideal for enterprises and colocation facilities, the STV-4501K combines robust power distribution with granular visibility and control to maximize uptime, efficiency, and safety.
| Category | Details |
|---|---|
| Brand | Server Technology (Legrand) |
| Product Line | PRO2 Switched PDU |
| Model / SKU | STV-4501K (Primary) |
| Input Voltage | 230V |
| Input Current | 32A |
| Input Plug | IEC 230V/32A 2P+PE 6Hr |
| Power Capacity | 7.3 kW |
| Frequency | 50/60 Hz |
| Outlets | (24) x IEC 60320 C13 (≤10A @ 230V L-N)(6) x IEC 60320 C19 (≤16A @ 230V L-N) |
| Branch Circuit Protection | UL 489 rated 2-pole, 20A trip circuit breakers (≤16A, 5 kAIC interrupt rating) |
| Networking & Monitoring | HTTP/HTTPS, SSH, Telnet, SNMP v2c/v3, LDAP(S), RADIUS, TACACS+, Syslog, (S)FTP |
| Management Interfaces | Web GUI, CLI, RS-232 Serial, 10/100/1000 Mbps Ethernet |
| Sensors Supported | 2x external 10’ temperature/humidity probes (SNMP alerts and email notifications) |
| Physical Dimensions | 69.0 in (1753 mm) H × 2.2 in (56 mm) W × 2.3 in (59 mm) D |
| Operating Environment | 32°F to 140°F (0°C to 60°C), 8–90% RH non-condensing, up to 6,500 ft (2 km) |
| Storage Environment | -22°F to 176°F (-30°C to 80°C), up to 50,000 ft (15 km) |
| Certifications | EN/IEC 62368-1, CE Mark, UKCA, RoHS, EMC compliance (EN 55032/55035, IEC 61000-3-2/-3) |
| Warranty | 2-year limited parts & labor (extended options available) |
| Optional Accessories | Temperature/humidity probes, environmental monitors, PRO2 Link kits, StartUp Stick™, cable retention devices |
