Description

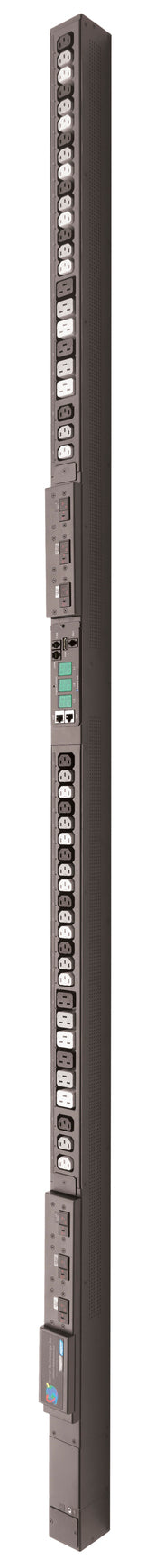

The Server Technology PRO2 C2WG48TE-YQME2M99 Switched POPS PDU is designed for high-density data center environments requiring precision monitoring and remote power control. Featuring PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) technologies, this PDU delivers billing-grade measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at both inlet and outlet levels.
With HDOT Cx outlets that accept both C14 and C20 plugs, branch circuit protection, and alternating-phase outlets for balanced power distribution, this unit enhances reliability and airflow efficiency. Network access is supported through a variety of protocols (HTTP(S), SSH, SNMP, Telnet, and more) and remains protected by a hot-swappable network card.
The PRO2 Primary model can link with up to three expansion units, providing flexible scalability under one IP address. With its robust design, tested for 60 °C operating conditions, and backed by Server Technology’s two-year limited warranty, the C2WG48TE-YQME2M99 is ideal for mission-critical rack power distribution.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc. |
| Brand | Server Technology |
| Product Line | PRO2 |
| Model / Part Number | C2WG48TE-YQME2M99 |
| Product Type | Switched POPS PDU |
| Input Voltage | 208 V, 50/60 Hz |
| Input Plug | IEC 60309 3P+N+G, 60A (9Hr) |
| Input Current (Rated) | 48 A |
| Input Current (Max) | 60 A |
| Power Capacity | 17.3 kW |
| Outlets | 30 × IEC 60320 C13 (≤12A @208V, 15A peak) 18 × HDOT Cx hybrid outlets (≤16A @208V, 20A peak) |
| Outlet Features | Alternating-phase, outlet-level switching, POPS® sensing |
| Branch Circuit Protection | UL 489 magnetic-hydraulic breakers (6× 20A trip, ≤16A) |
| Monitoring | PIPS® inlet sensing, POPS® outlet sensing, per-branch current monitoring |
| Network & Security | HTTP/HTTPS, SNMP v2c/v3, SSH, Telnet, FTP/SFTP, LDAP(S), TACACS+, RADIUS |
| Environmental Monitoring | Supports up to 2 external T/H probes (SNMP/email alerts) |
| Physical Dimensions | 80.0" H × 2.2" W × 2.5" D (2032 × 56 × 64 mm) |
| Operating Conditions | 0–60 °C, 8–90% RH non-condensing, up to 6,500 ft |
| Storage Conditions | -30–80 °C, 8–90% RH non-condensing, up to 50,000 ft |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended options available) |
